Home › Mazda › 2004 › MX-5 Miata Base, Standard › Repair and Diagnosis › Engine Performance › System › On-Board Diagnostic (Engine Control System BP, BP With TC] › DTC P2504: Battery Overcharge › Notes

DTC P2504: Battery Overcharge: Notes

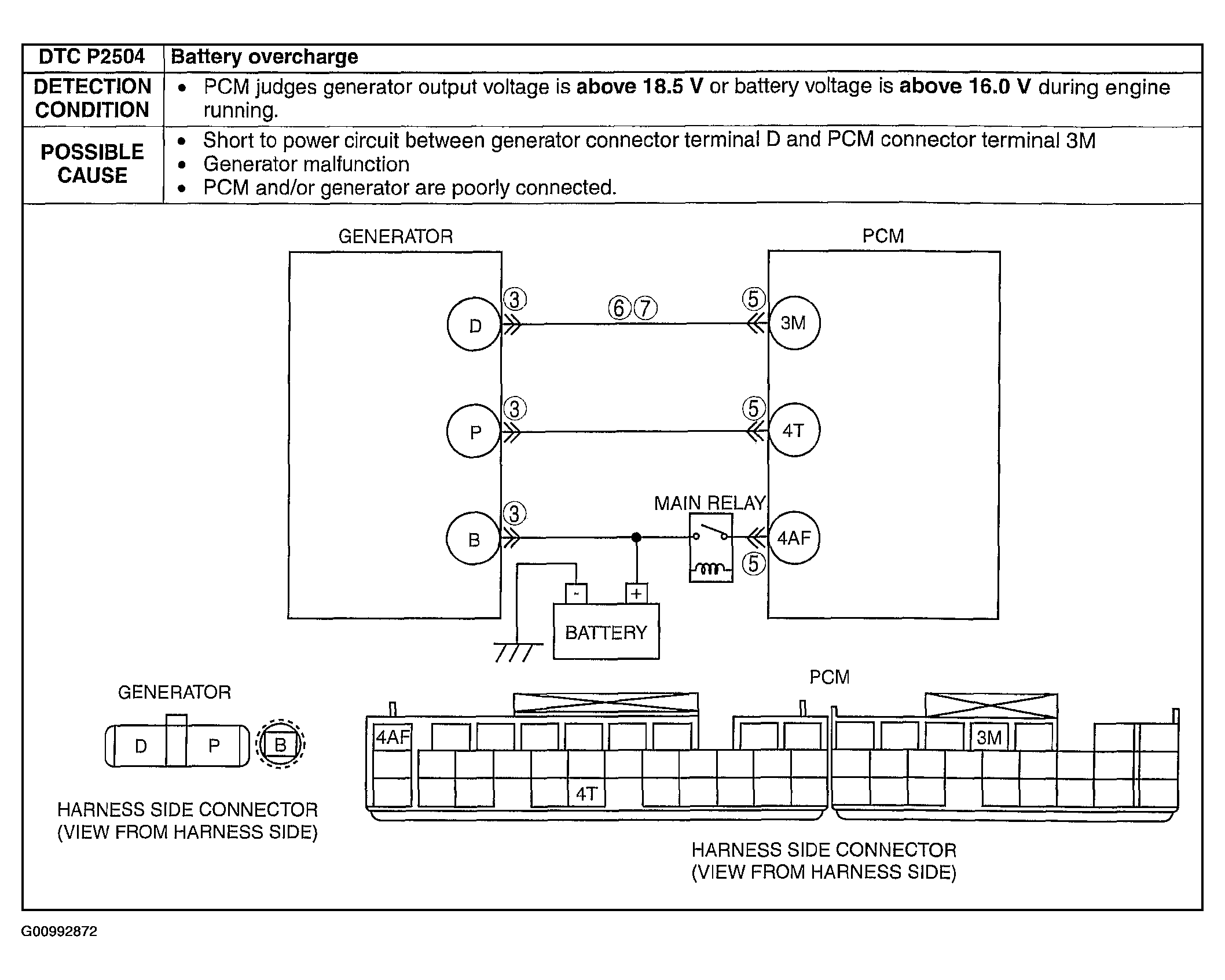

Fig 1: Possible Causes - DTC P2504 [BP, BP With TC]
G00992872Courtesy of MAZDA MOTORS CORP.
