Diagnostic Monitoring Test Result

• The purpose of this test mode is to confirm the result of OBD-II monitor diagnostic test results. The result values which is stored when particular monitor is completed, are displayed. If the monitor is not completed, initial value is displayed.

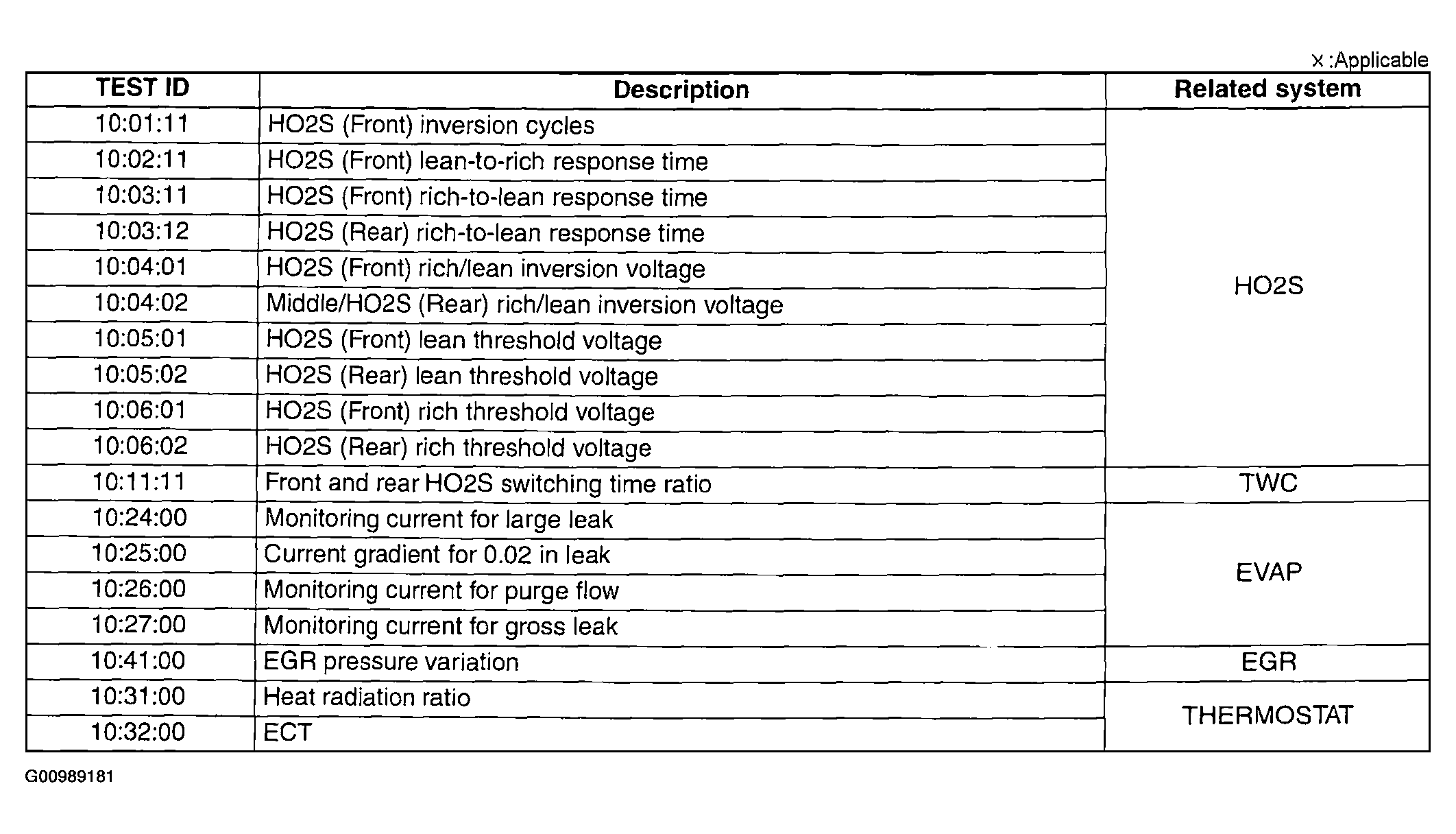

Fig 1: Diagnostic Monitoring Test Results Description Table

Courtesy of MAZDA MOTORS CORP.
