Symptom Troubleshooting (Engine Control System BP, BP With TC]
›
No. 18 Cooling System Concerns-Runs Cold
›
Diagnostic Procedure
Diagnostic Procedure

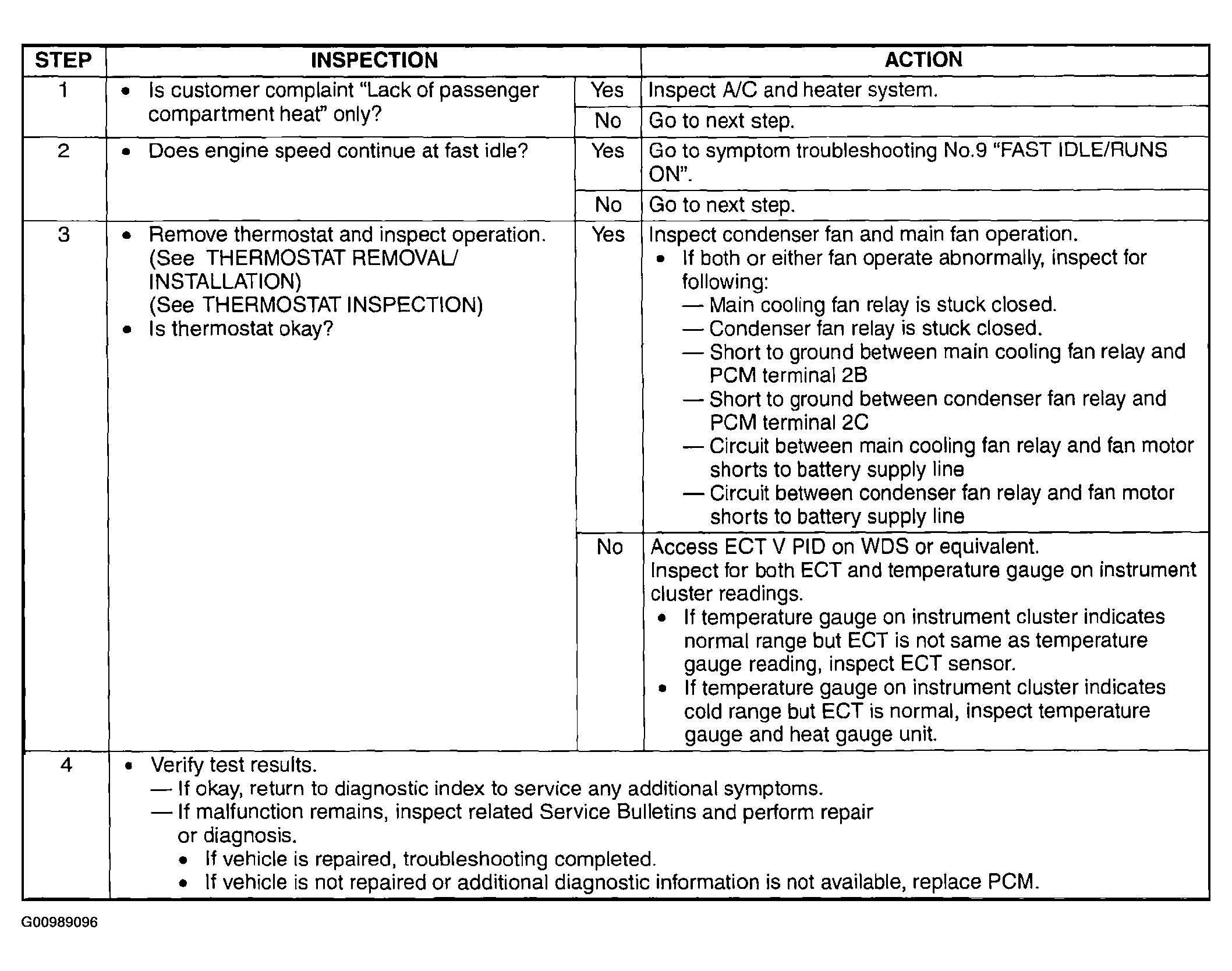

Fig 1: Diagnostic Procedure - No. 18 Cooling System Concerns-Runs Cold [BP, BP With TC] (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
