Engine Speed Sensing Power Steering Location Index

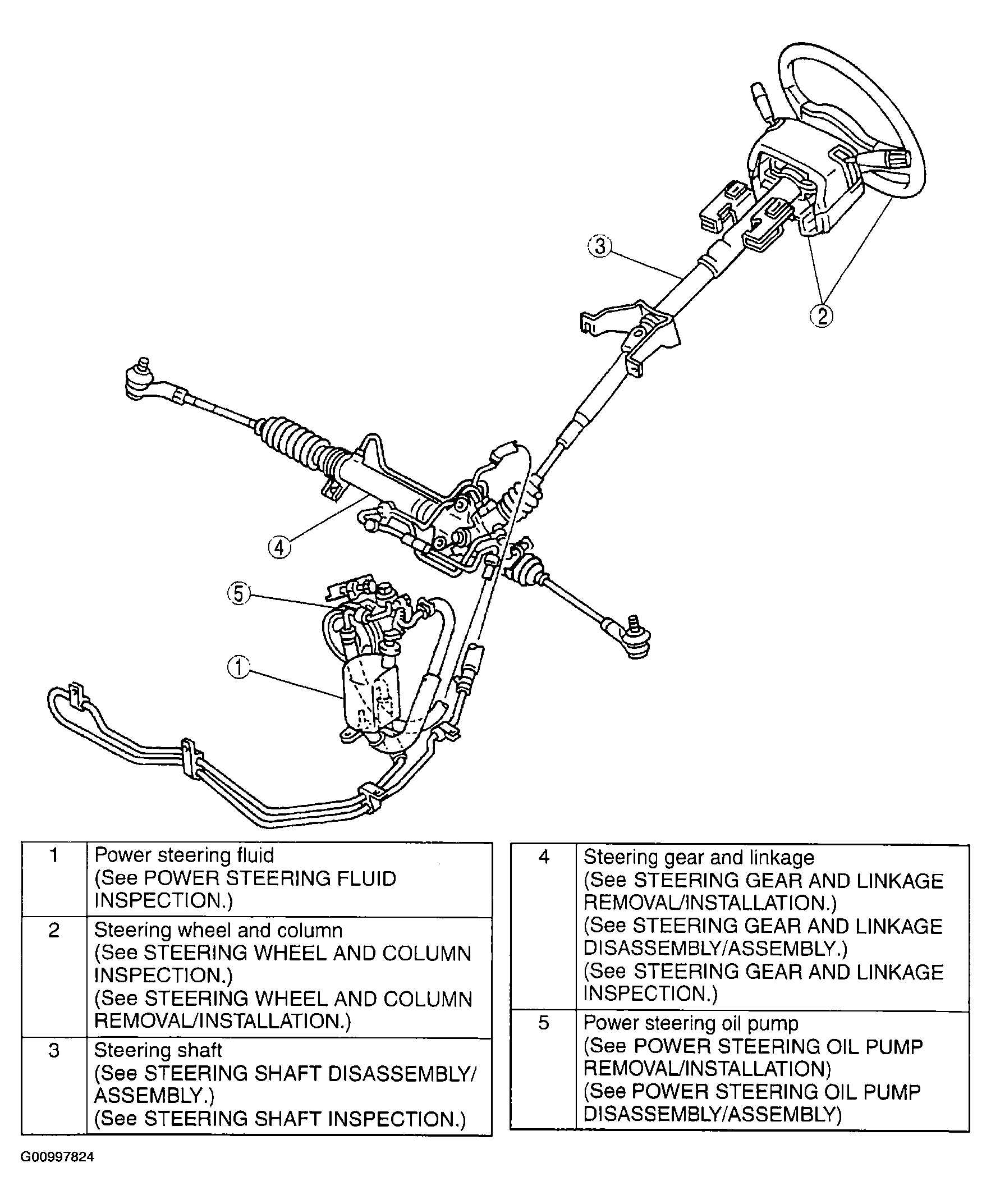

Fig 1: Locating Engine Speed Sensing Power Steering Components
G00997824Courtesy of MAZDA MOTORS CORP.
