Steering Gear And Linkage Disassembly/Assembly: Notes

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

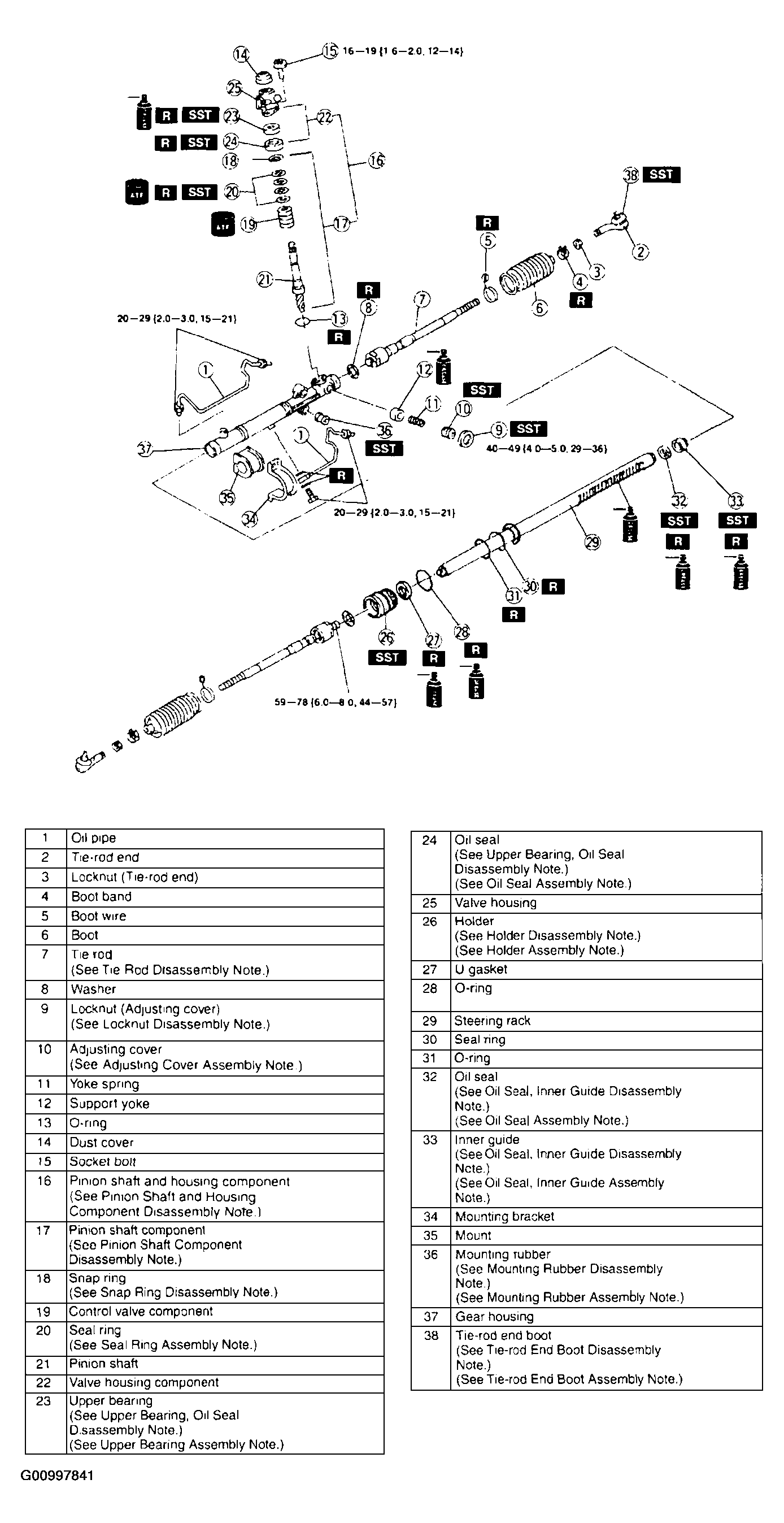

   Fig 1: Exploded View Of Steering Gear & Linkage

   Courtesy of MAZDA MOTORS CORP.
