Transmission/Transaxle Technical Data
Transmission/Transaxle Technical Data

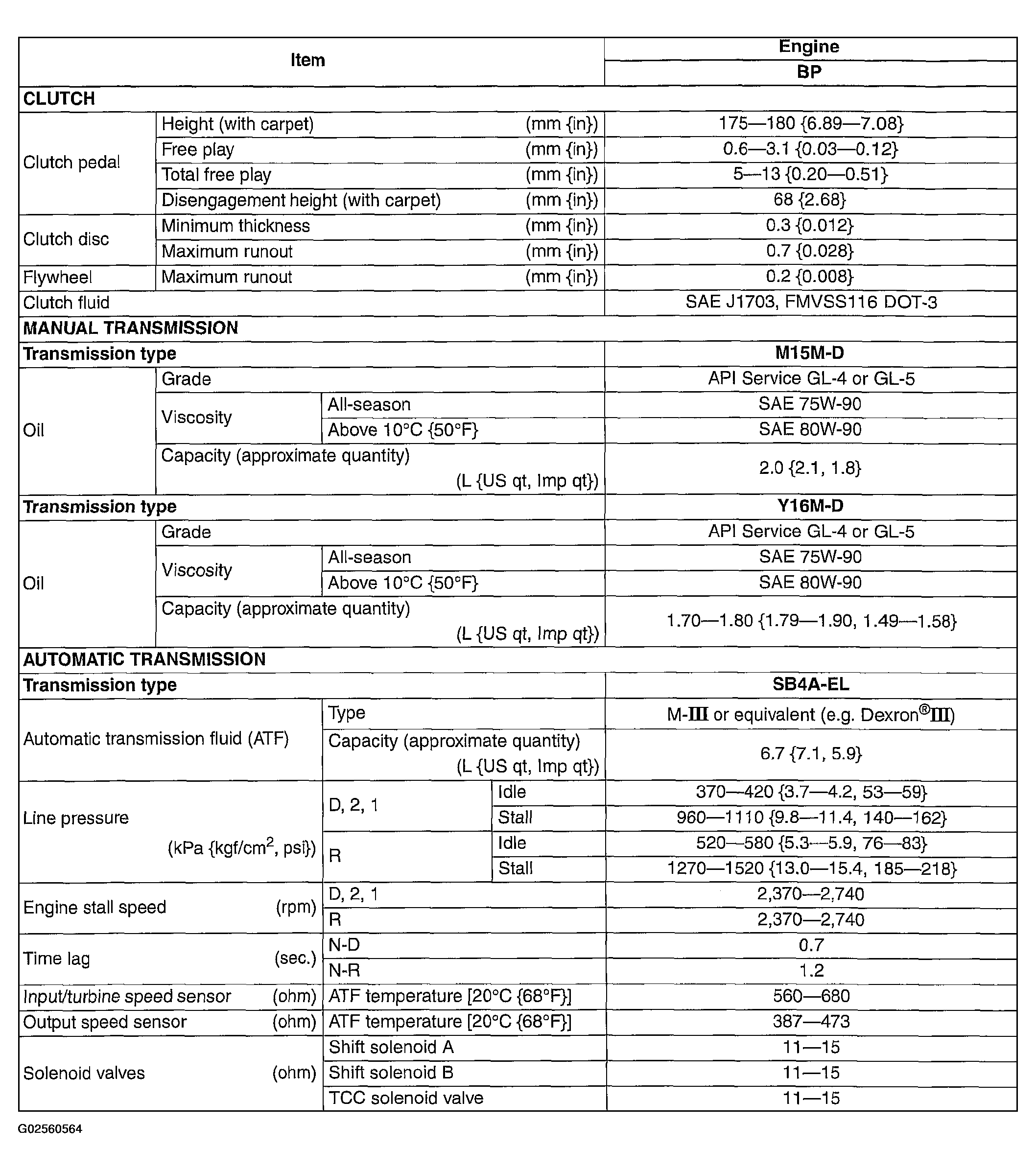

Fig 1: Transmission/Transaxle Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
