Abs HU/Cm Removal/Installation
›
Notes
Abs HU/Cm Removal/Installation: Notes
Remove in the order indicated in the illustration. See
Fig 1
.
Install in the reverse order of removal.

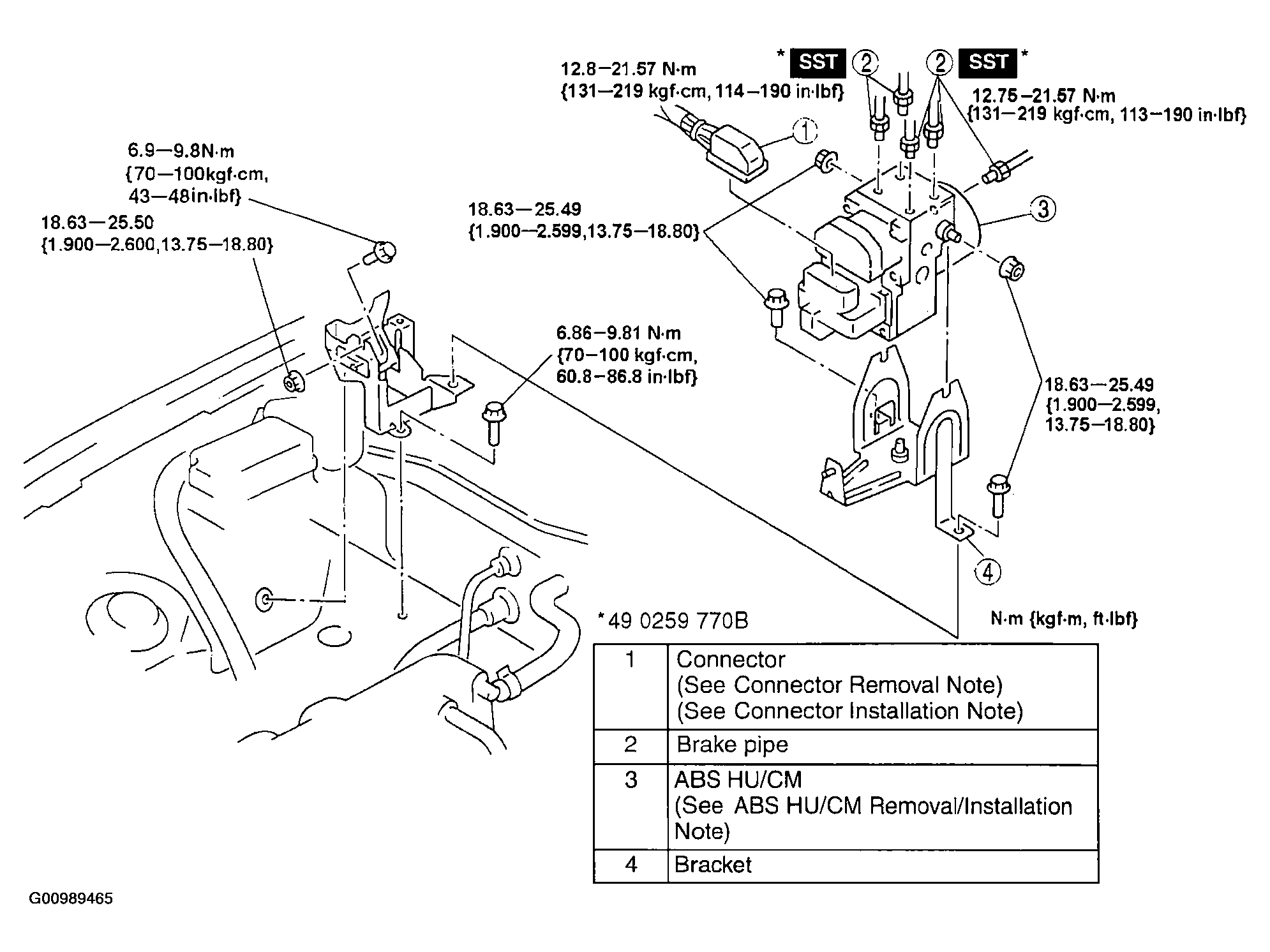

Fig 1: Removing/Installing ABS HU/CM
Courtesy of MAZDA MOTORS CORP.
