DTC P0500: VSS Circuit Malfunction: Notes

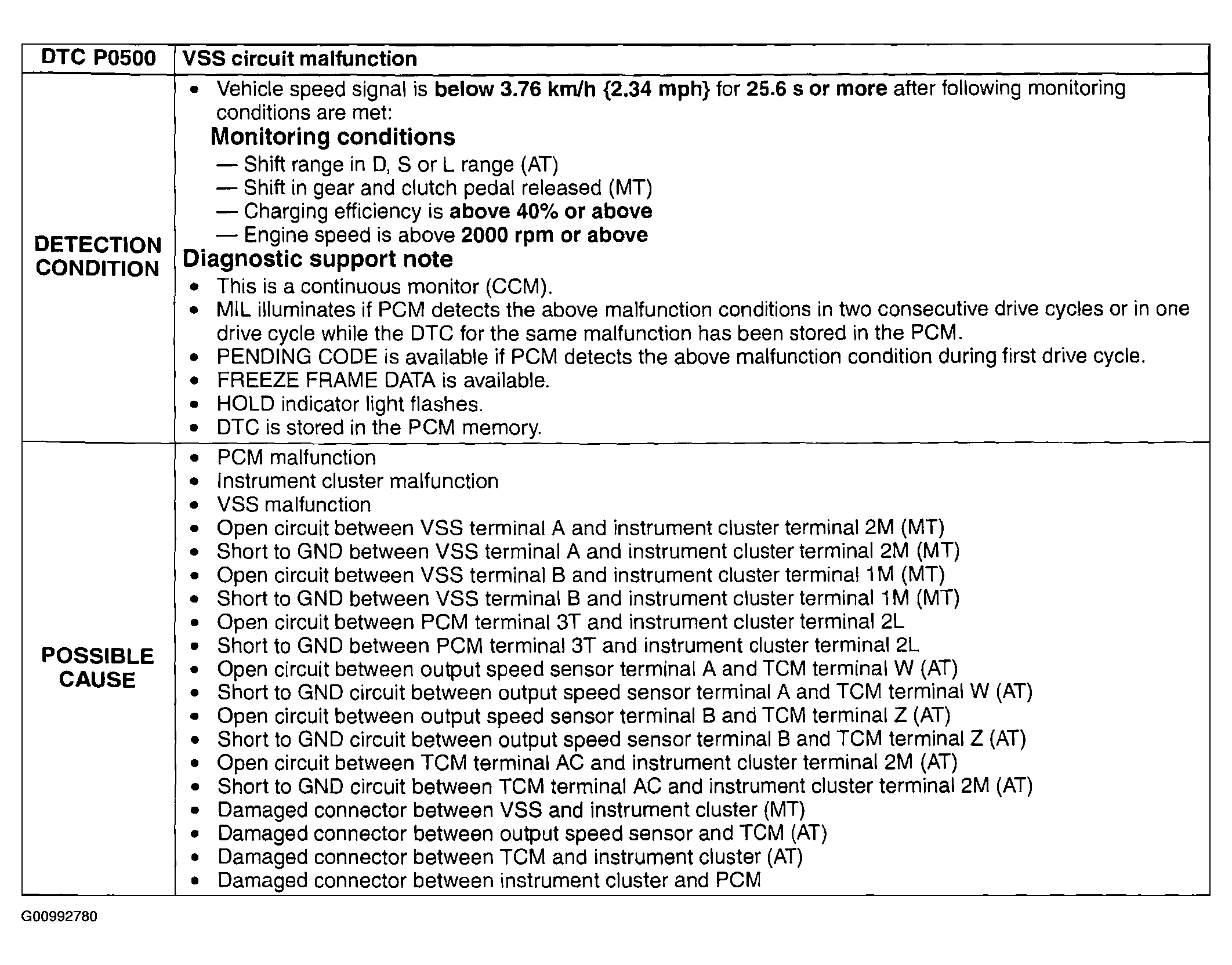

Fig 1: Possible Causes - DTC P0500 [BP, BP With TC]

Courtesy of MAZDA MOTORS CORP.

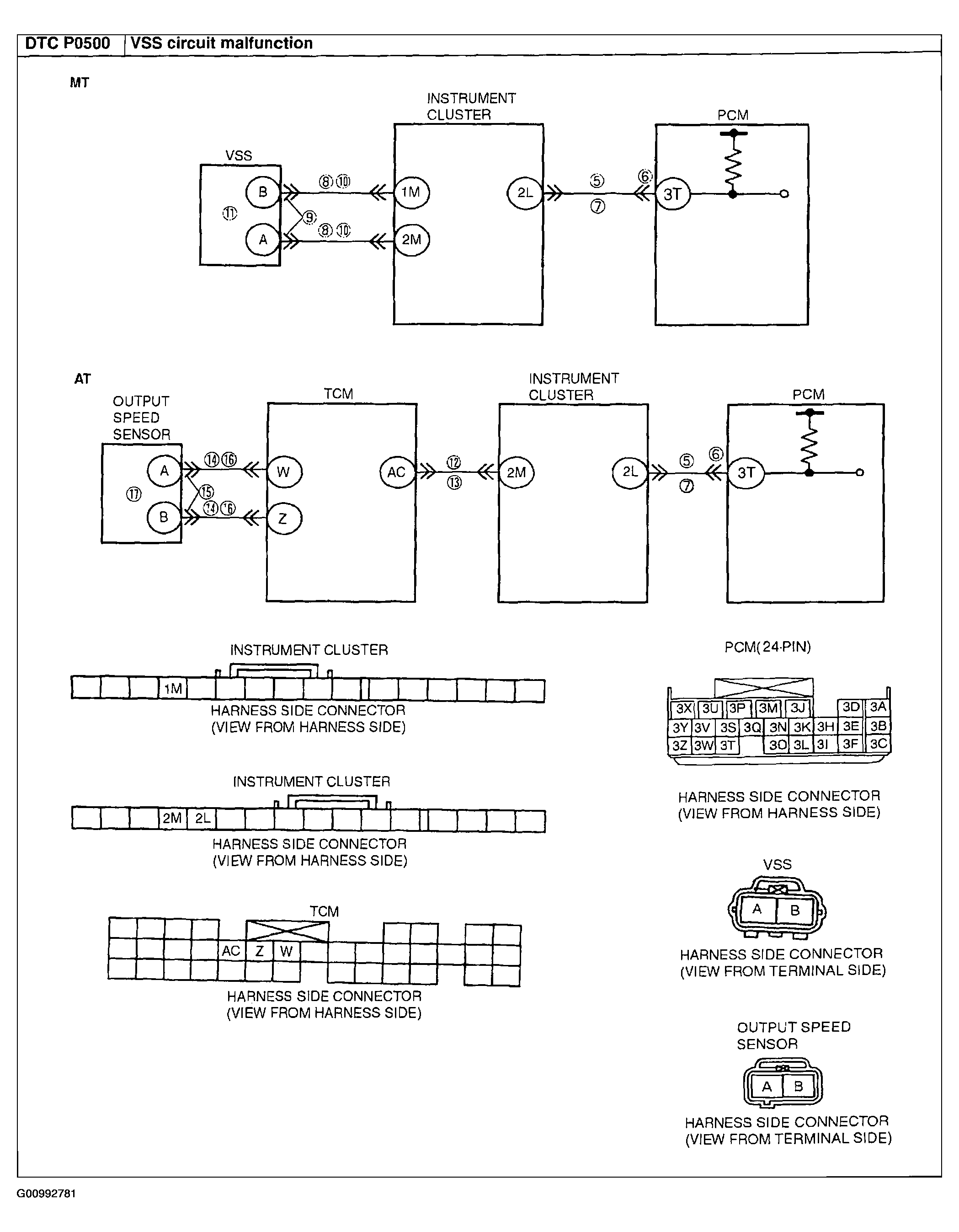

Fig 2: Circuit Diagram - DTC P0500 [BP, BP With TC]

Courtesy of MAZDA MOTORS CORP.
