Ignition Coil Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
    Fig 1: Removal Order Of Ignition Coil
    G00989503Courtesy of MAZDA MOTORS CORP.

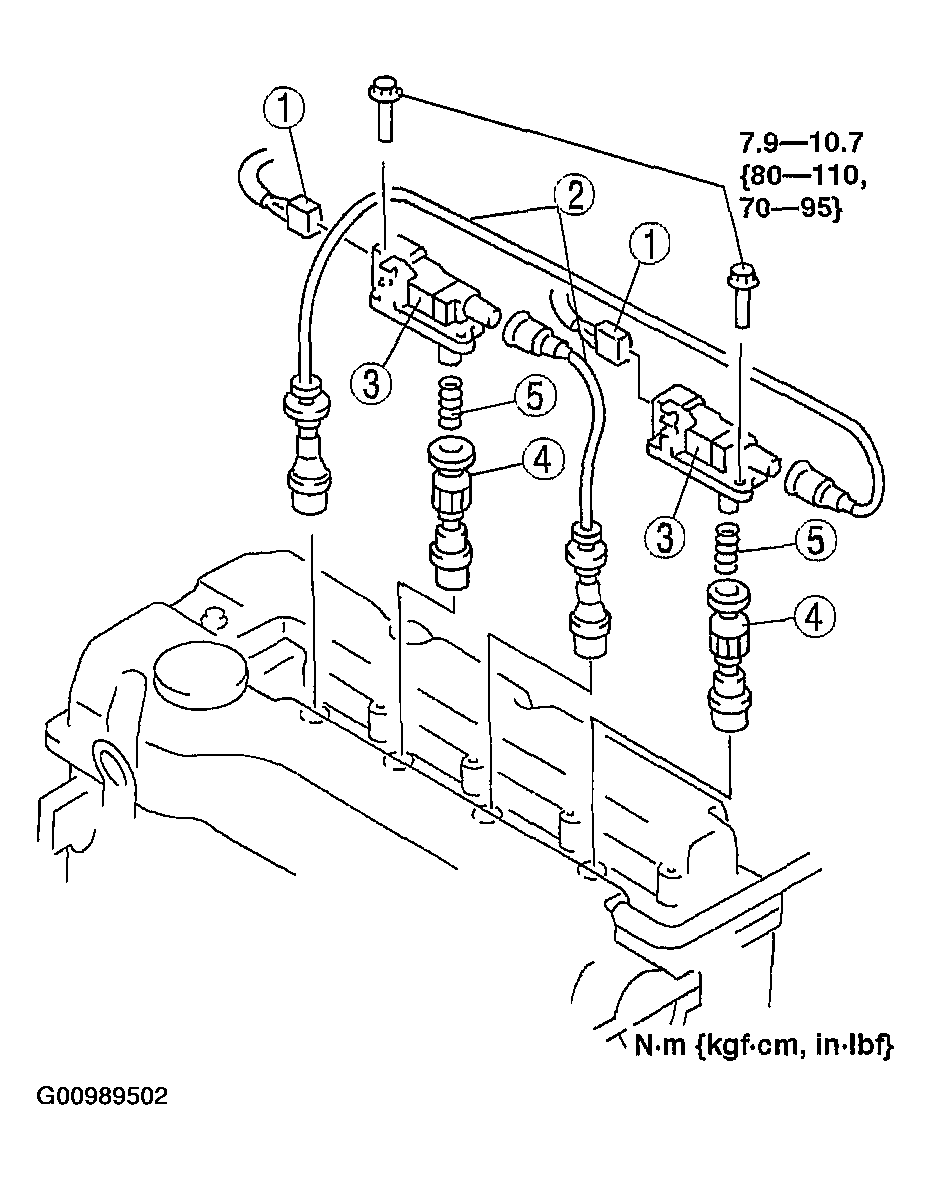

    Fig 2: Removing/Installing Ignition Coil
    G00989502Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
