Joint Hose Installation Note

Fit the joint hose onto the respective fittings within specification, and install clamps as shown.

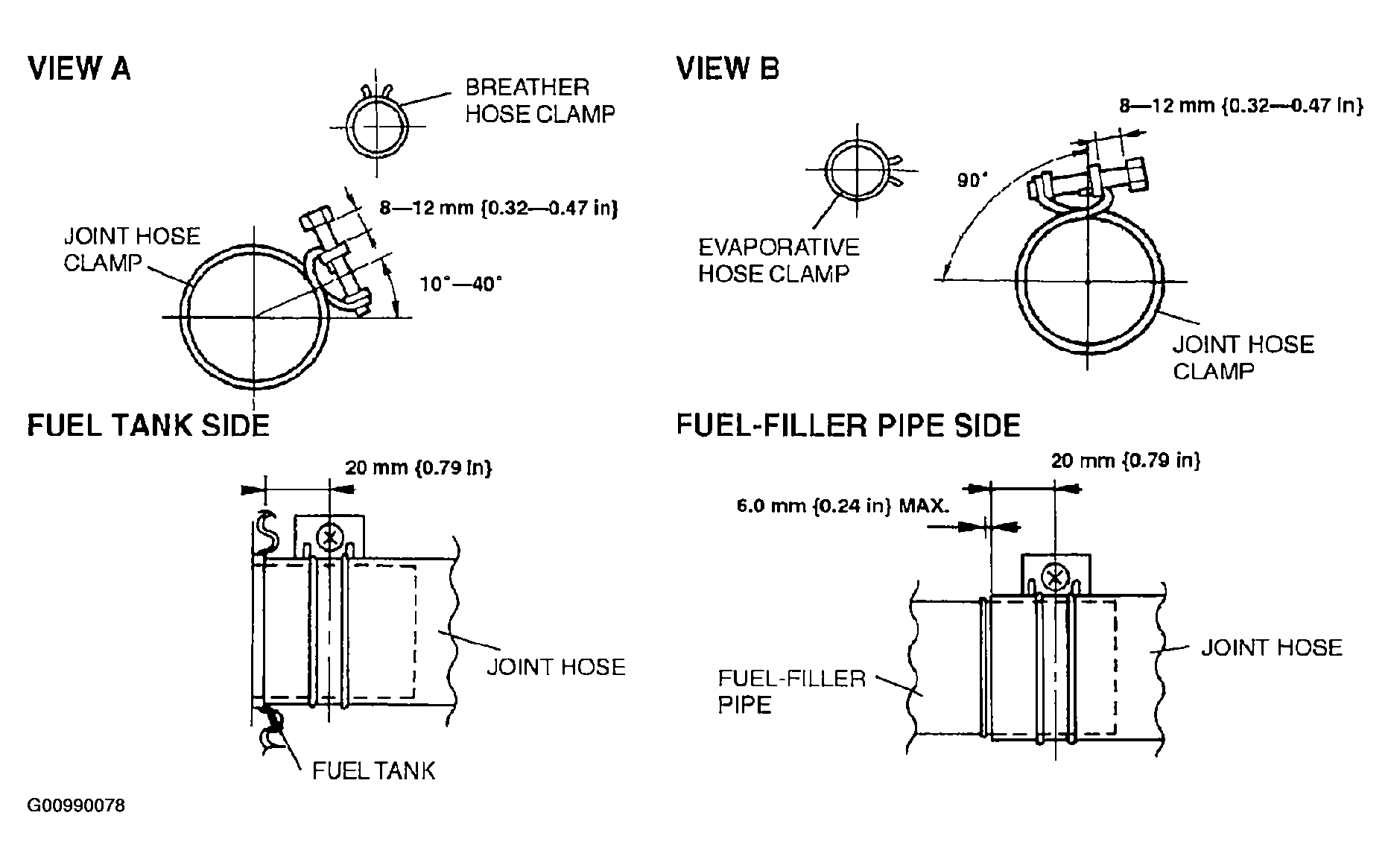

Fig 1: Installing Clamps Onto Respective Fittings, Within Specification
Courtesy of MAZDA MOTORS CORP.
