Main Fuse Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in the figure.
    Fig 1: Removal Order Of Main Fuse
    G01344734Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

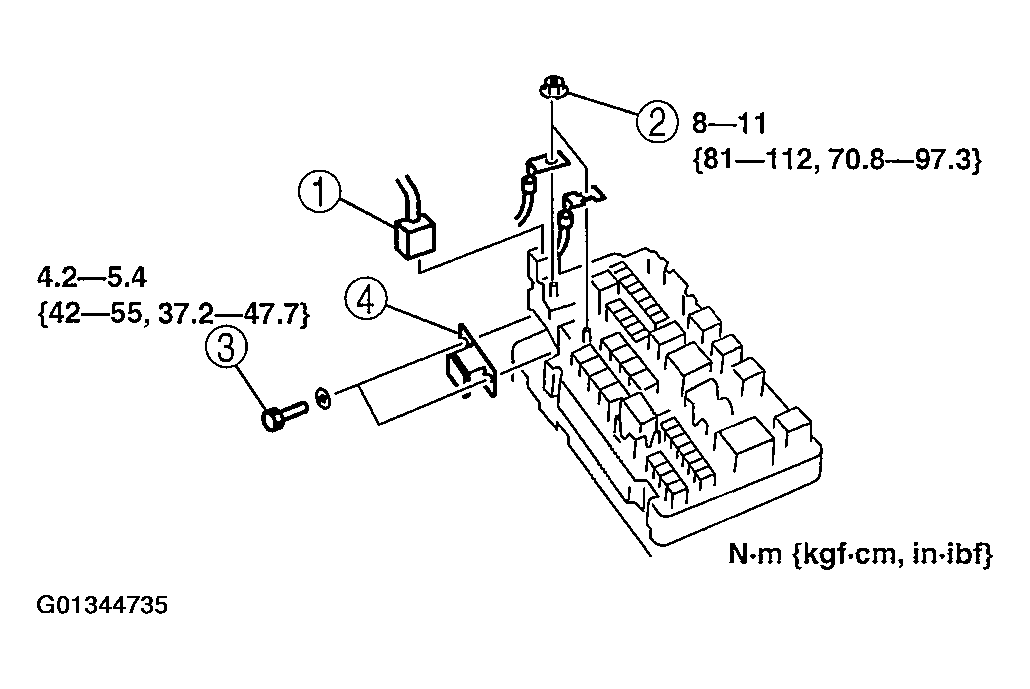

    Fig 2: Removing/Installing Main Fuse
    G01344735Courtesy of MAZDA MOTORS CORP.
