Relay Location
Relay Location

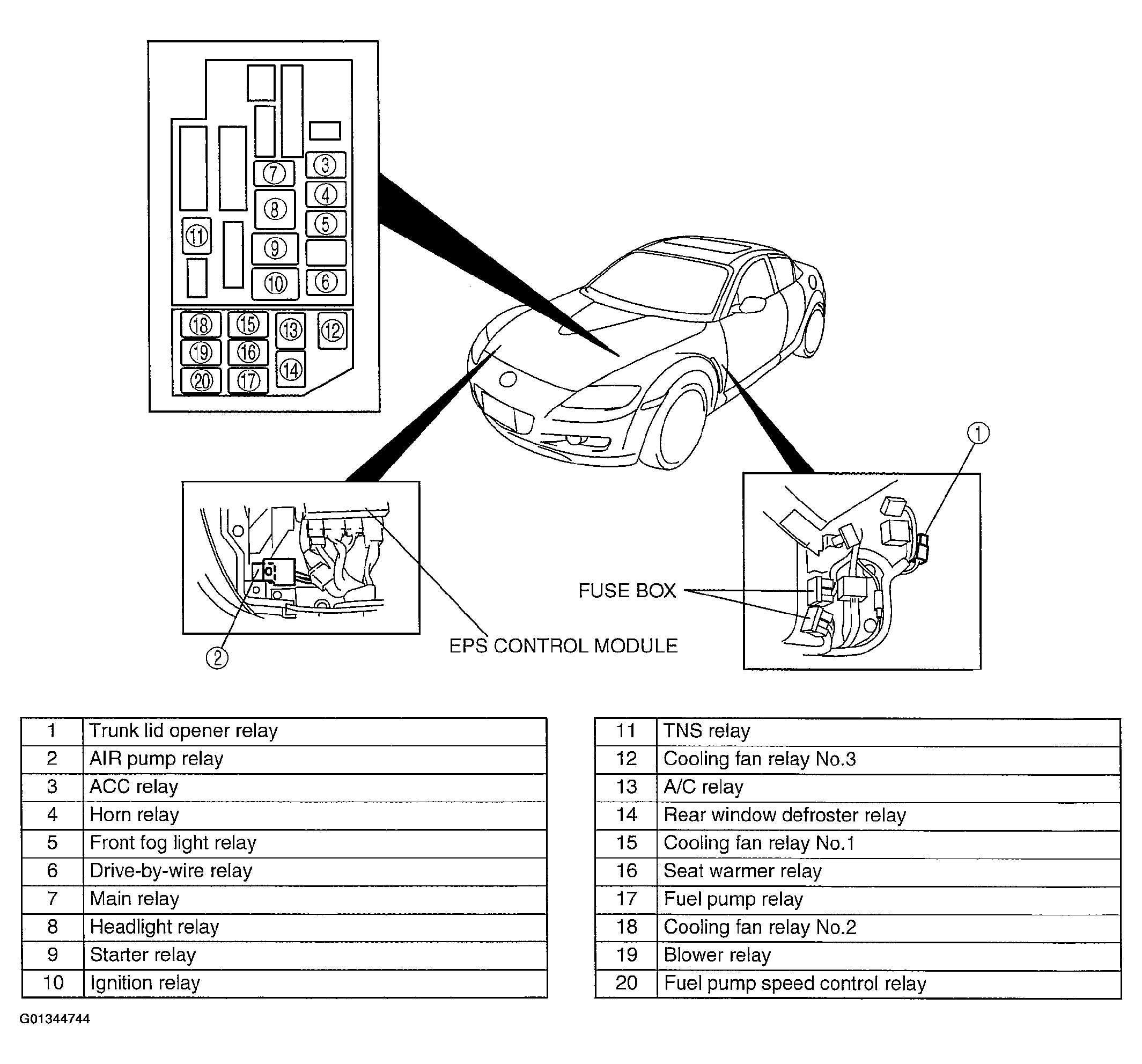

Fig 1: Relay Locations
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
