Generator Disassembly/Assembly

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

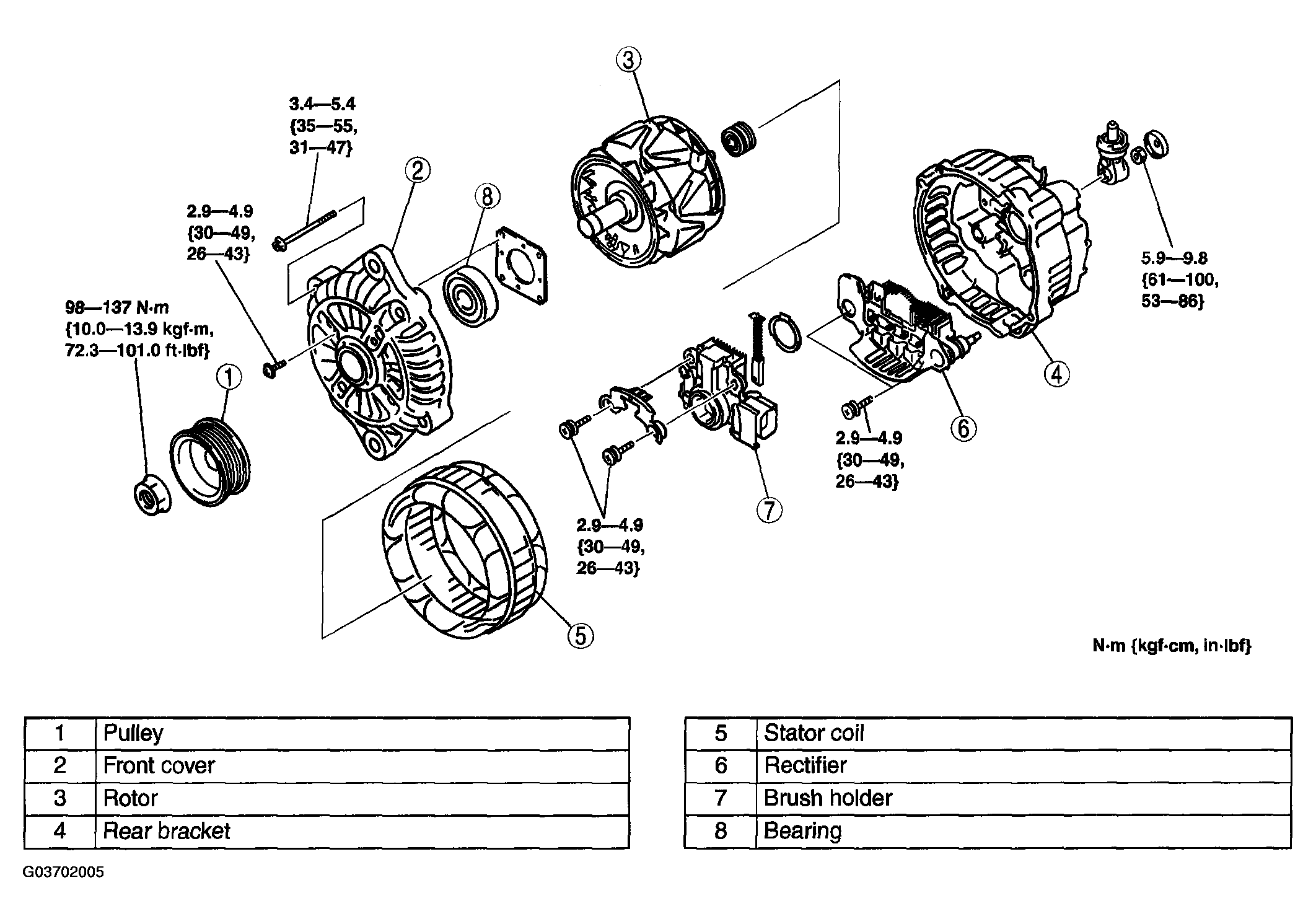

Fig 1: Exploded View Of Generator With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
