Technical Data [Engine Mechanical)
›
Engine Technical Data
Engine Technical Data

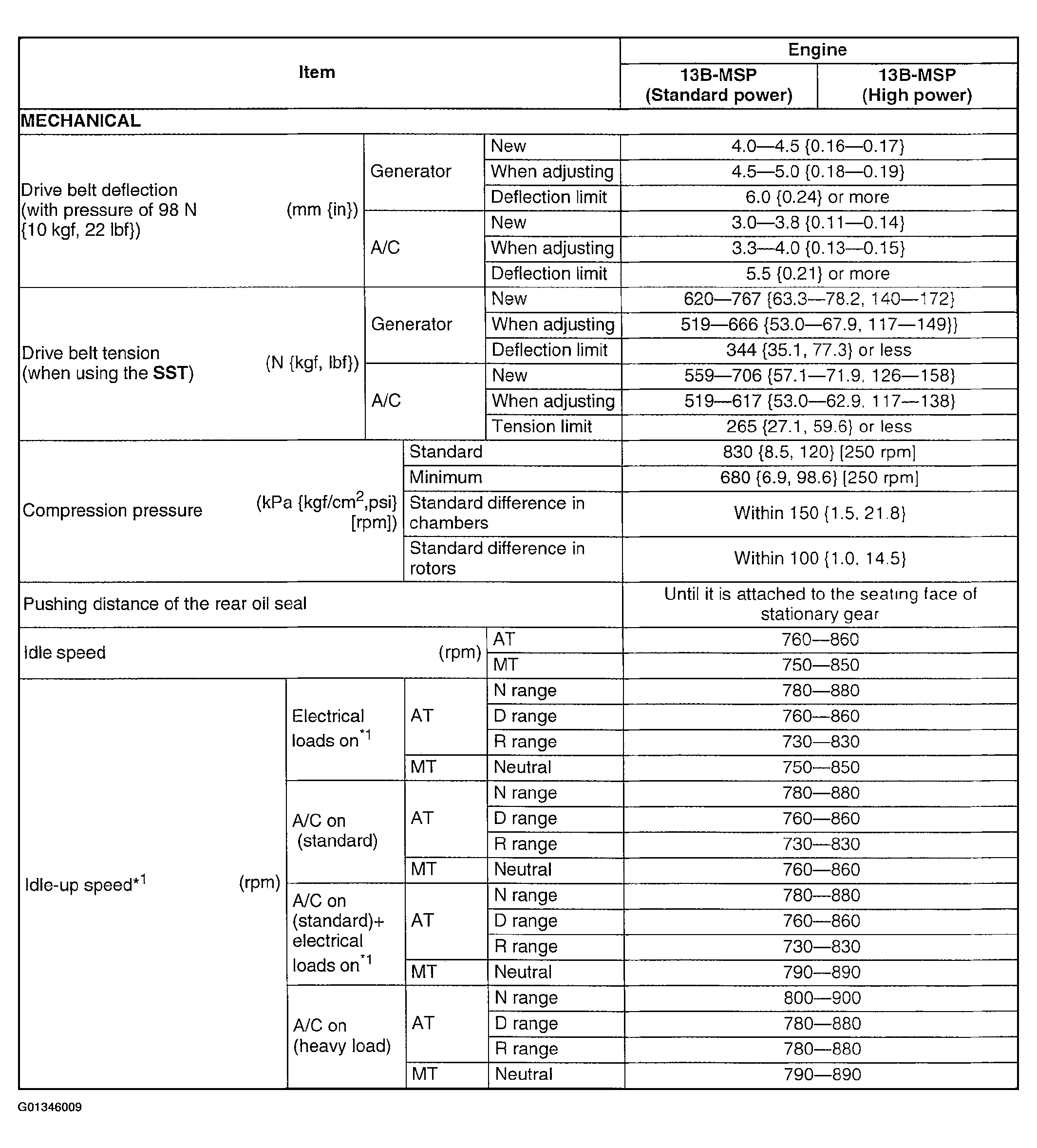

Fig 1: Engine Mechanical System Technical Data
Courtesy of MAZDA MOTORS CORP.

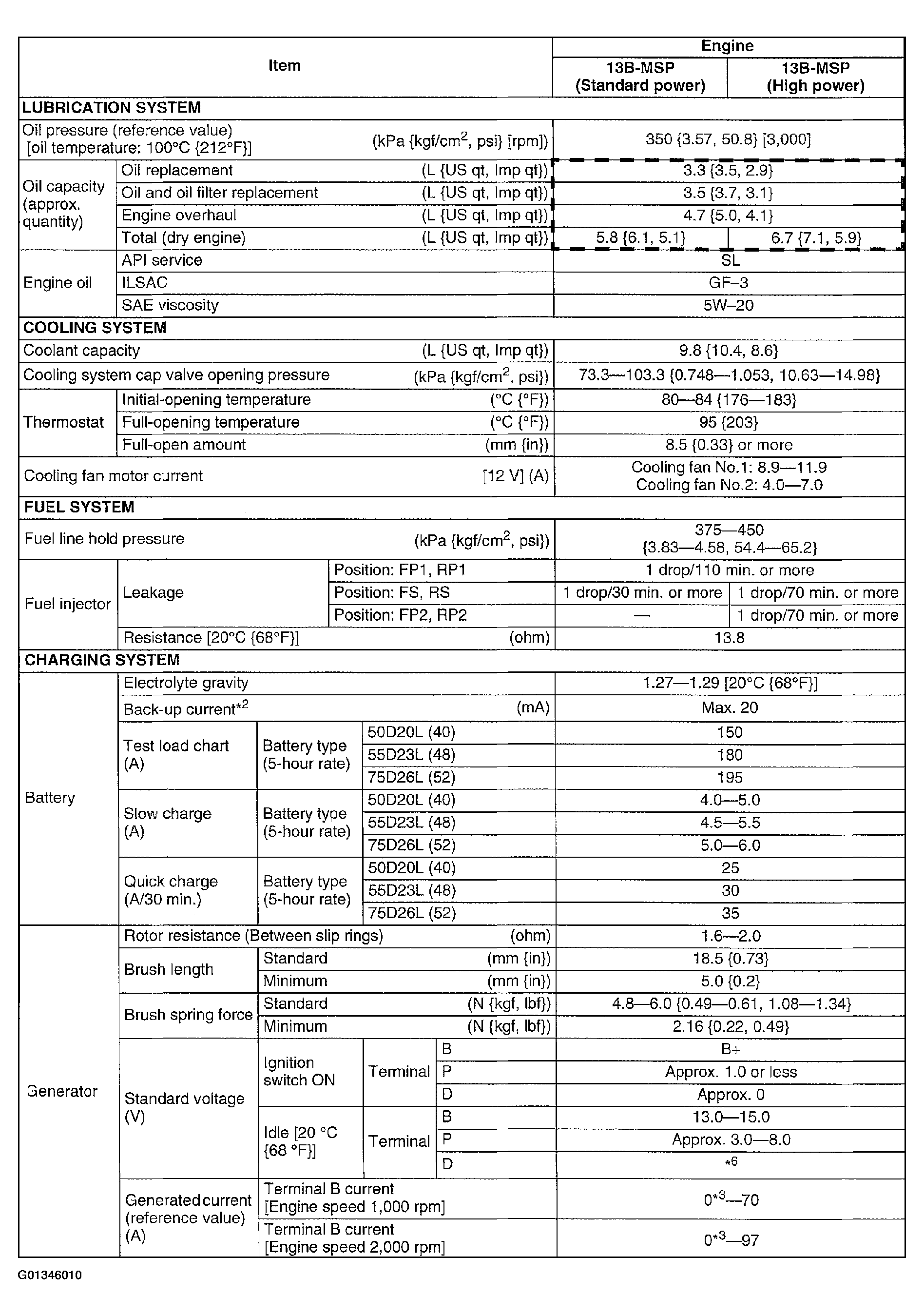

Fig 2: Lubrication, Cooling, Fuel & Charging System Technical Data
Courtesy of MAZDA MOTORS CORP.

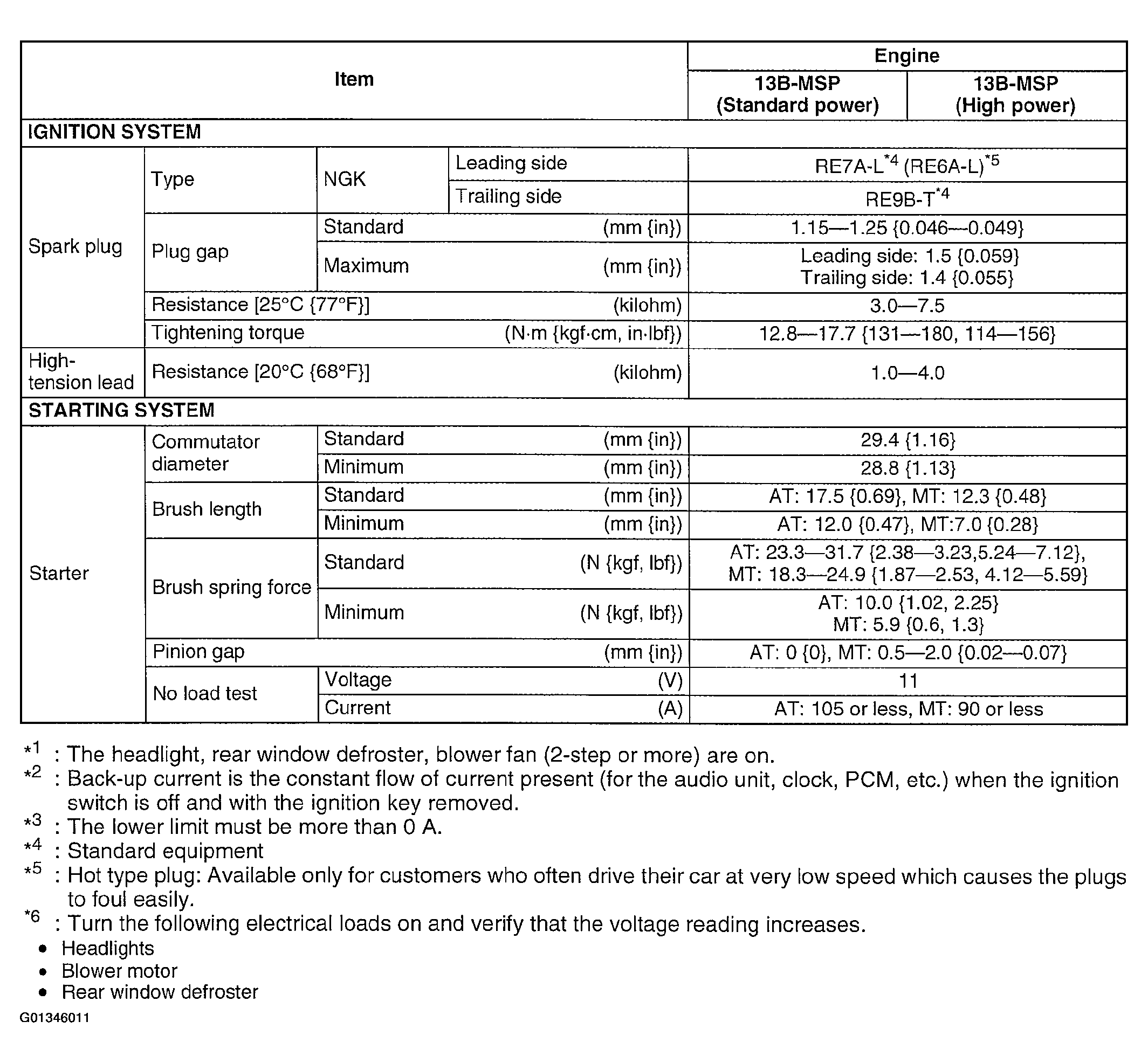

Fig 3: Ignition & Starting System Technical Data
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
