RX-8 1.3 3
›
Repair and Diagnosis
›
Engine Performance
›
System
›
On-Board Diagnostic (Engine Control System 13BMSP]
›
Control System Wiring Diagram
Control System Wiring Diagram

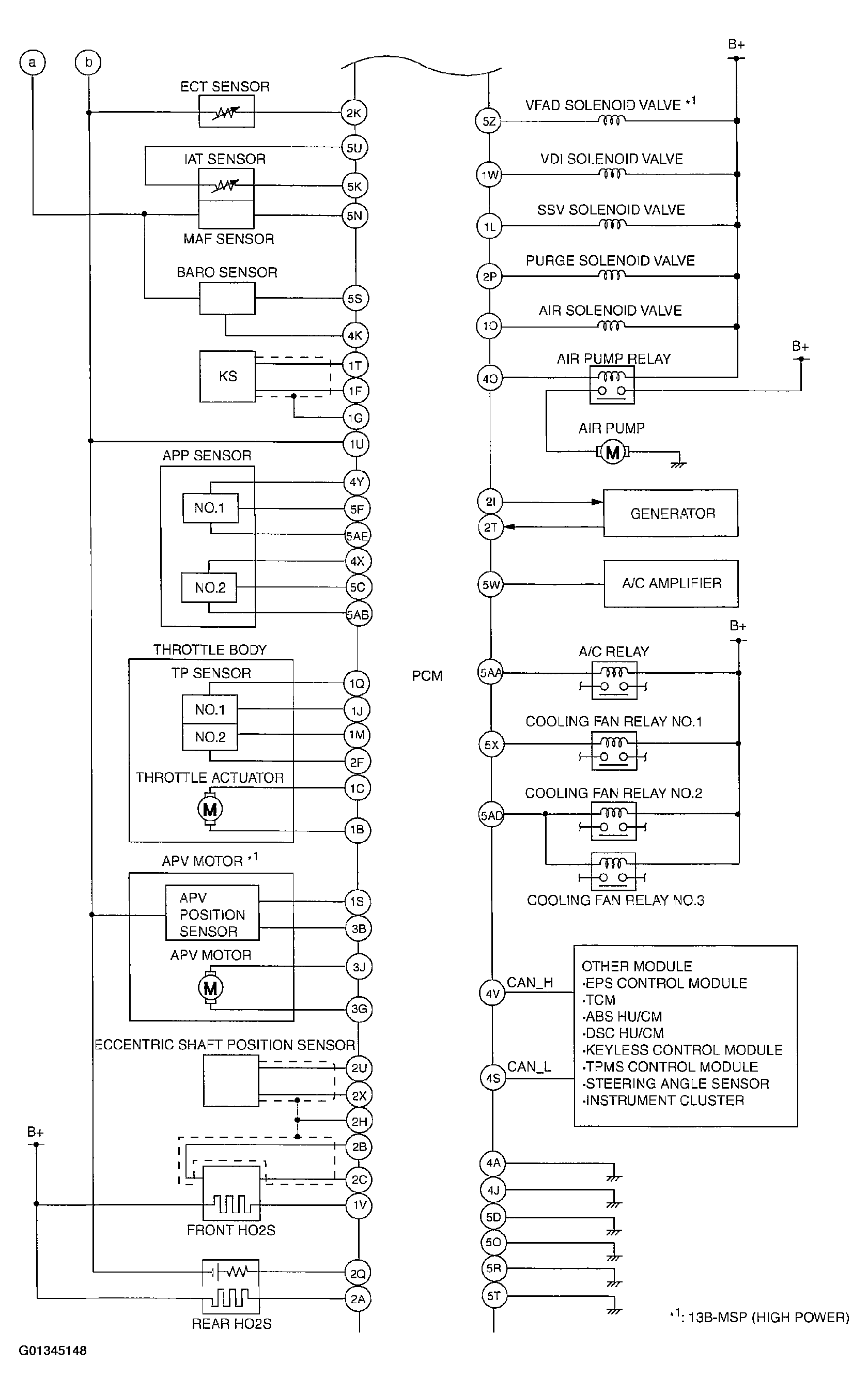

Fig 1: Control System Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

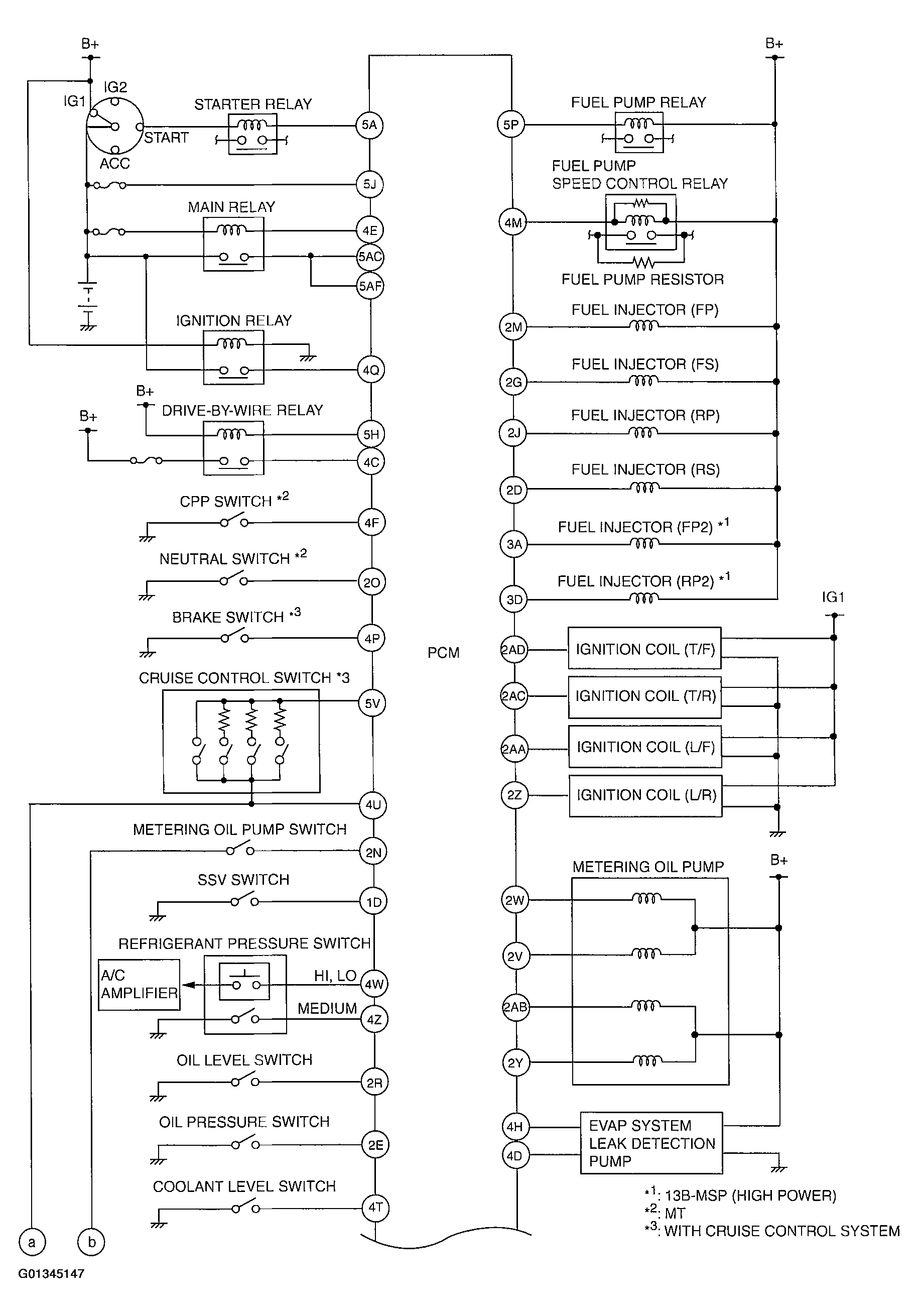

Fig 2: Control System Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
