DTC P0327: KS Circuit Low Input

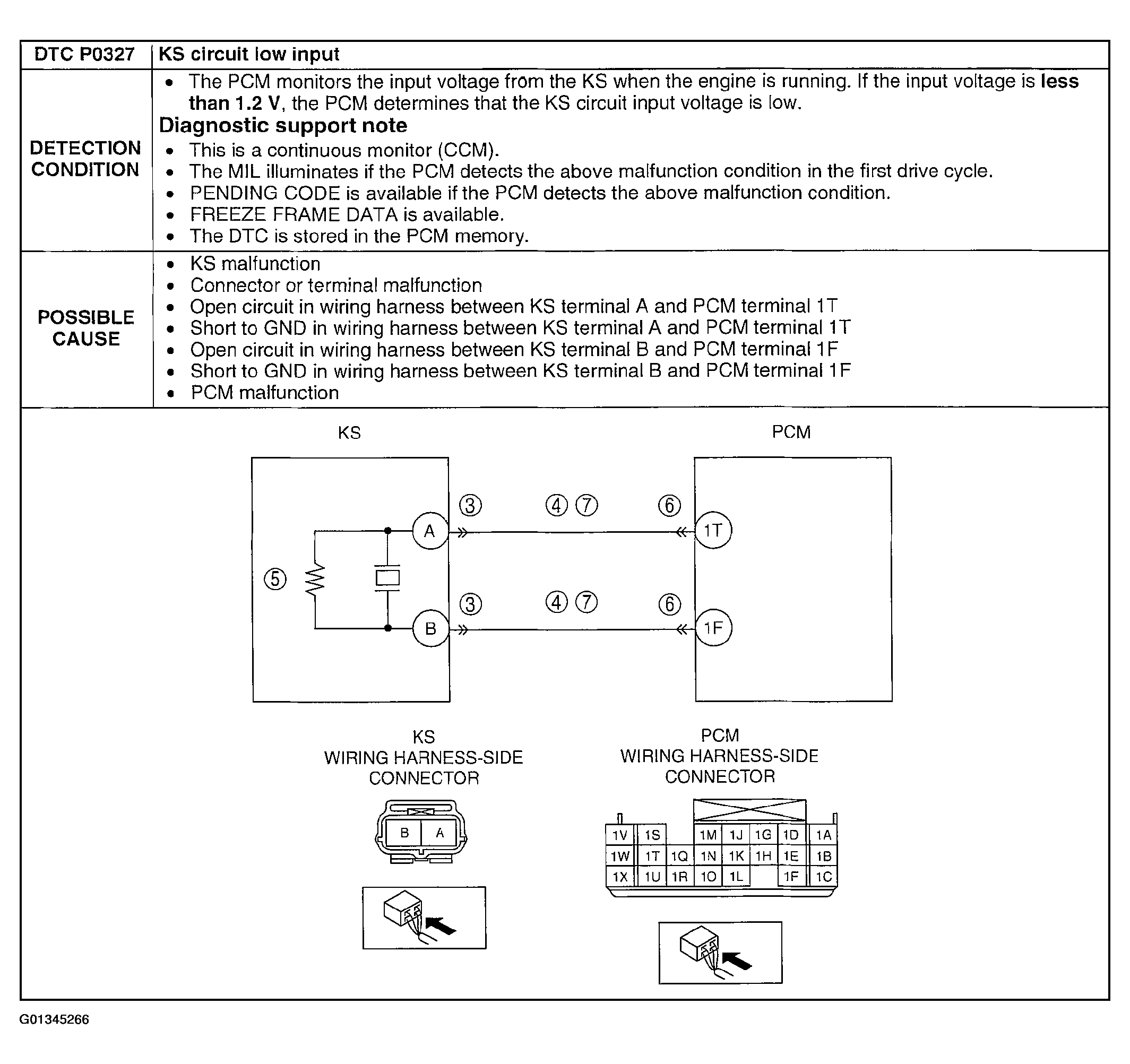

Fig 1: DTC P0327 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

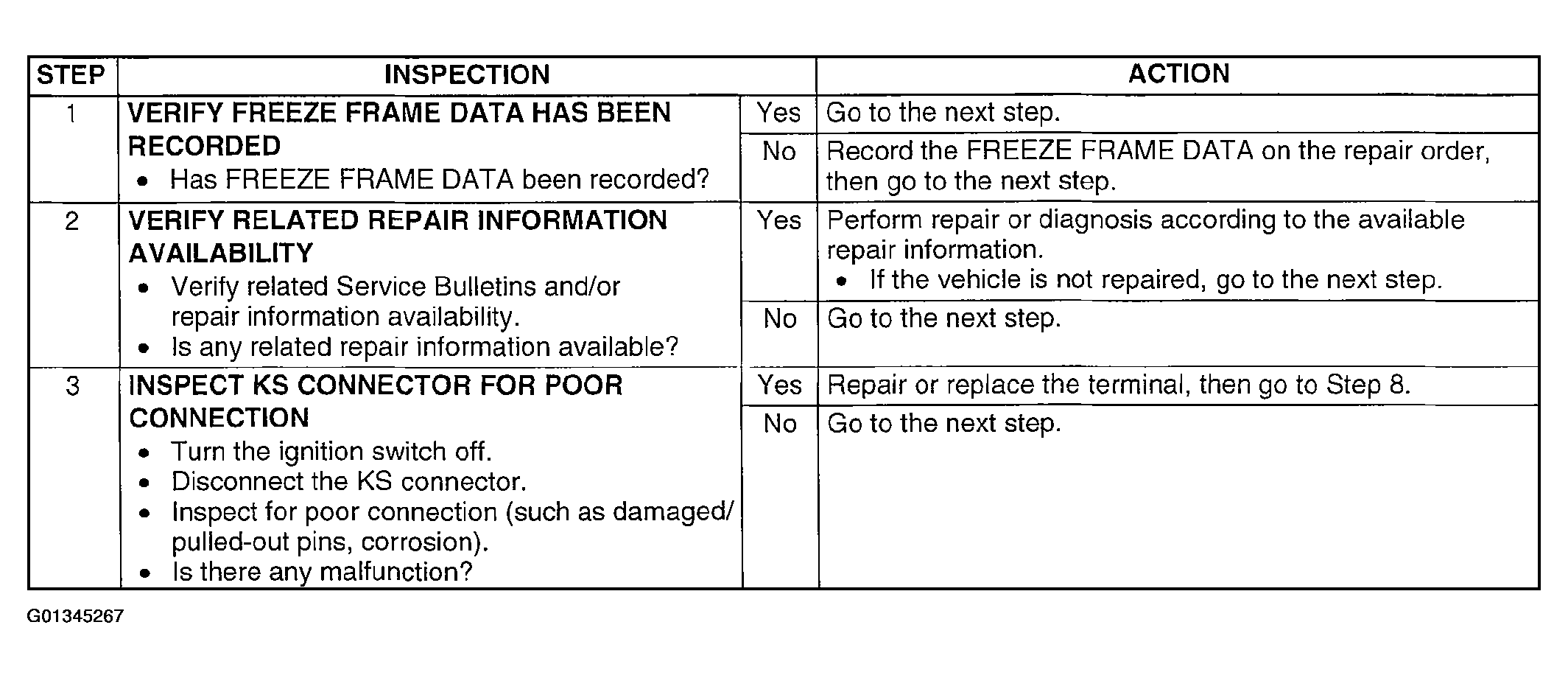

Fig 2: DTC P0327 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

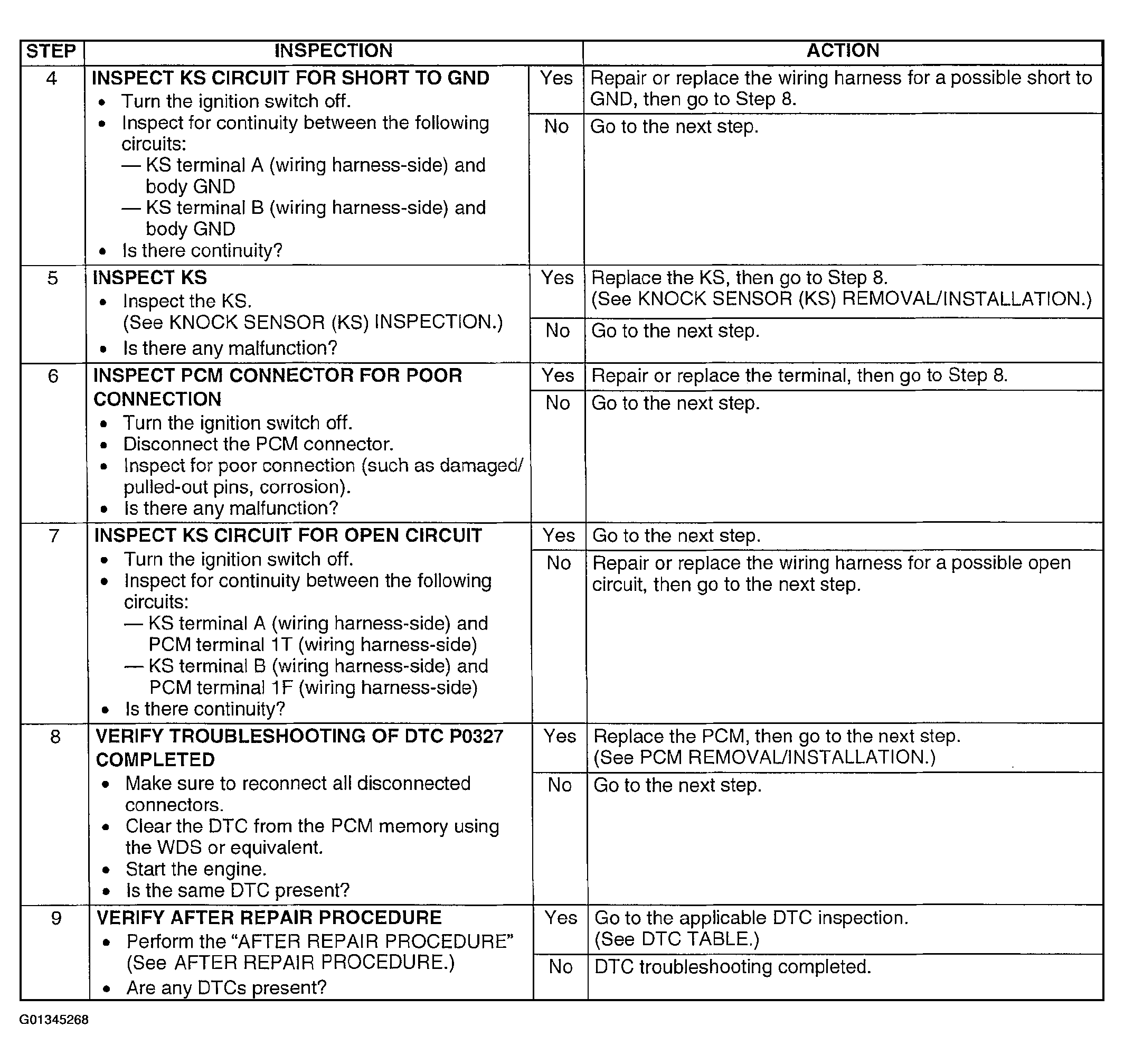

Fig 3: DTC P0327 Diagnostic Procedure Chart (Step 4-9)

Courtesy of MAZDA MOTORS CORP.
