DTC P0336: Eccentric Shaft Position Sensor Circuit Range/Performance Problem

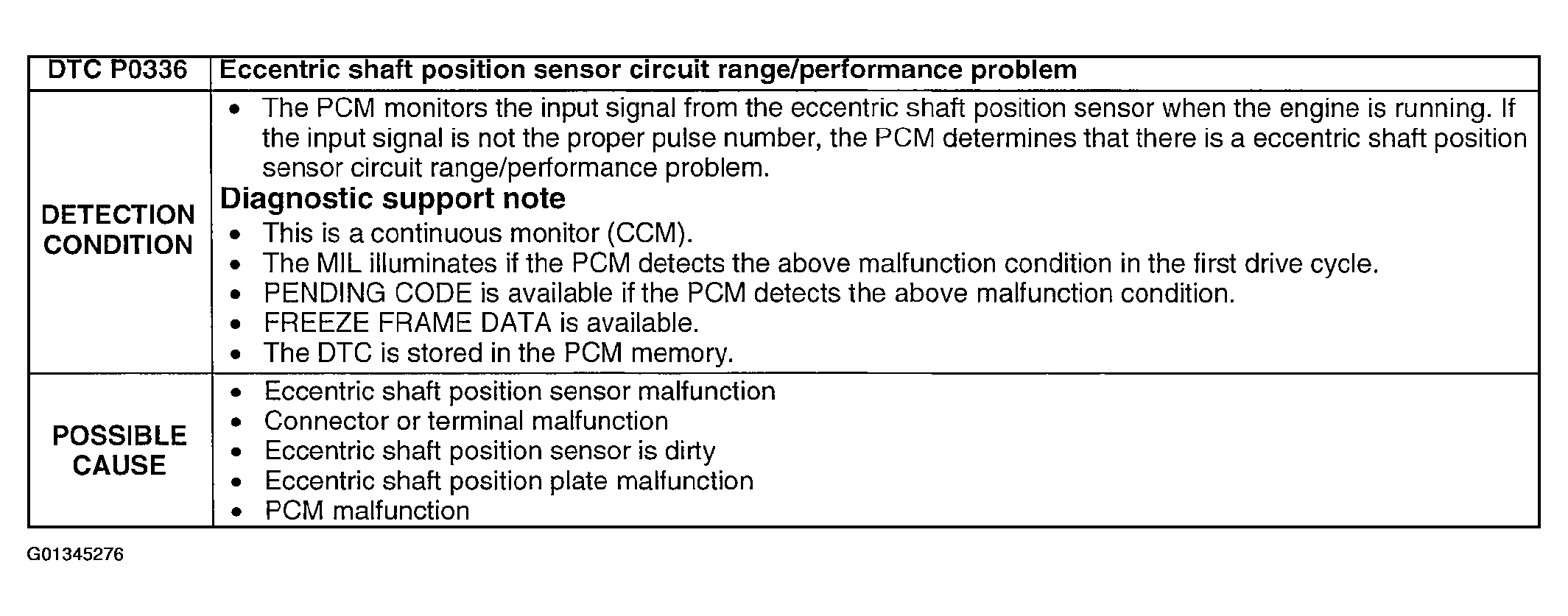

Fig 1: DTC P0336 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

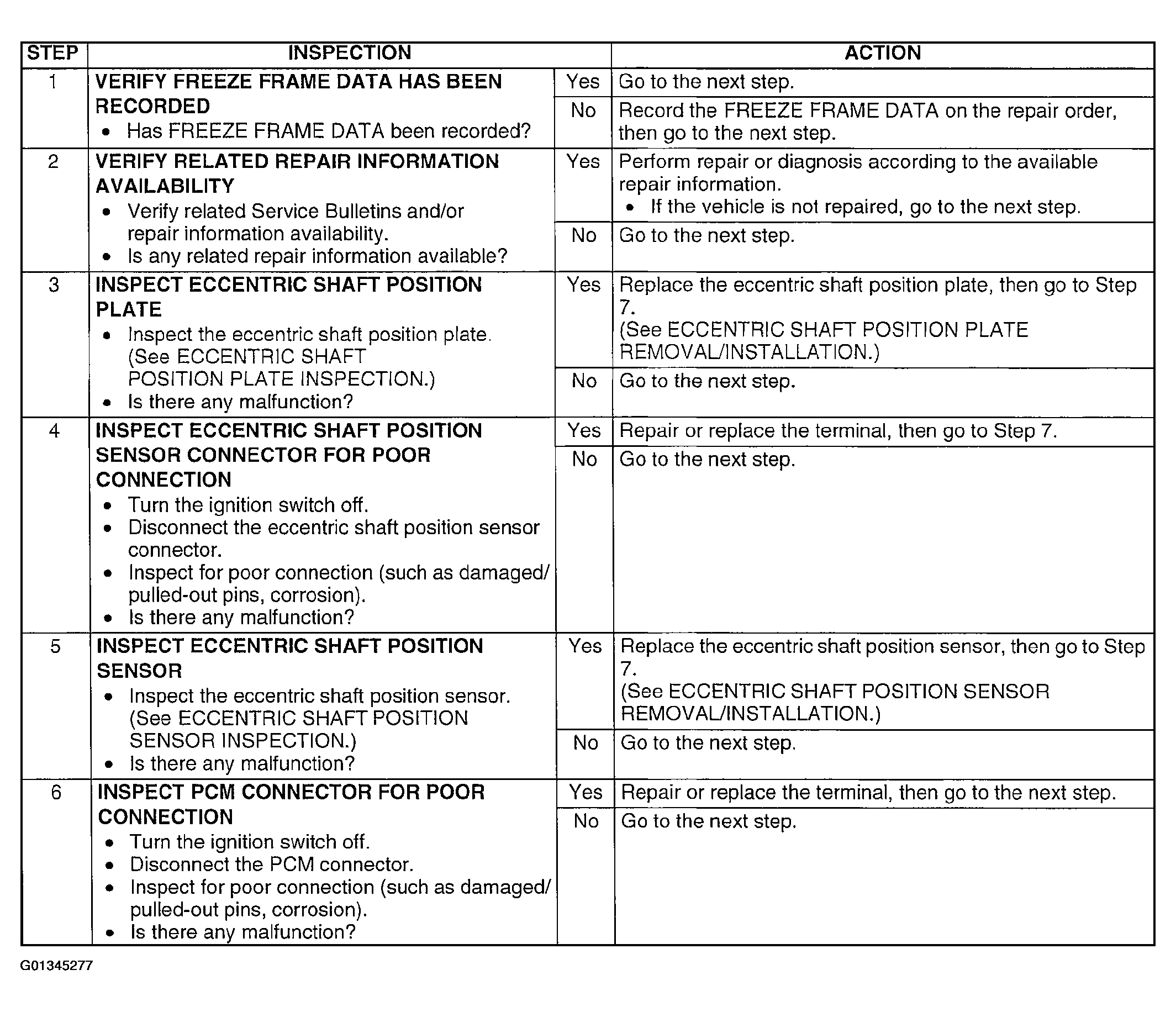

Fig 2: DTC P0336 Diagnostic Procedure Chart (Step 1-6)

Courtesy of MAZDA MOTORS CORP.

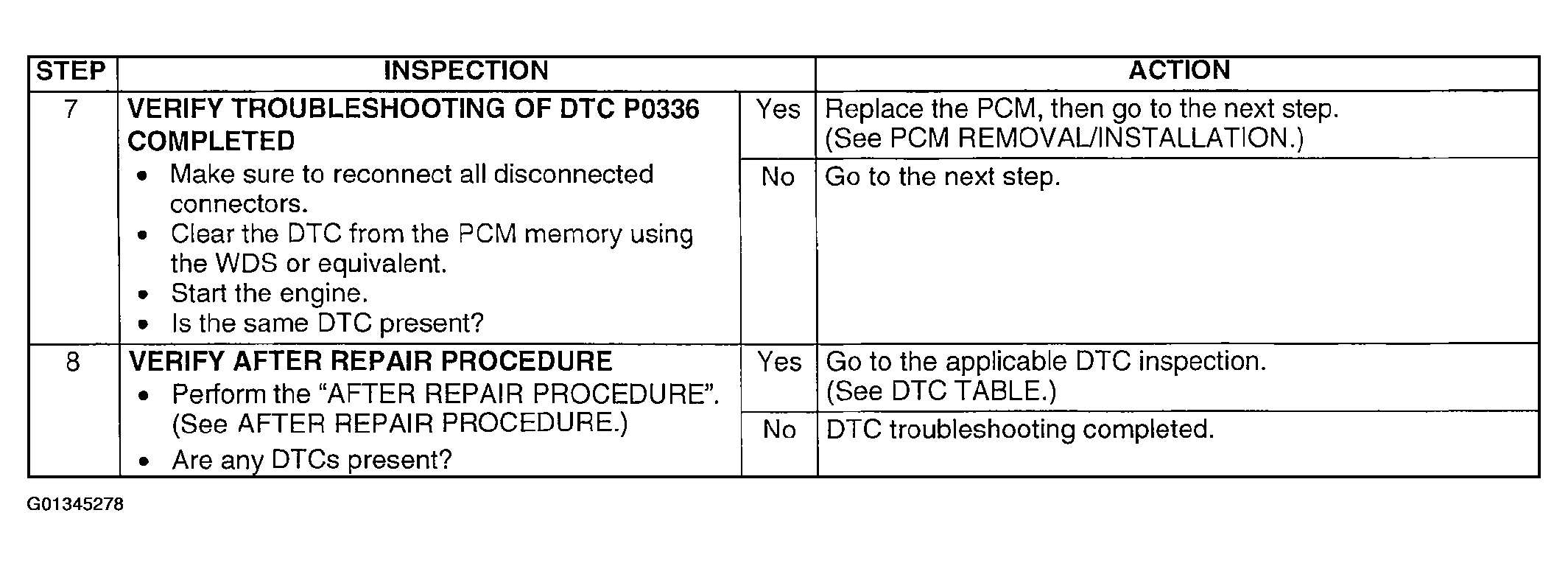

Fig 3: DTC P0336 Diagnostic Procedure Chart (Step 7-8)

Courtesy of MAZDA MOTORS CORP.
