DTC P0571: Brake Switch Input Circuit Problem

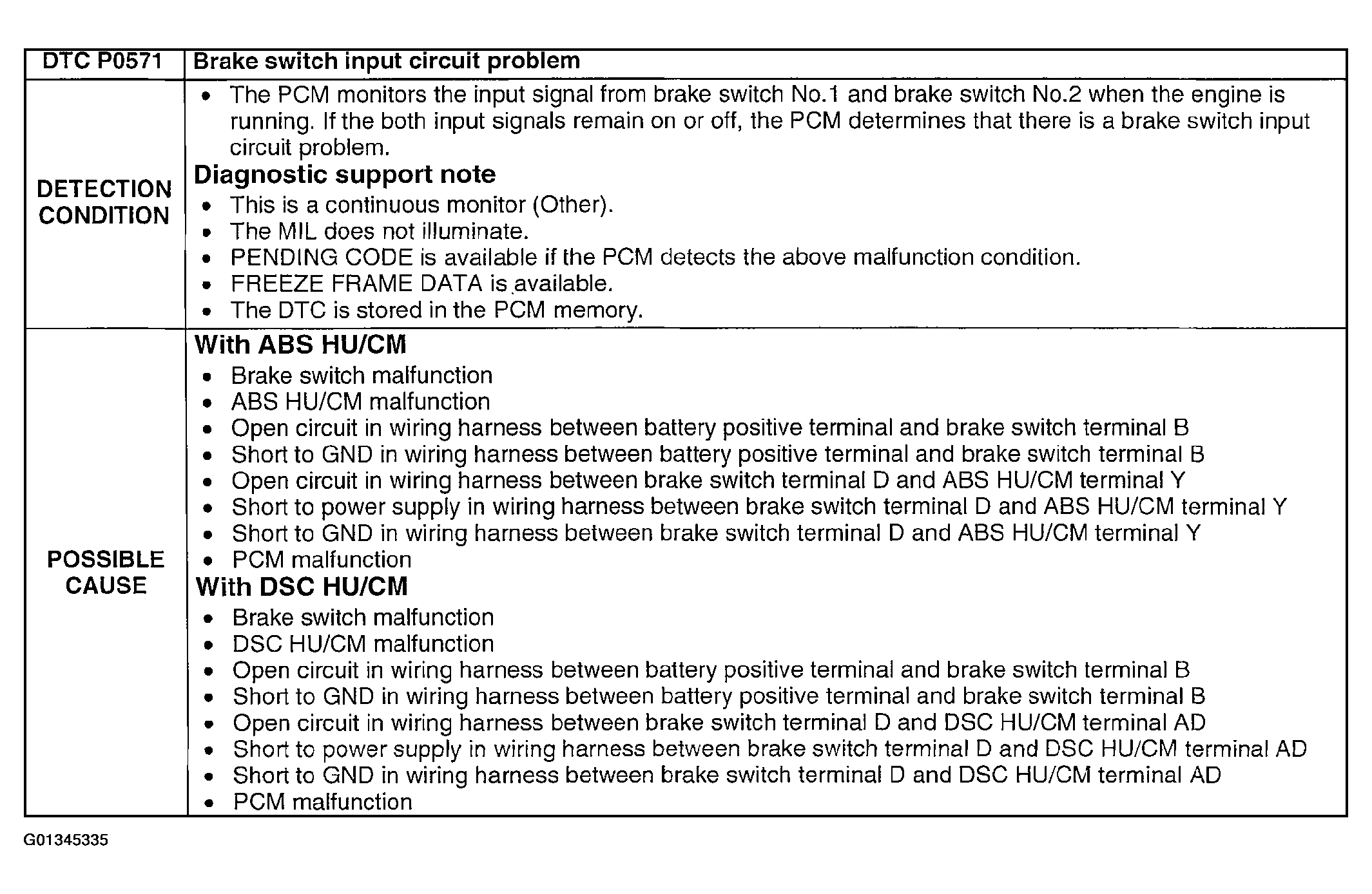

Fig 1: DTC P0571 Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: DTC P0571 Detection Condition & Possible Causes Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

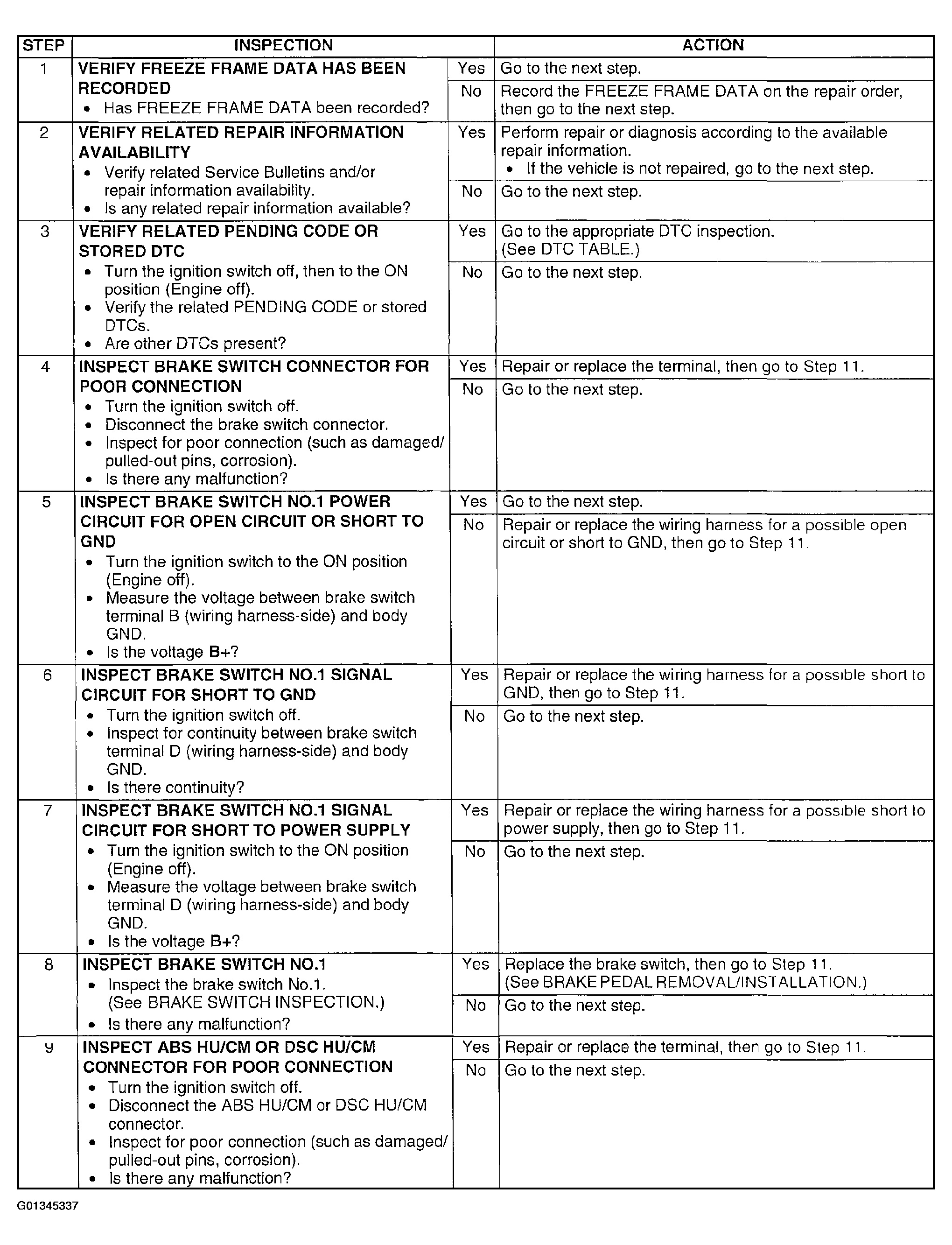

Fig 3: DTC P0571 Diagnostic Procedure Chart (Step 1-9)

Courtesy of MAZDA MOTORS CORP.

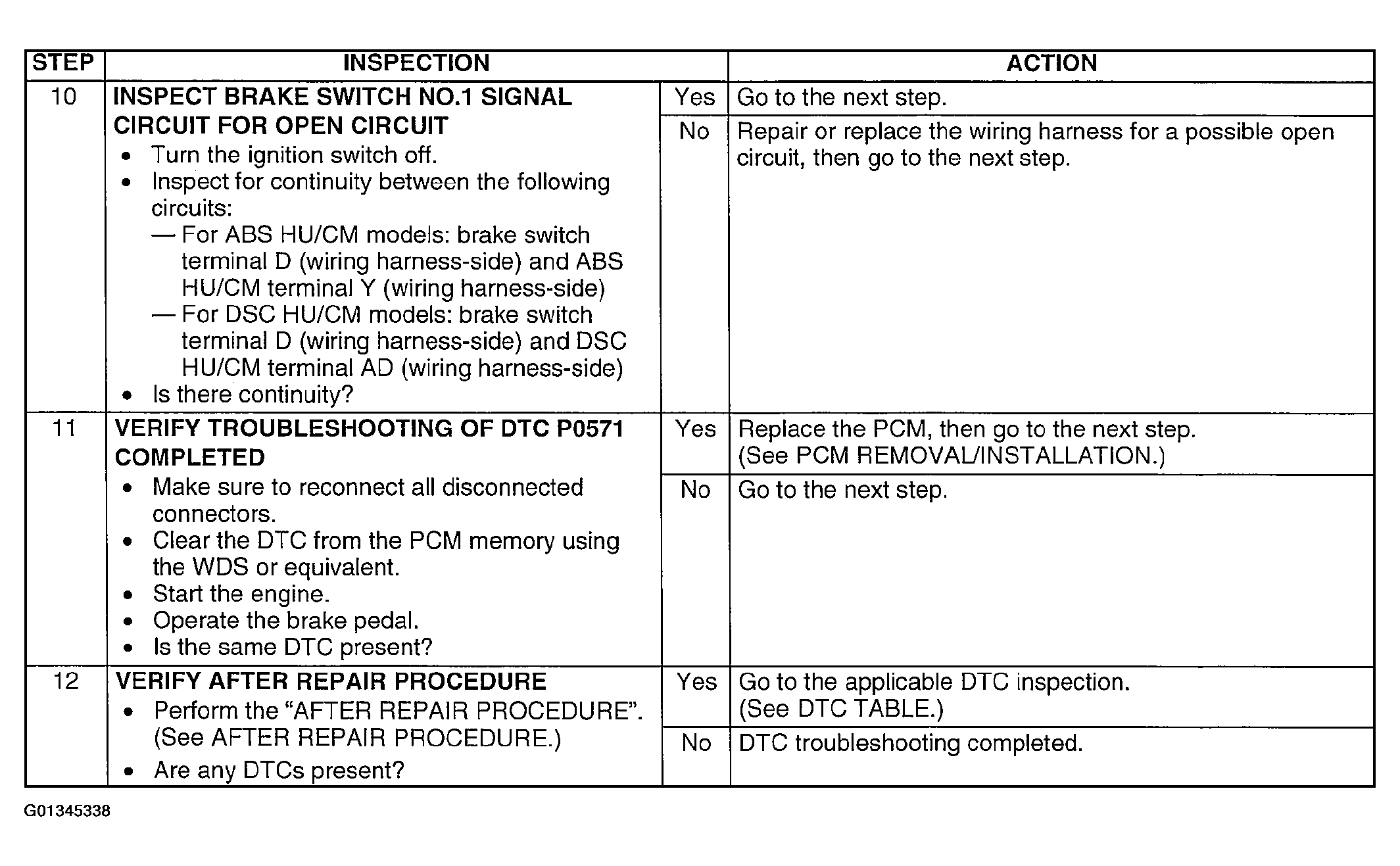

Fig 4: DTC P0571 Diagnostic Procedure Chart (Step 10-12)

Courtesy of MAZDA MOTORS CORP.
