DTC P2070: SSV Stuck Open

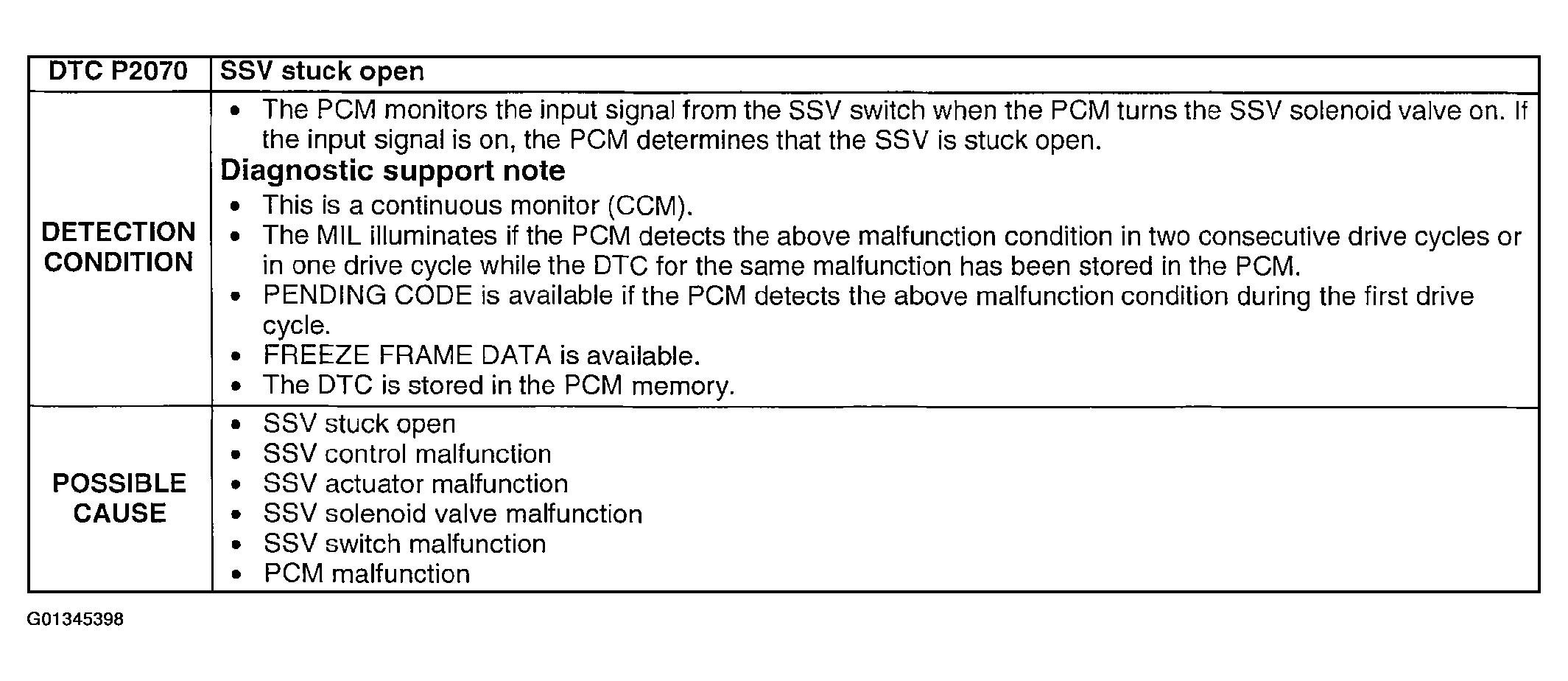

Fig 1: DTC P2070 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

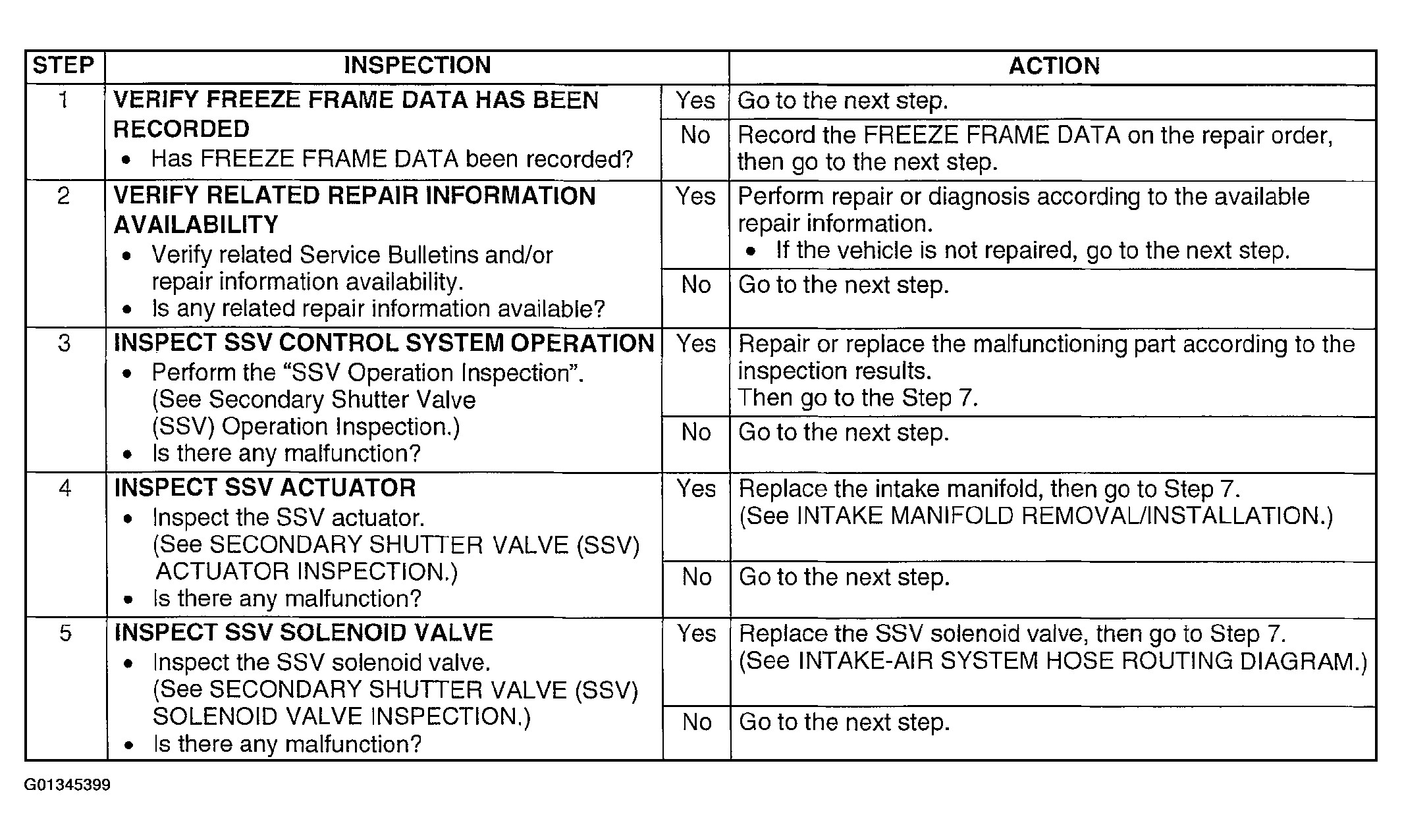

Fig 2: DTC P2070 Diagnostic Procedure Chart (Step 1-5)

Courtesy of MAZDA MOTORS CORP.

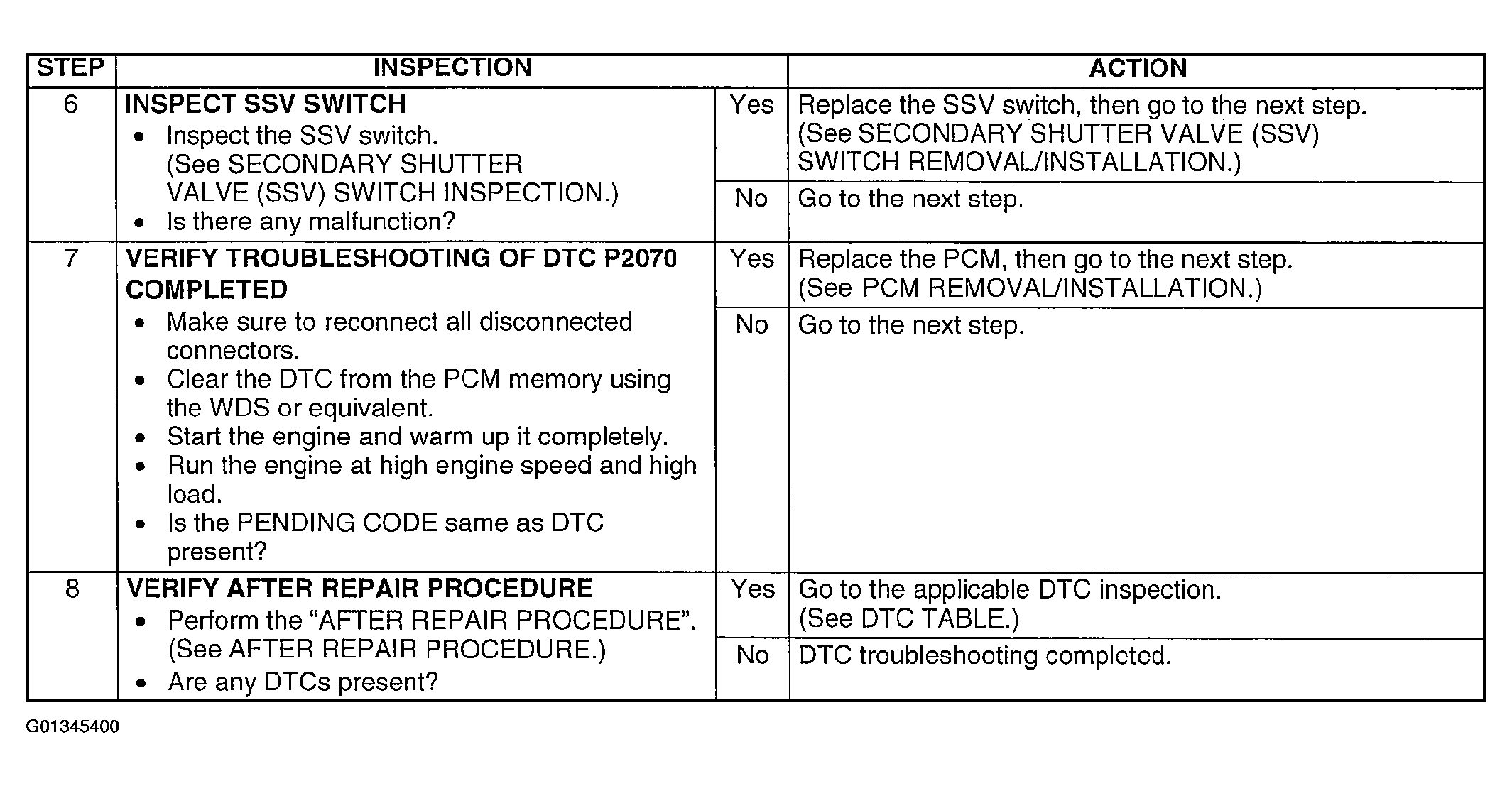

Fig 3: DTC P2070 Diagnostic Procedure Chart (Step 6-8)

Courtesy of MAZDA MOTORS CORP.
