Symptom Troubleshooting [Engine Control System 13B-MSP)
›
Engine Control System Operation Inspection
›
Drive-by-wire Control System Inspection
›
Engine Speed
Engine Speed

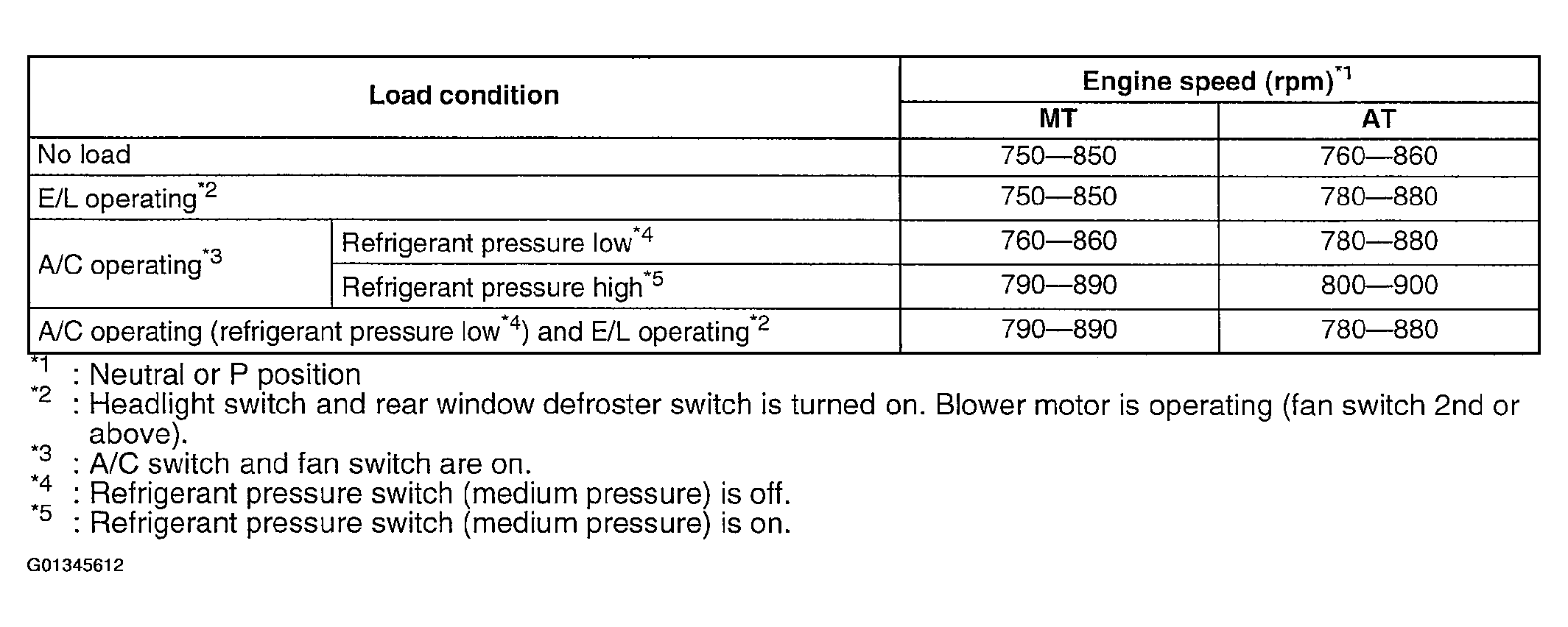

Fig 1: Checking Load At Various Engine Speeds
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
