No. 13 Knocking/Pinging/Detonation-Acceleration/Cruise
No. 13 Knocking/Pinging/Detonation-Acceleration/Cruise

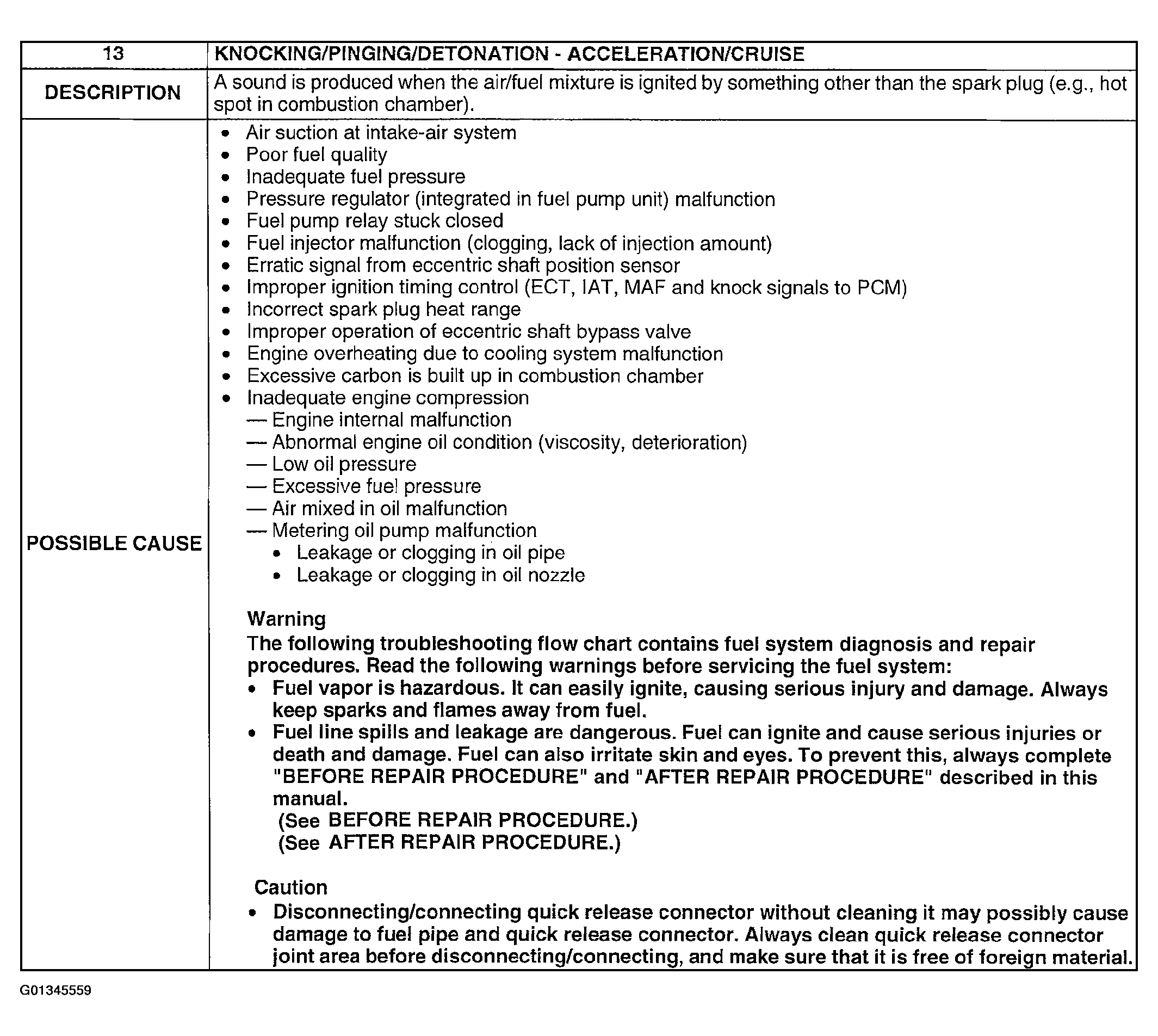

Fig 1: Possible Cause - No. 13 Knocking/Pinging/Detonation-Acceleration/Cruise
Courtesy of MAZDA MOTORS CORP.
Diagnostic Procedure

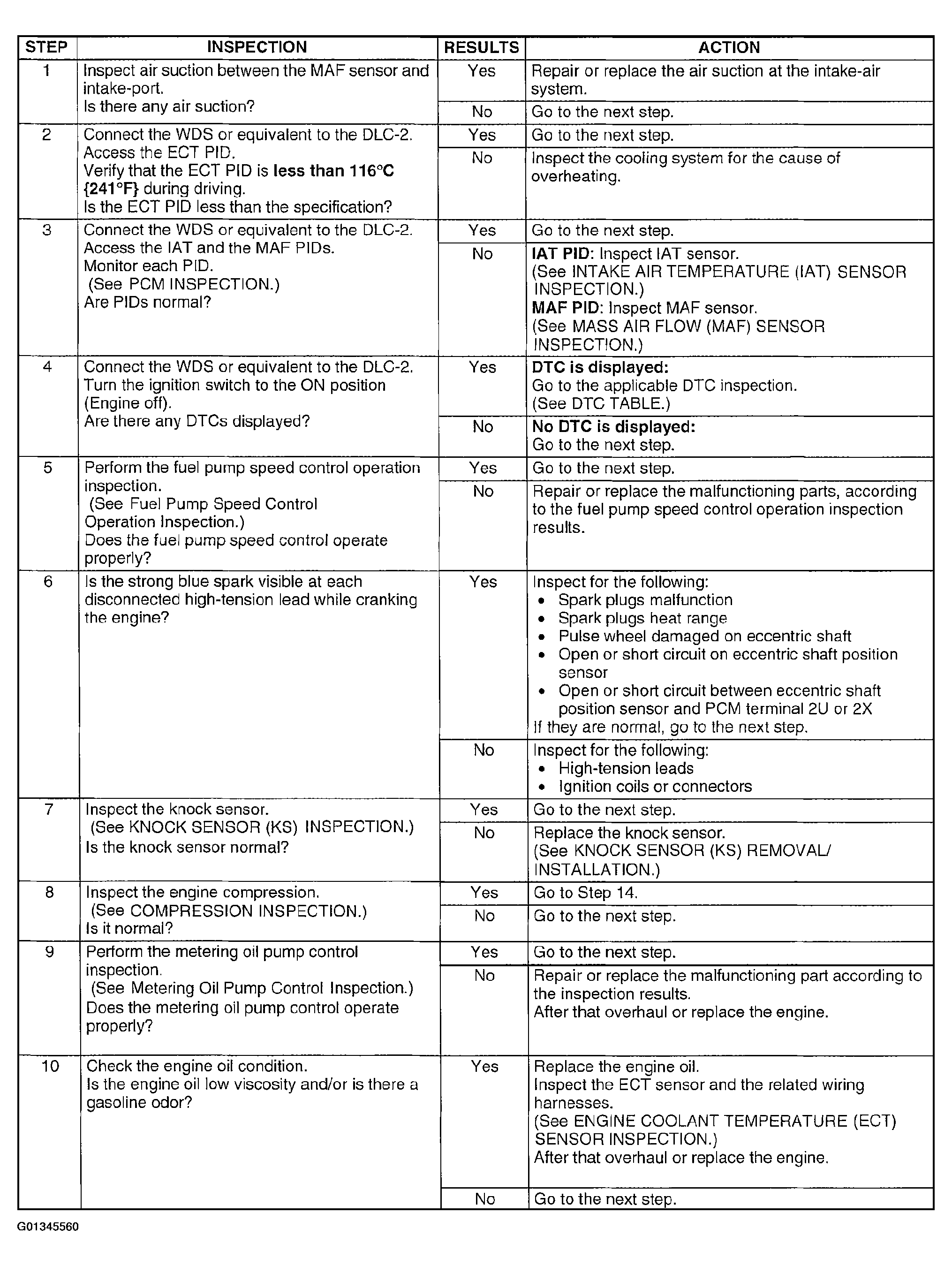

Fig 2: Diagnostic Procedure - No. 13 Knocking/Pinging/Detonation-Acceleration/Cruise (Steps 1-10)
Courtesy of MAZDA MOTORS CORP.

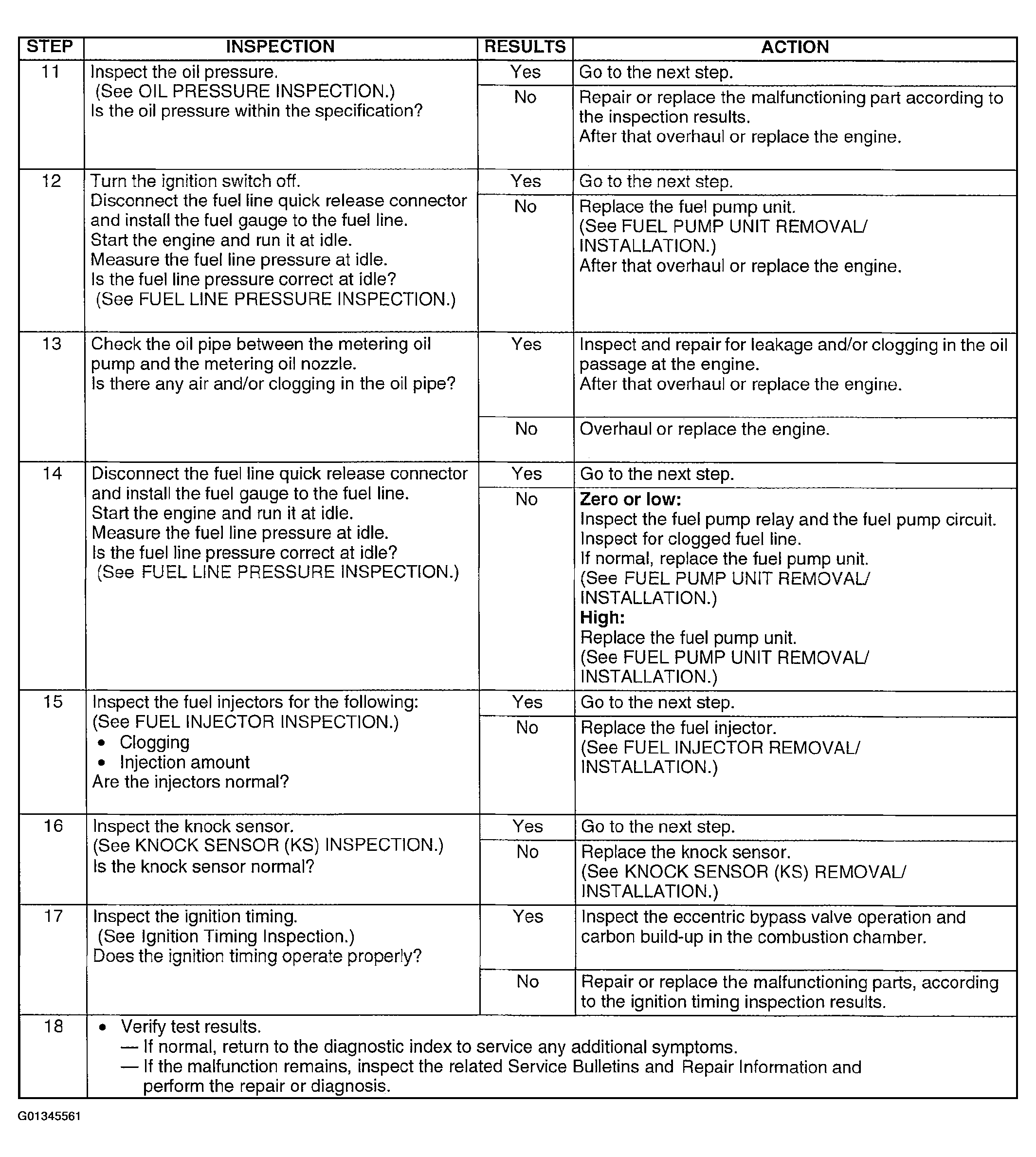

Fig 3: Diagnostic Procedure - No. 13 Knocking/Pinging/Detonation-Acceleration/Cruise (Steps 11-18)
Courtesy of MAZDA MOTORS CORP.
