No. 14 Poor Fuel Economy

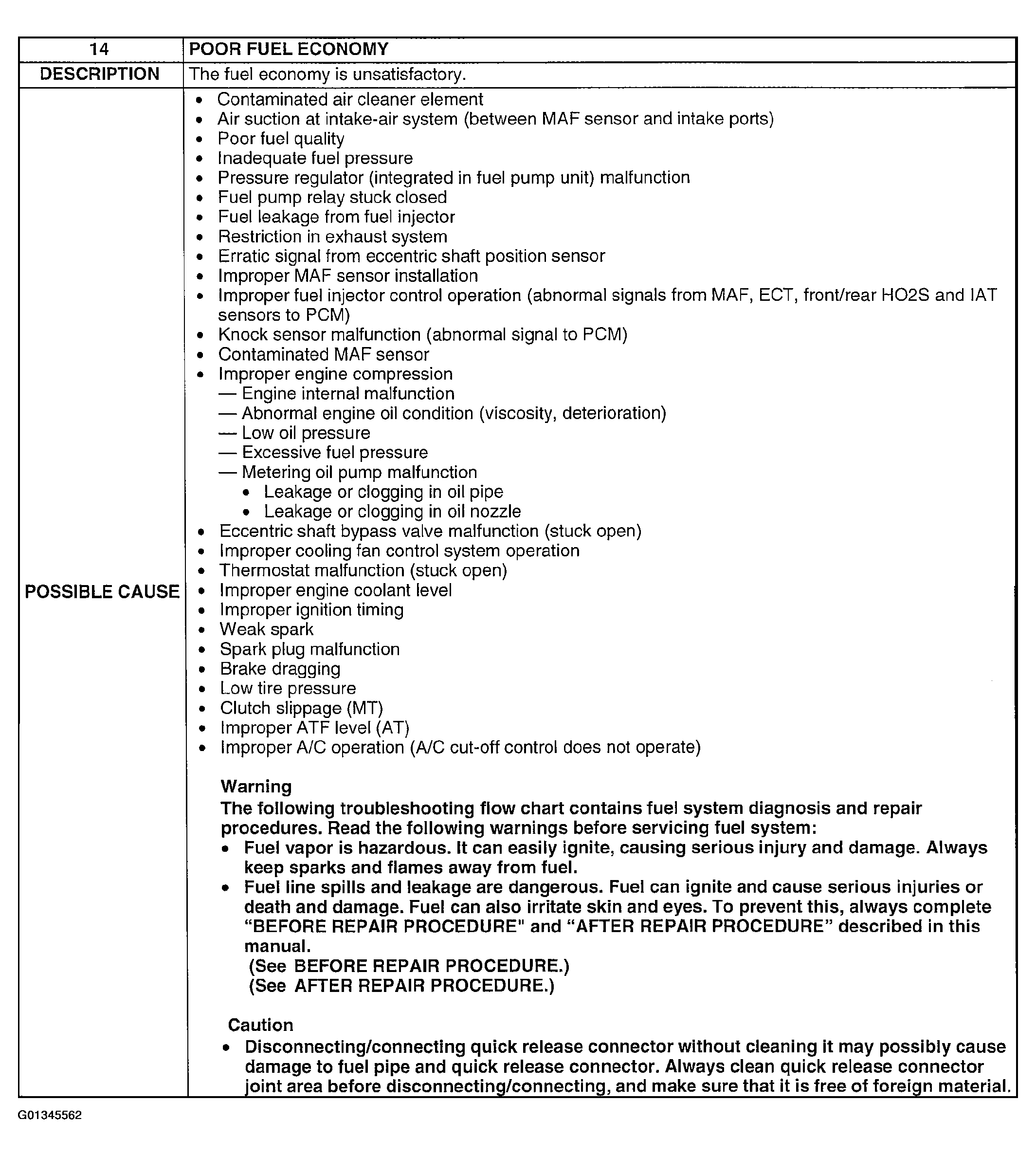

Fig 1: Possible Cause - No. 14 Poor Fuel Economy

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

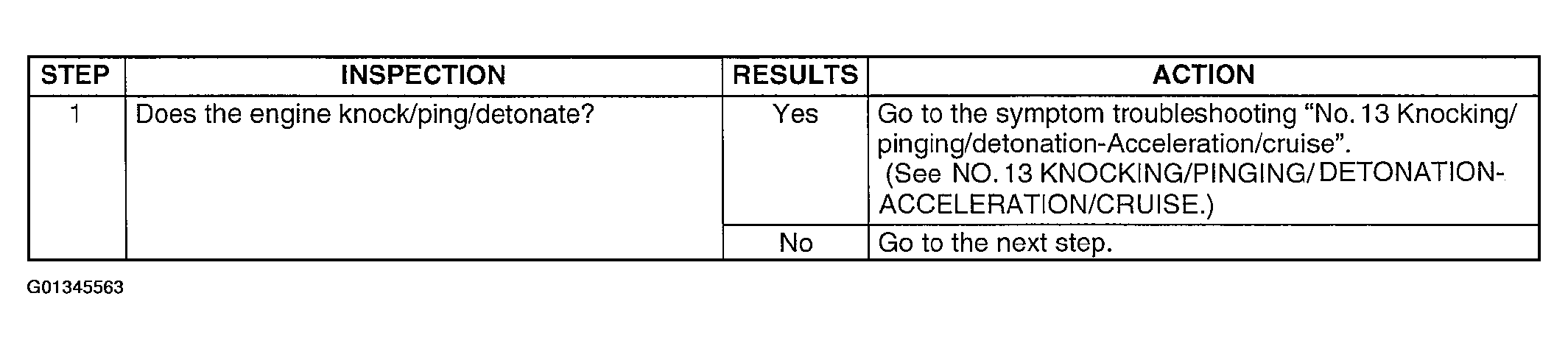

Fig 2: Diagnostic Procedure - No. 14 Poor Fuel Economy (Step 1)

Courtesy of MAZDA MOTORS CORP.

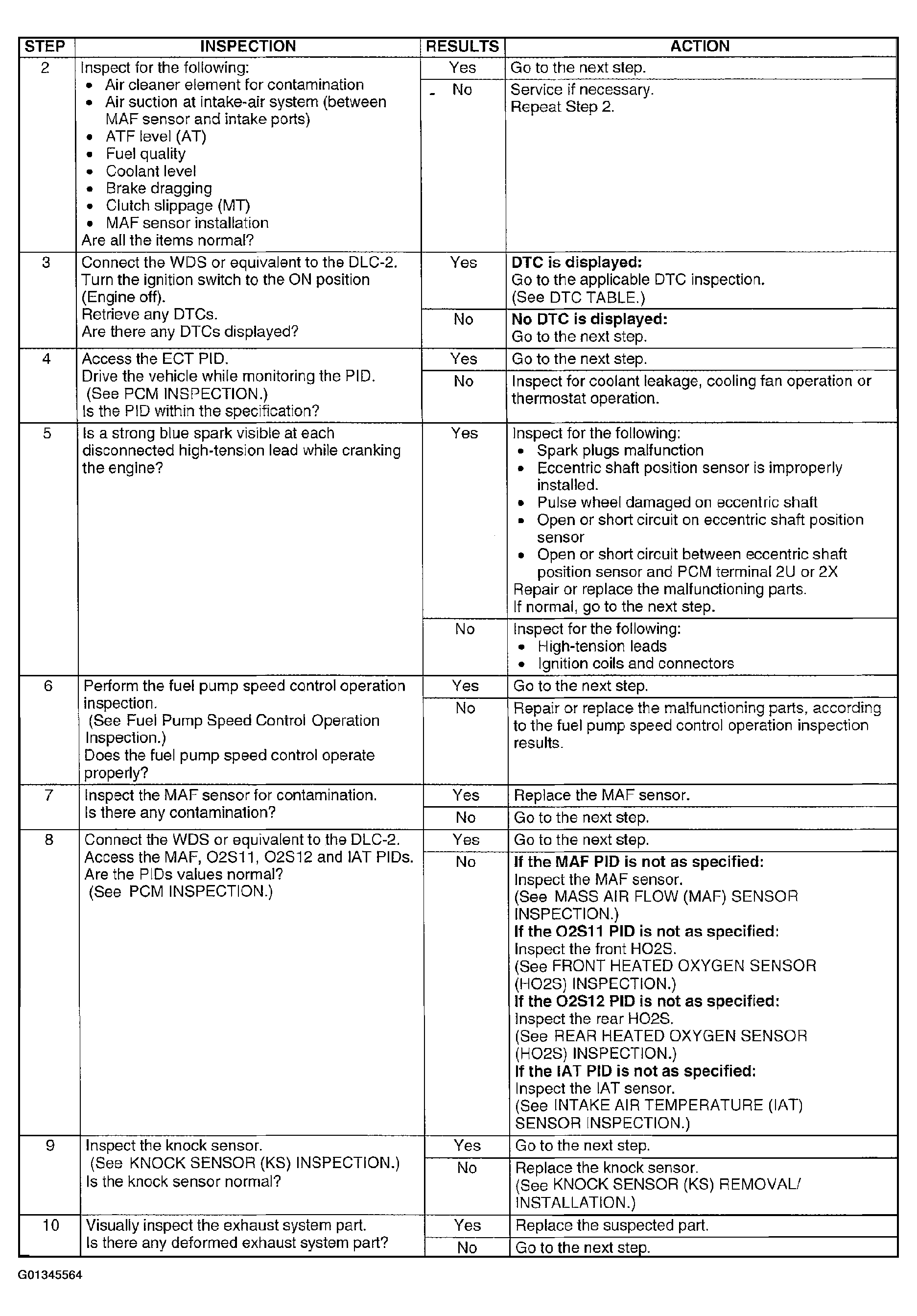

Fig 3: Diagnostic Procedure - No. 14 Poor Fuel Economy (Steps 2-10)

Courtesy of MAZDA MOTORS CORP.

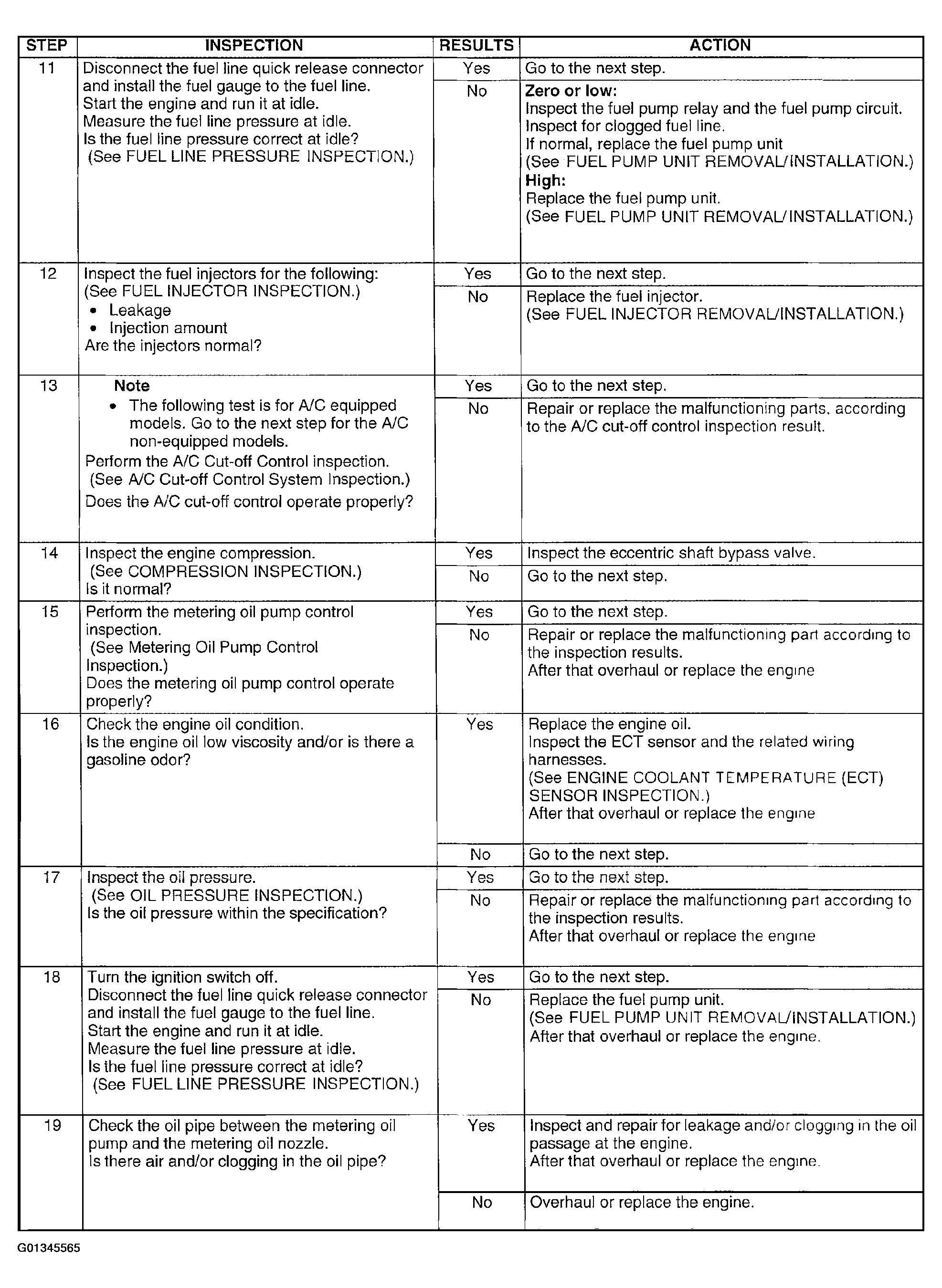

Fig 4: Diagnostic Procedure - No. 14 Poor Fuel Economy (Steps 11-19)

Courtesy of MAZDA MOTORS CORP.

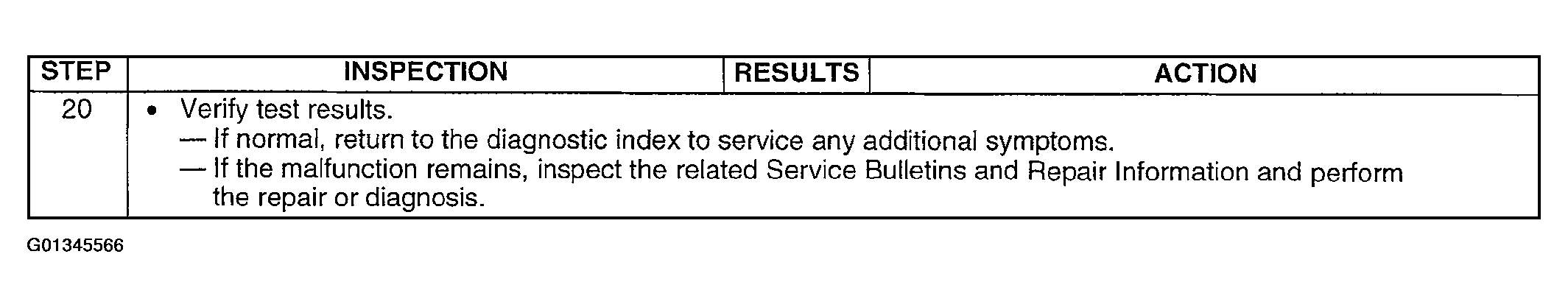

Fig 5: Diagnostic Procedure - No. 14 Poor Fuel Economy (Step 20)

Courtesy of MAZDA MOTORS CORP.
