No. 21 Engine Noise

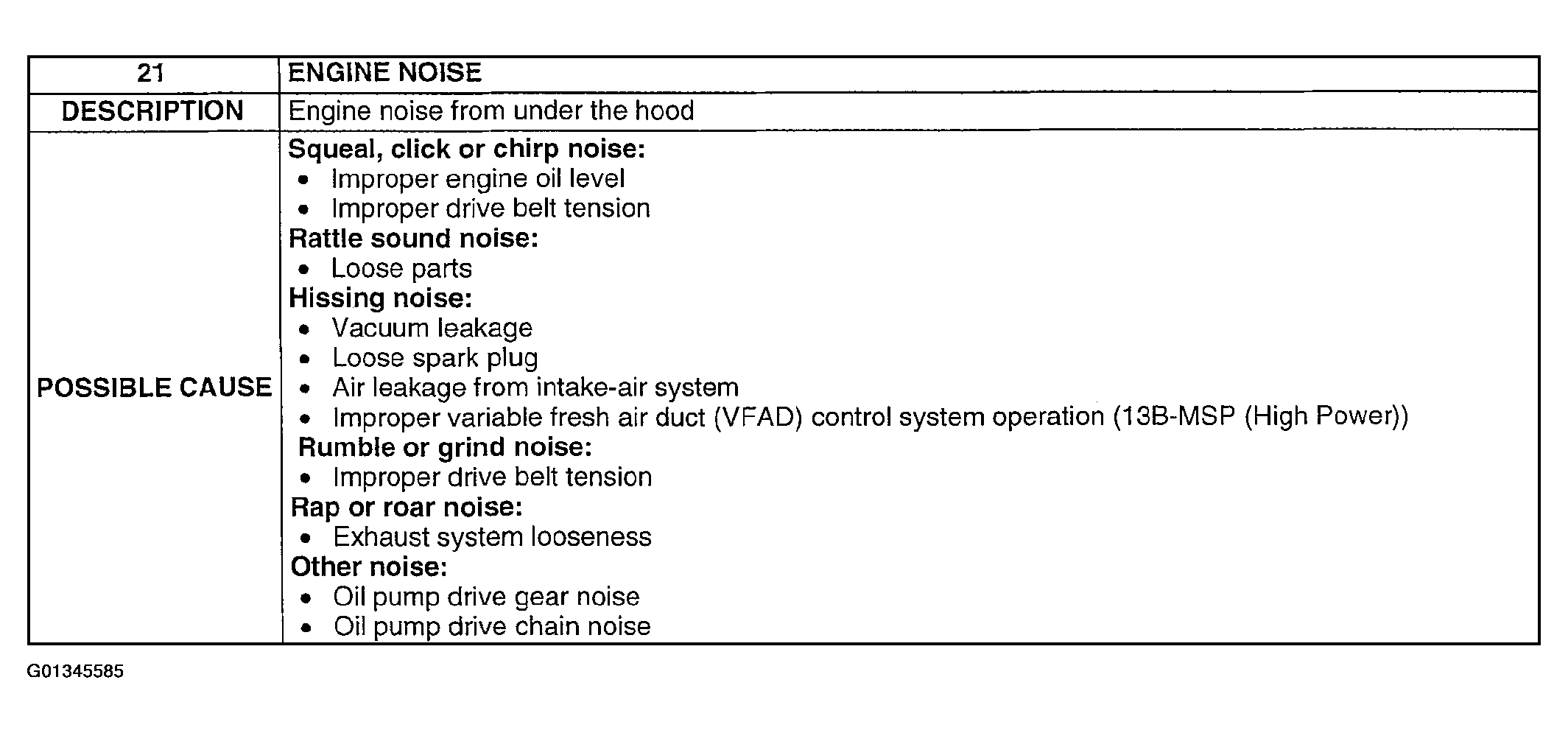

Fig 1: Possible Cause - No. 21 Engine Noise
G01345585Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

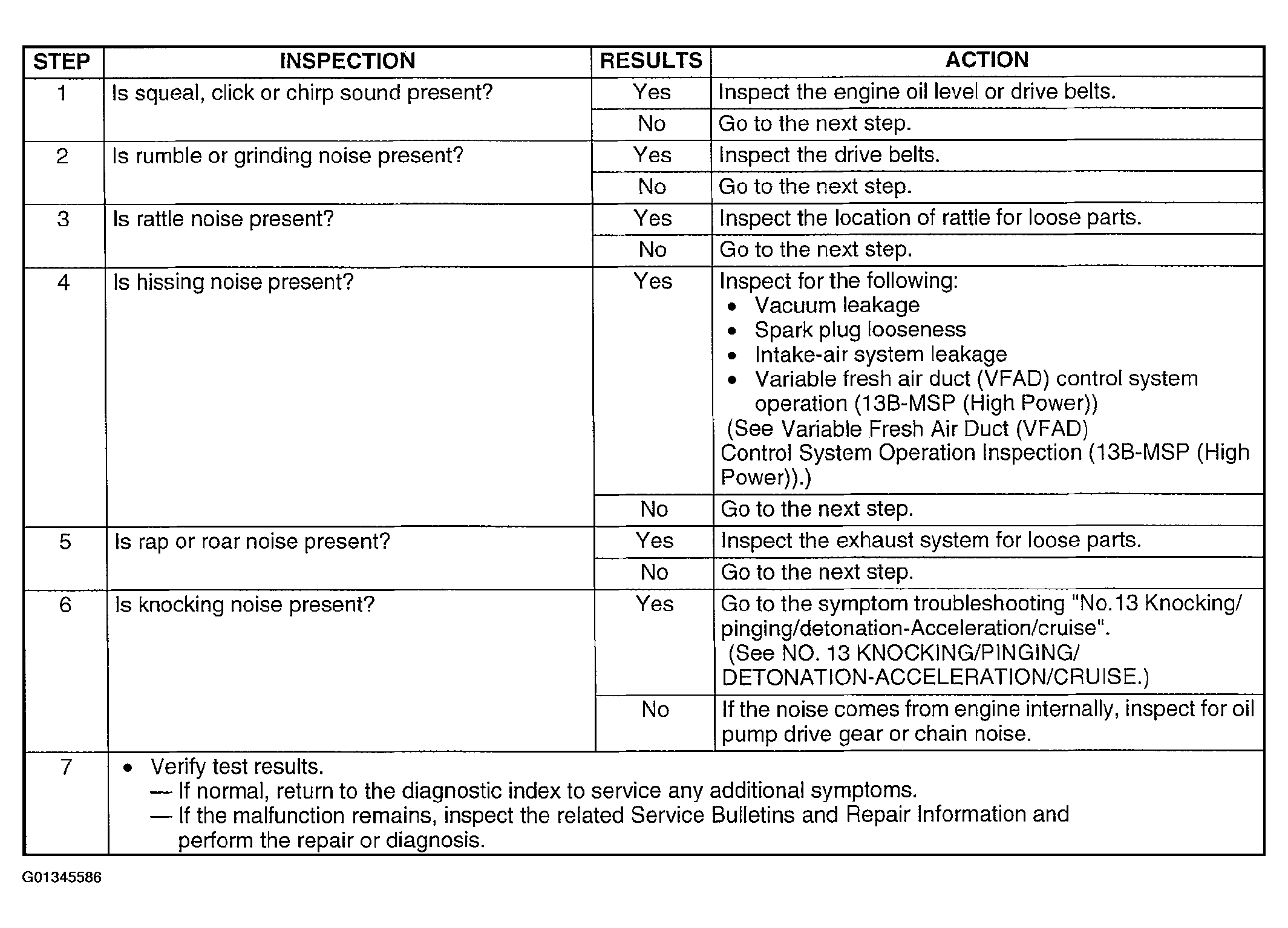

Fig 2: Diagnostic Procedure - No. 21 Engine Noise
G01345586Courtesy of MAZDA MOTORS CORP.
