No. 23 A/C Does Not Work Sufficiently

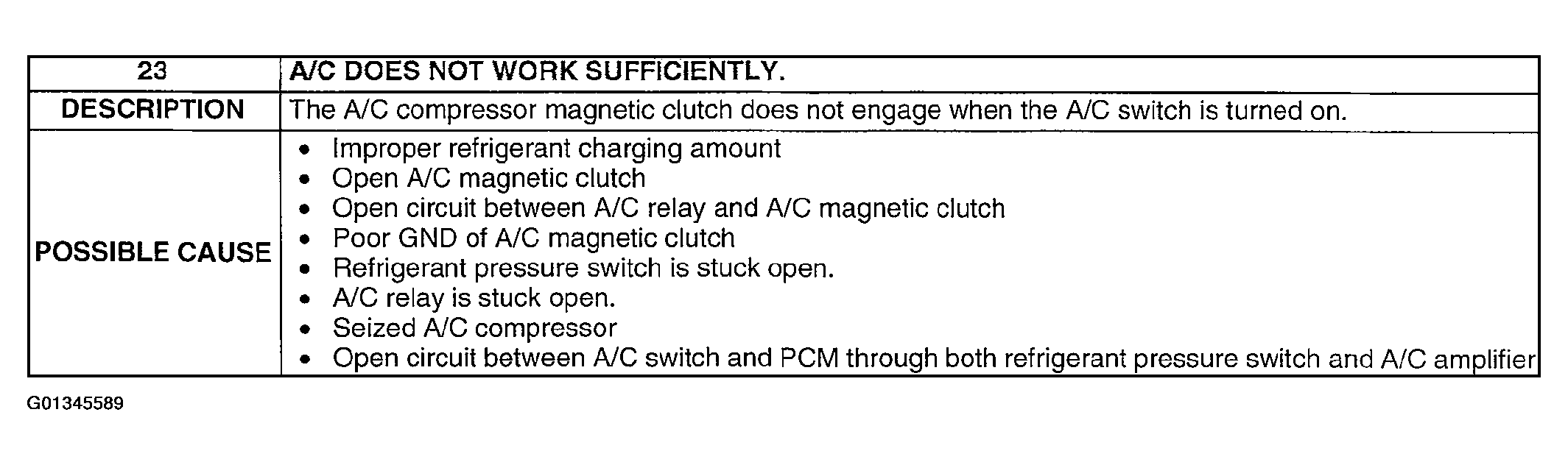

Fig 1: Possible Cause - No. 23 A/C Does Not Work Sufficiently

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

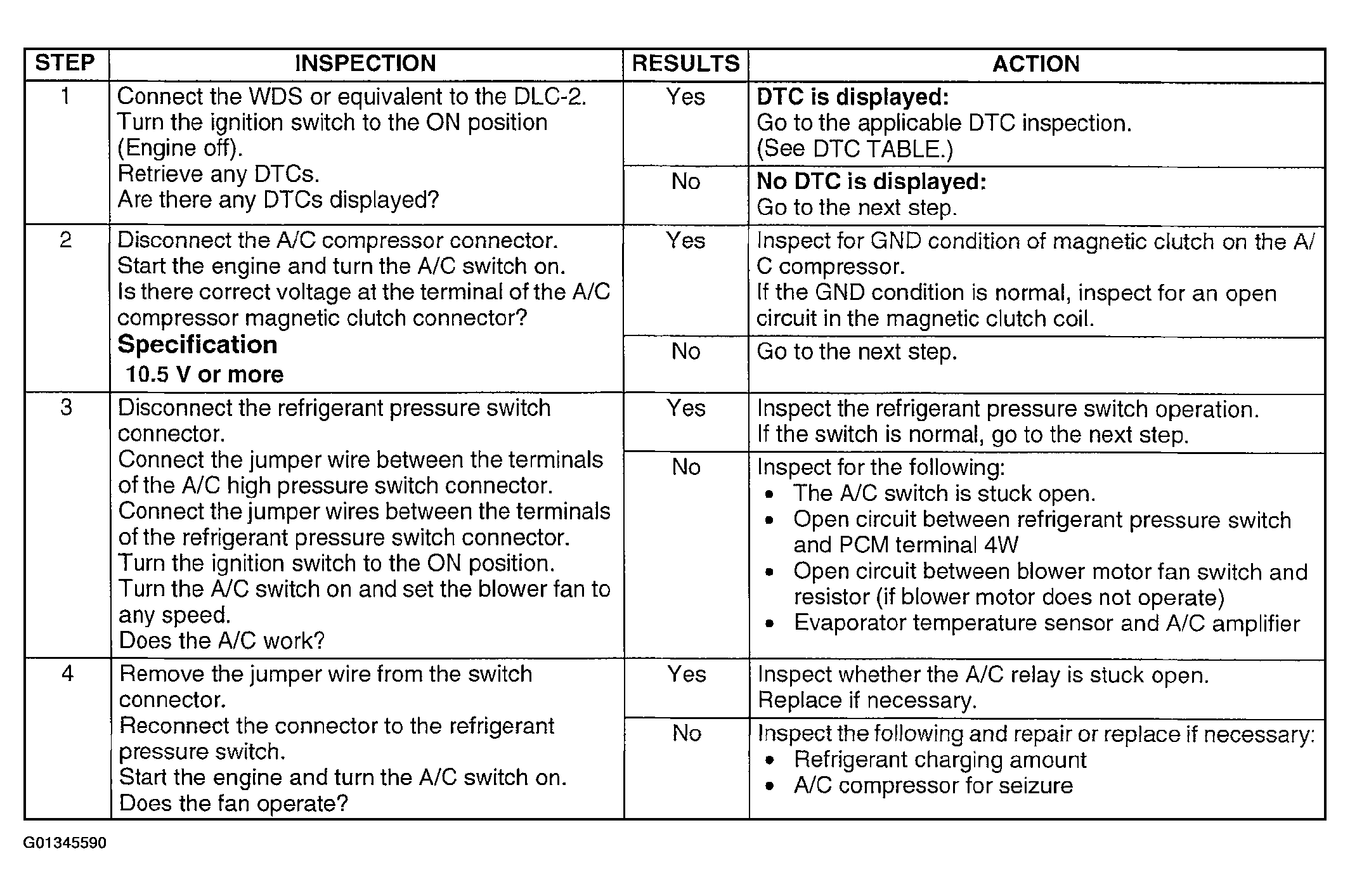

Fig 2: Diagnostic Procedure - No. 23 A/C Does Not Work Sufficiently (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

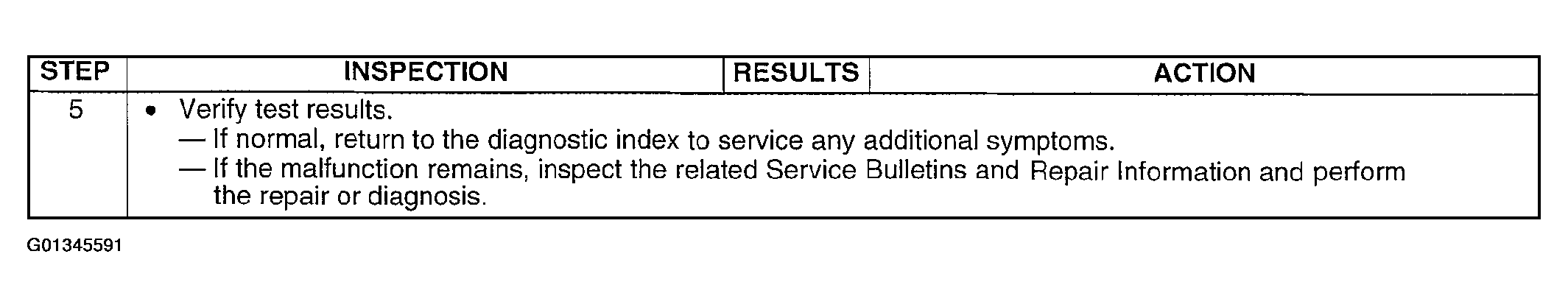

Fig 3: Diagnostic Procedure - No. 23 A/C Does Not Work Sufficiently (Step 5)

Courtesy of MAZDA MOTORS CORP.
