No. 29 Spark Plug Condition

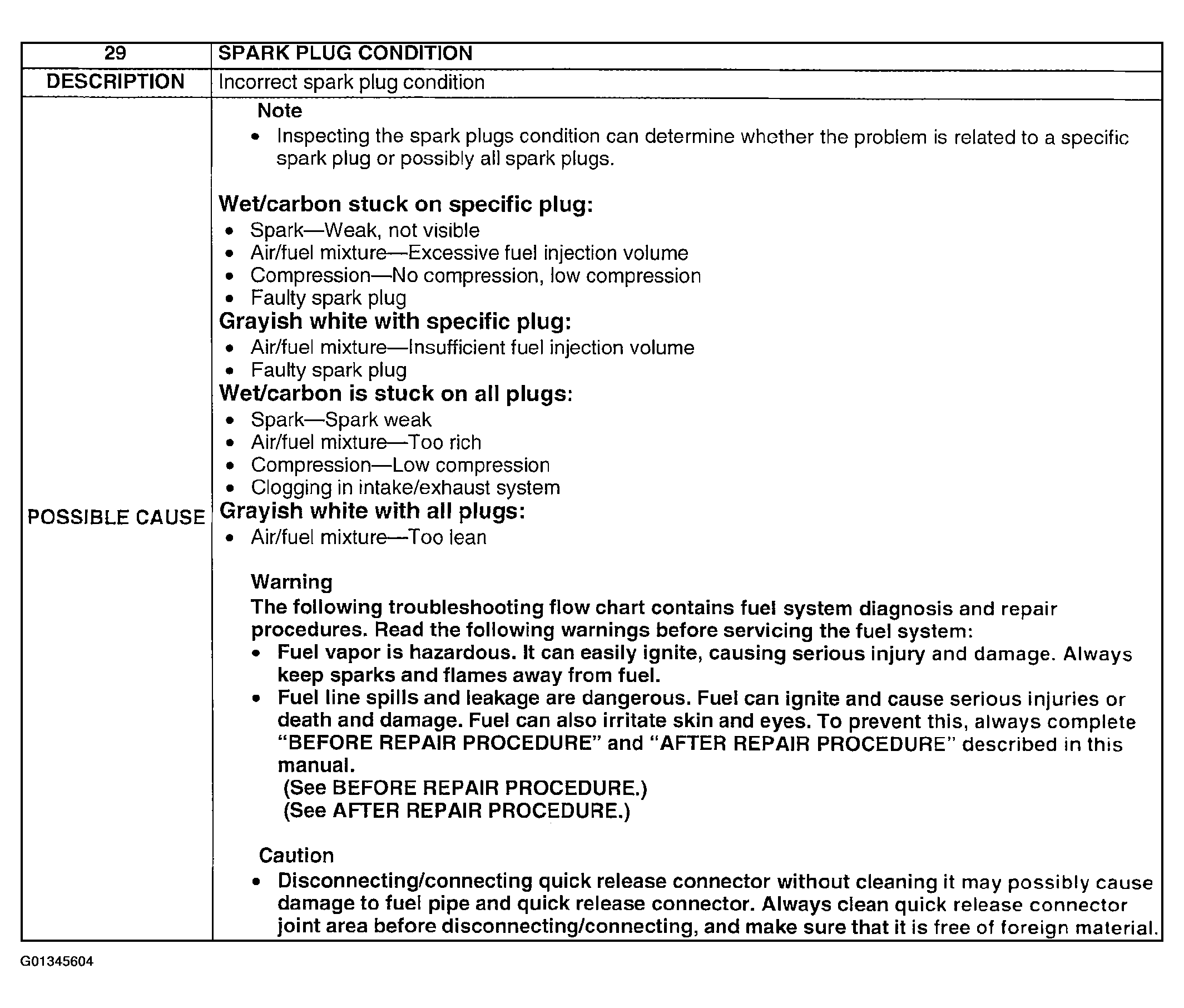

Fig 1: Possible Cause - No. 29 Spark Plug Condition

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

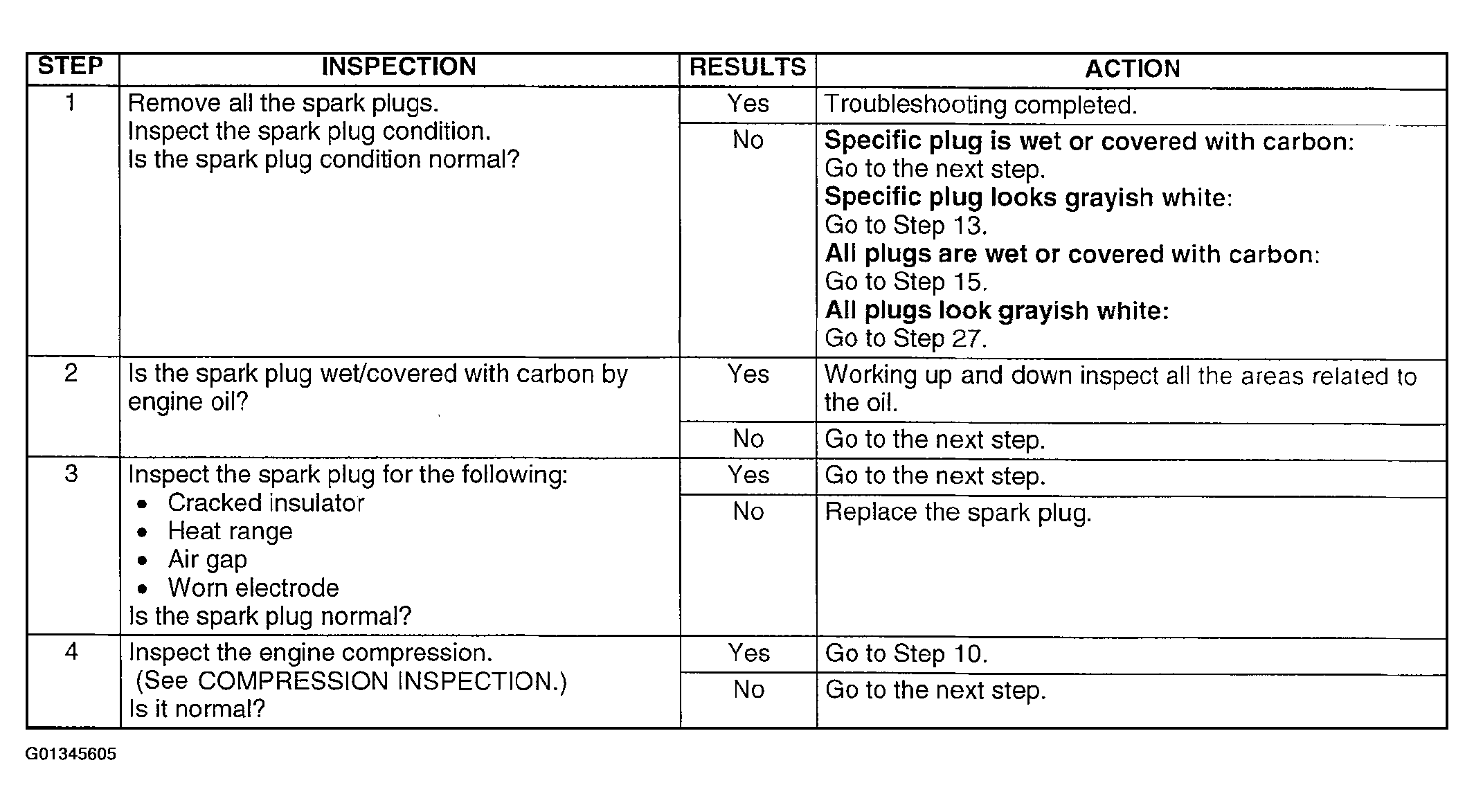

Fig 2: Diagnostic Procedure - No. 29 Spark Plug Condition (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

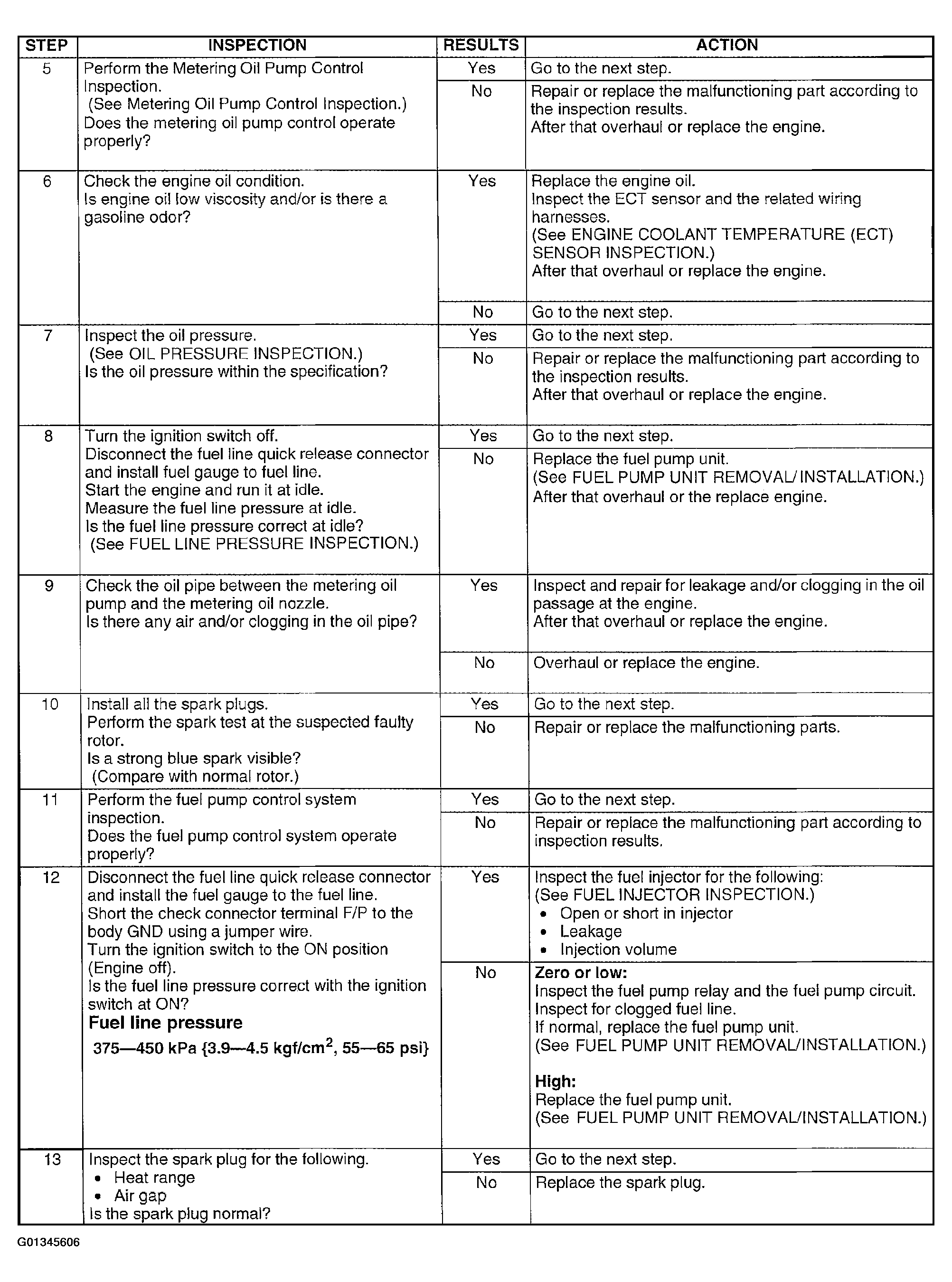

Fig 3: Diagnostic Procedure - No. 29 Spark Plug Condition (Steps 5-13)

Courtesy of MAZDA MOTORS CORP.

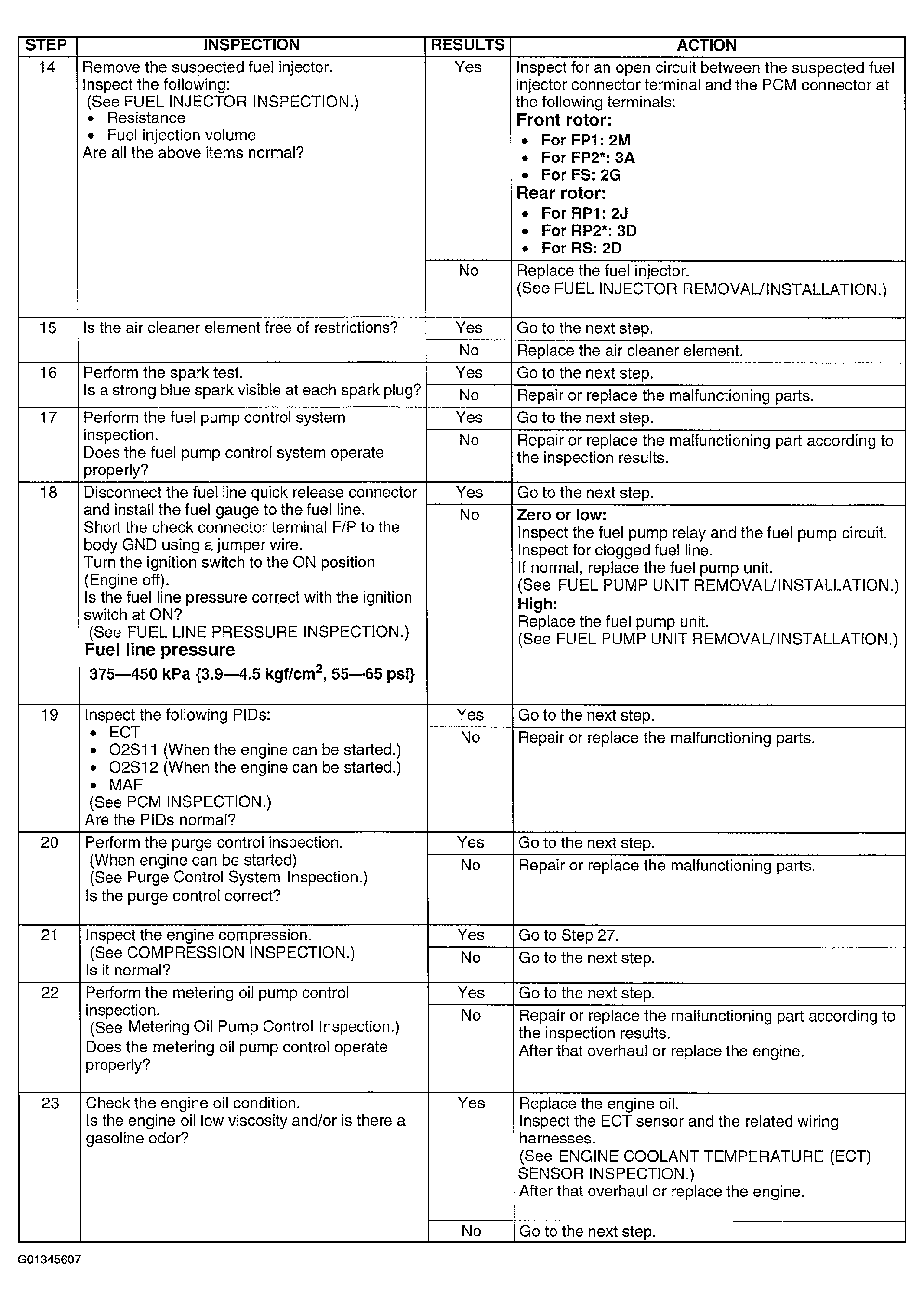

Fig 4: Diagnostic Procedure - No. 29 Spark Plug Condition (Steps 14-23)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Diagnostic Procedure - No. 29 Spark Plug Condition (Steps 24-30)

Courtesy of MAZDA MOTORS CORP.
