No. 9 Fast Idle/Runs On

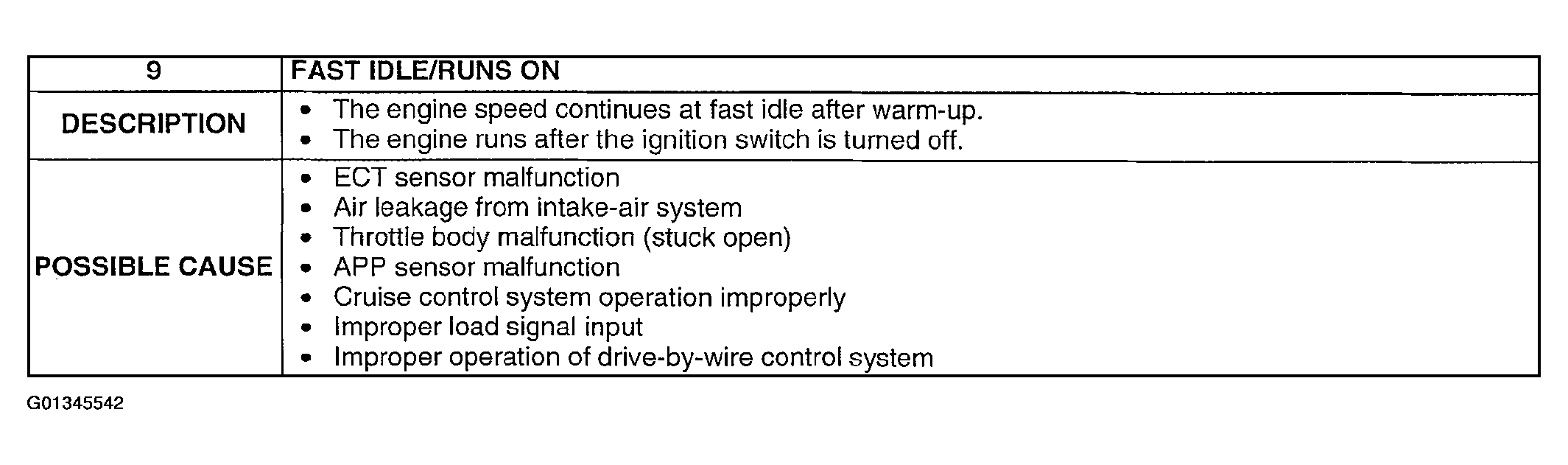

Fig 1: Possible Cause - No. 9 Fast Idle/Runs On
G01345542Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

Fig 2: Diagnostic Procedure - No. 9 Fast Idle/Runs On
G01345543Courtesy of MAZDA MOTORS CORP.
