Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL .

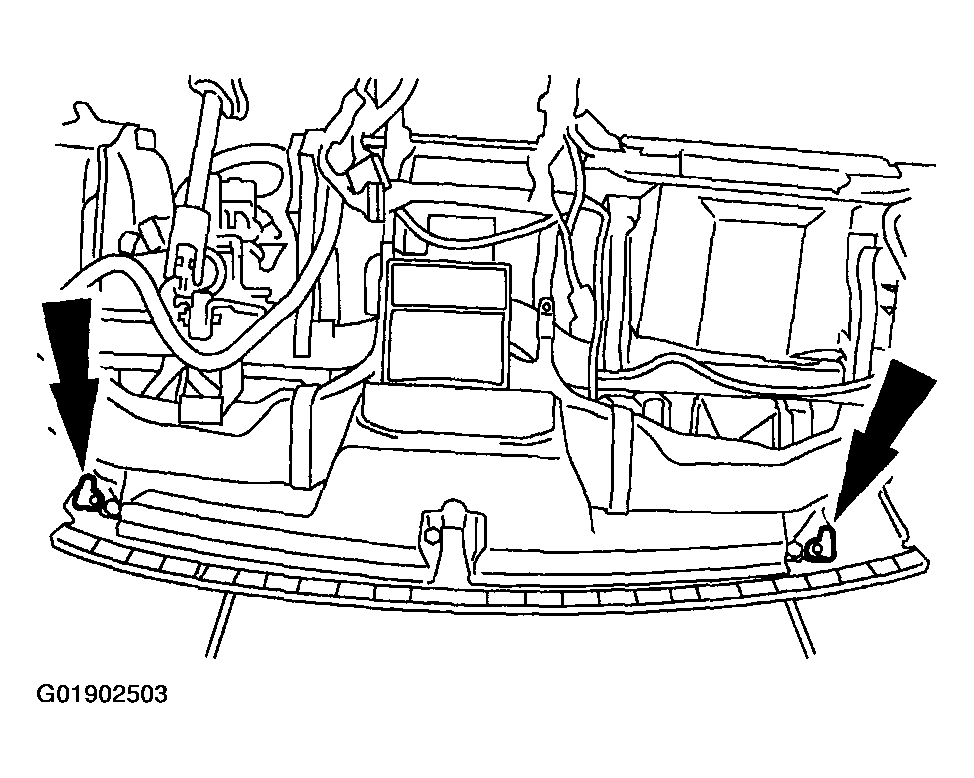

Fig 1: Removing Screws & Retaining Guides
Courtesy of MAZDA MOTORS CORP.
Remove the screws and the retaining guides.

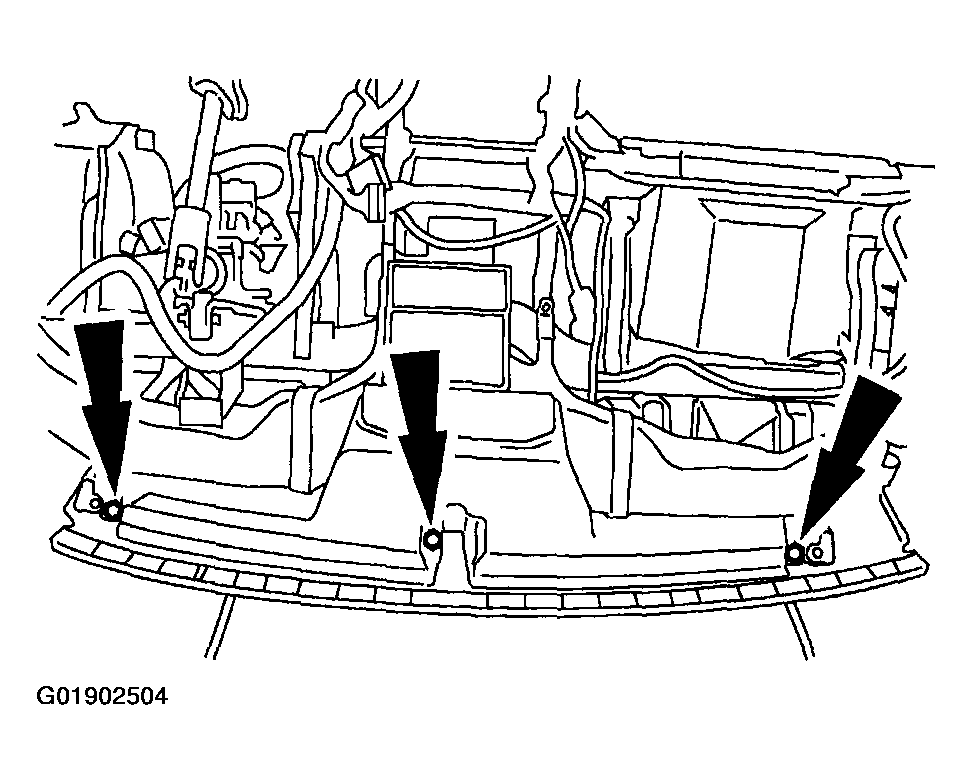

Fig 2: Removing Duct
Courtesy of MAZDA MOTORS CORP.
Remove the screws and remove the duct.
To install, reverse the removal procedure.
