Technical Data [Steering)
›
Steering System
Steering System

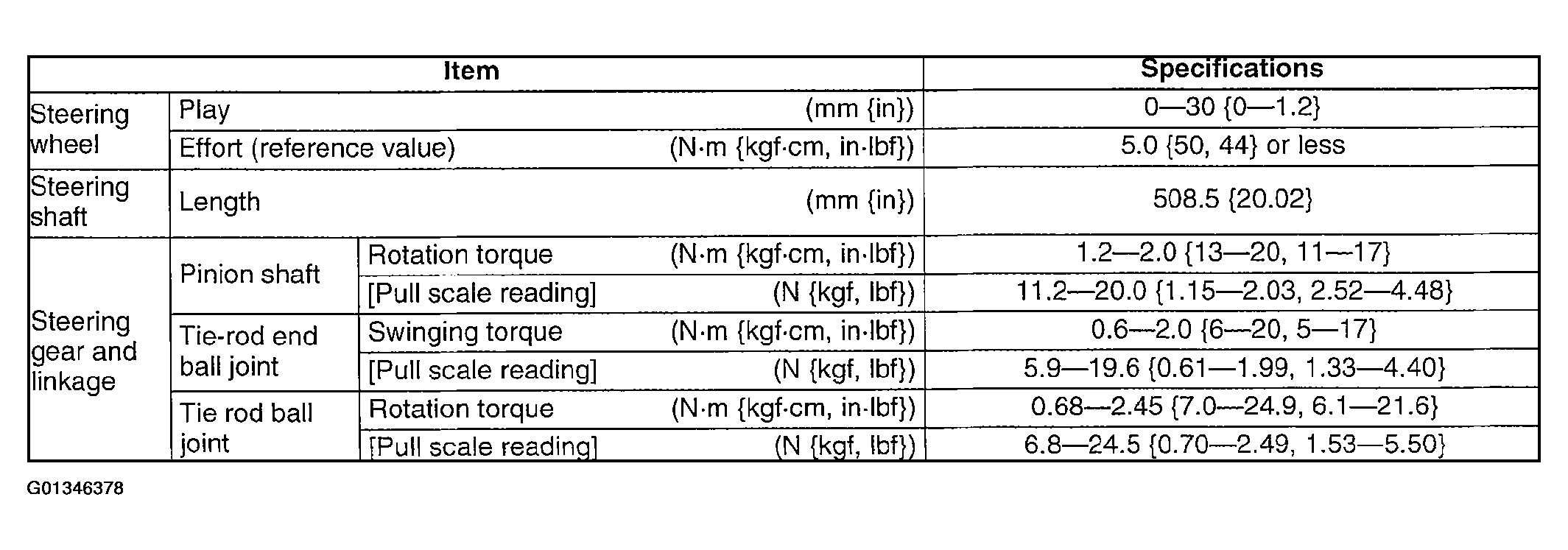

Fig 1: Technical Data - Steering System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
