Transmission/Transaxle Technical Data

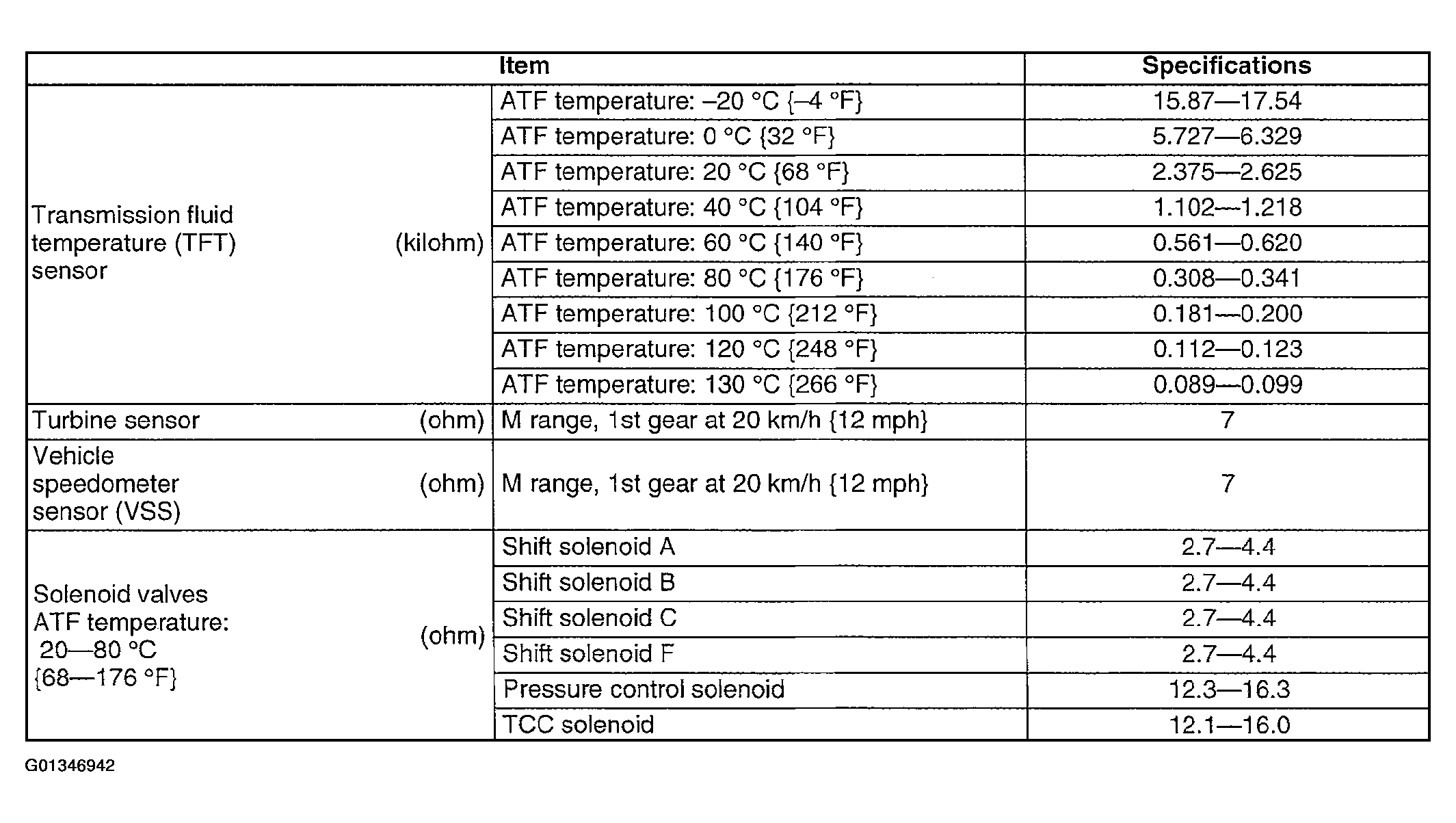

Fig 1: Transmission/Transaxle Technical Data (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

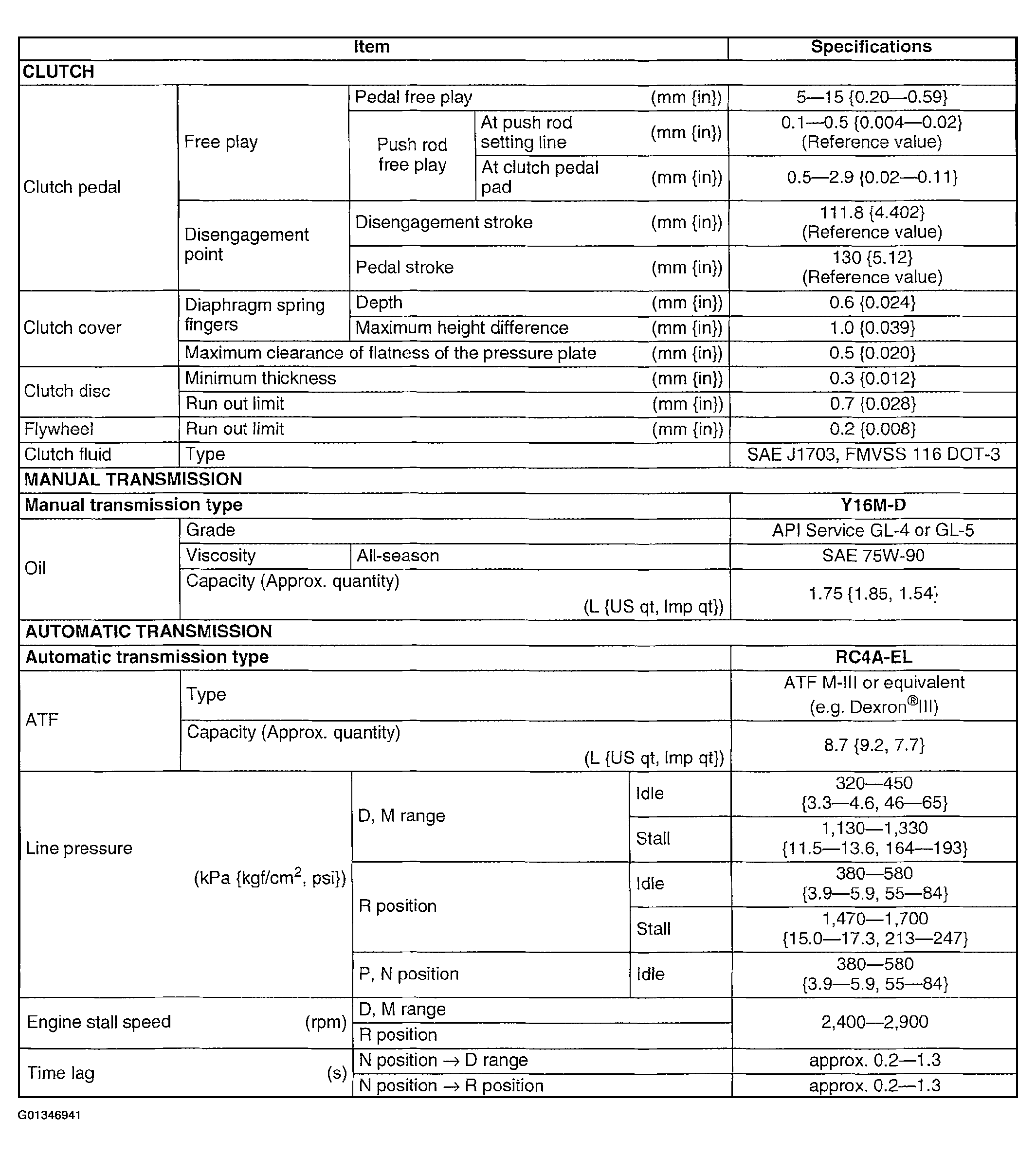

Fig 2: Transmission/Transaxle Technical Data (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
