DTC P0076: VDI Solenoid Valve Control Circuit Low

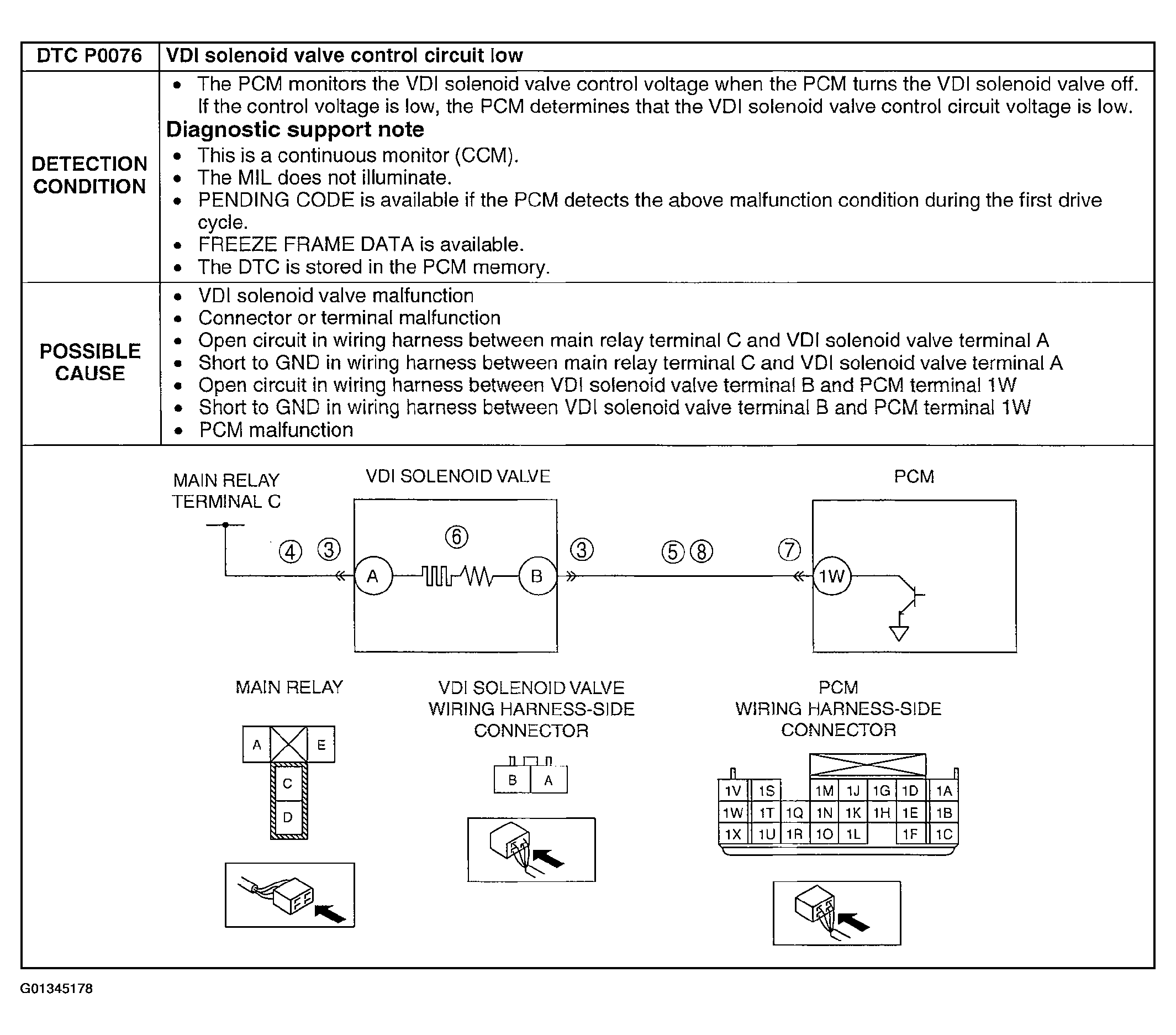

Fig 1: DTC P0076 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

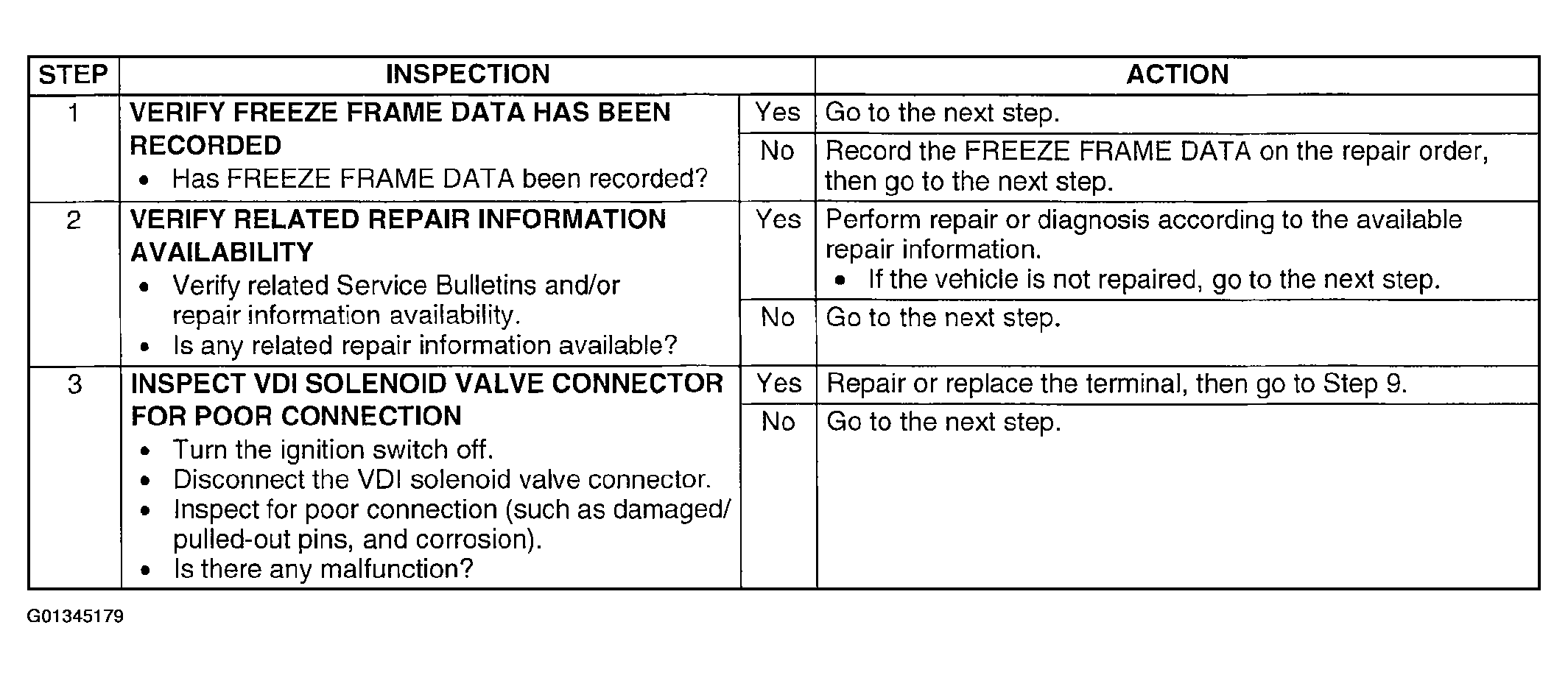

Fig 2: DTC P0076 Diagnostic Procedure Chart (Step 1-3)

Courtesy of MAZDA MOTORS CORP.

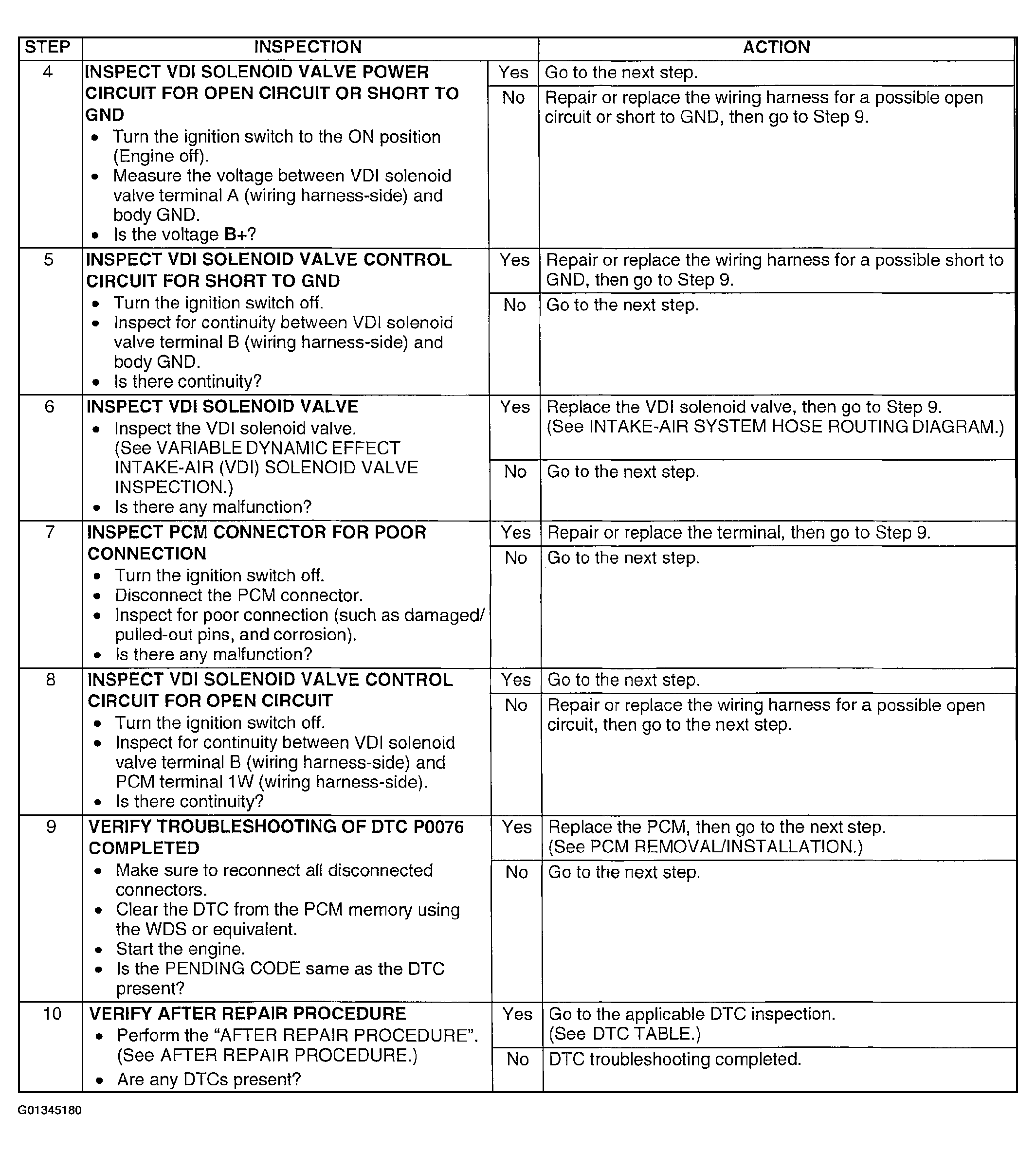

Fig 3: DTC P0076 Diagnostic Procedure Chart (Step 4-10)

Courtesy of MAZDA MOTORS CORP.
