DTC P2260: Air Solenoid Valve Control Circuit High

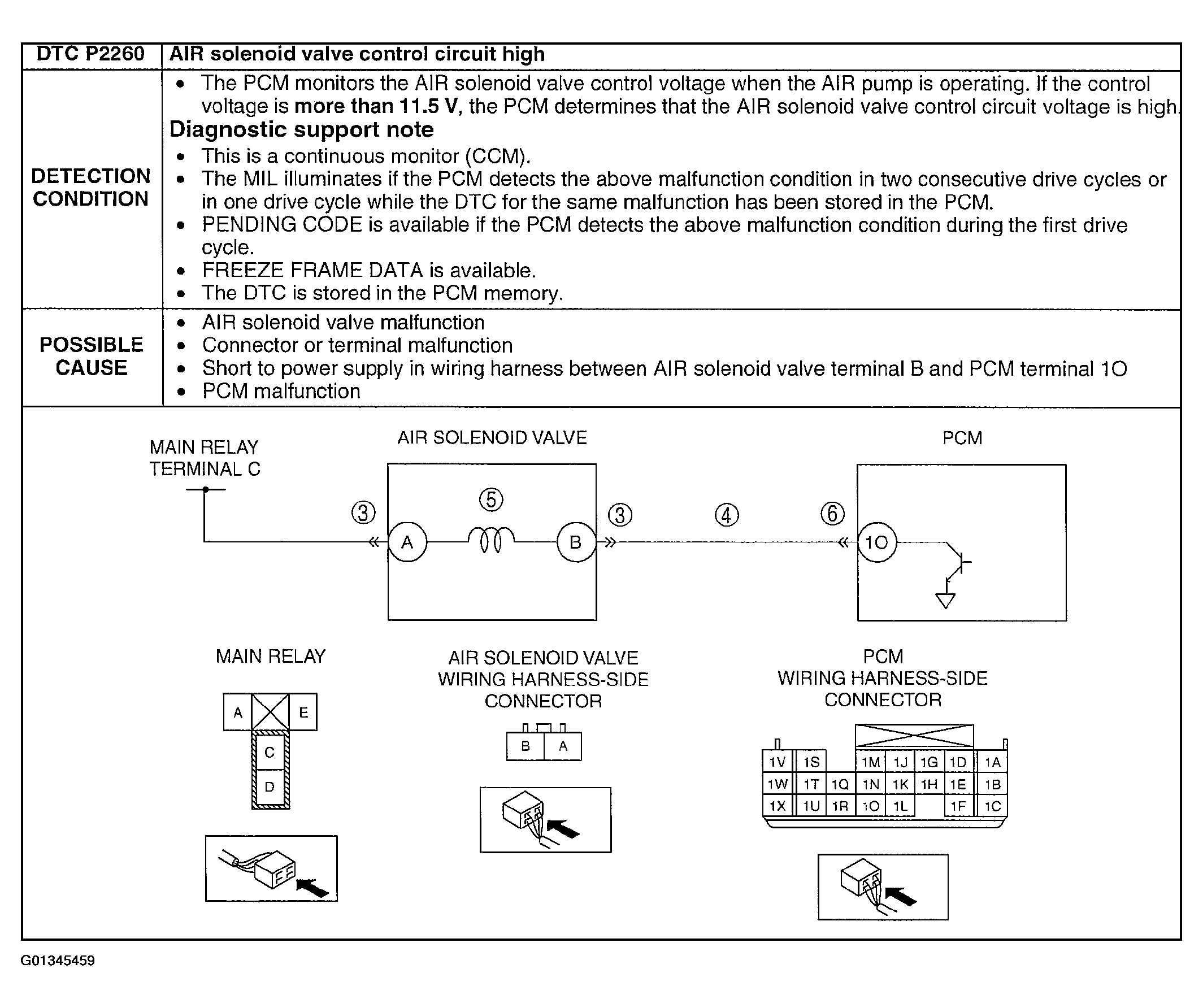

Fig 1: DTC P2260 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

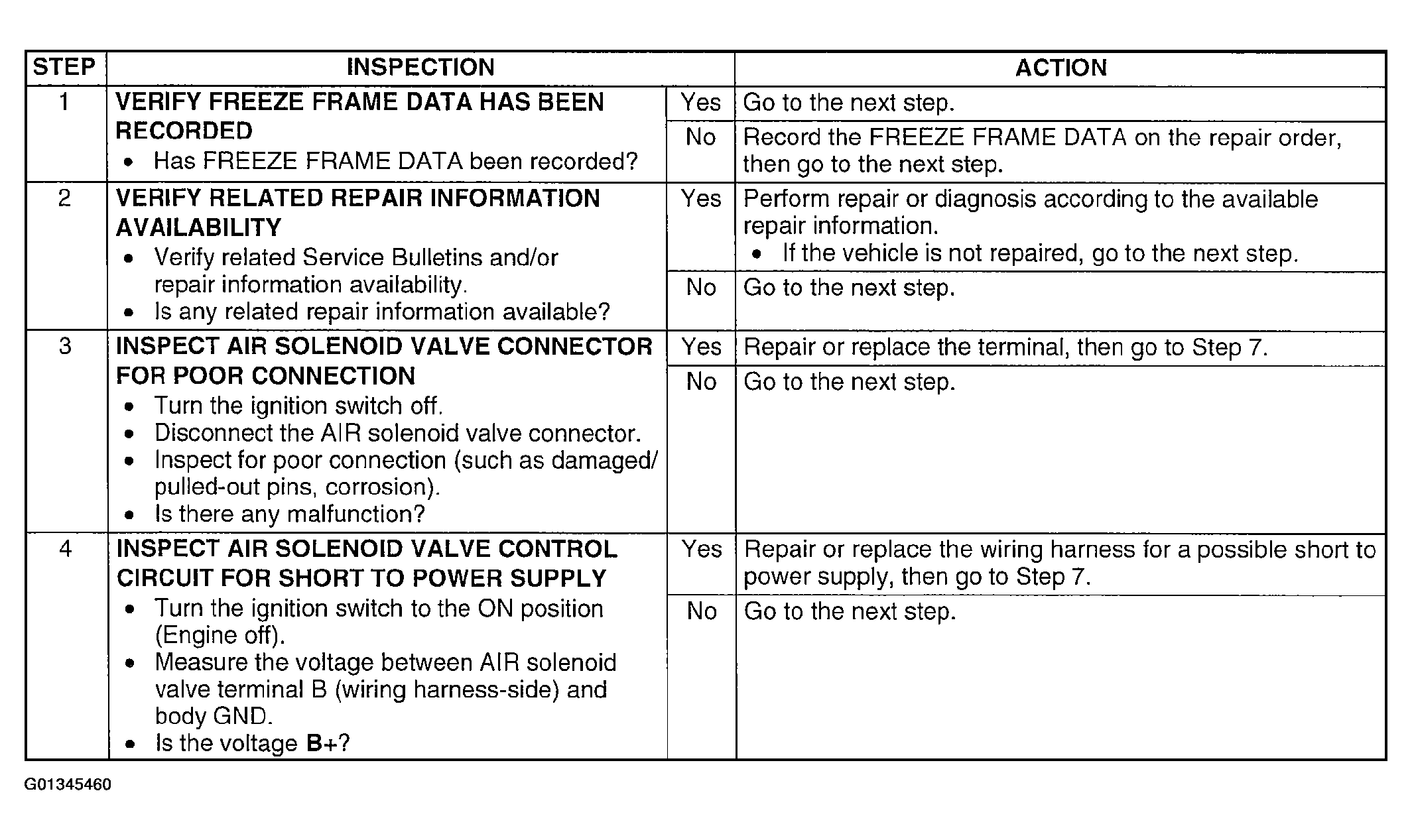

Fig 2: DTC P2260 Diagnostic Procedure Chart (Step 1-4)

Courtesy of MAZDA MOTORS CORP.

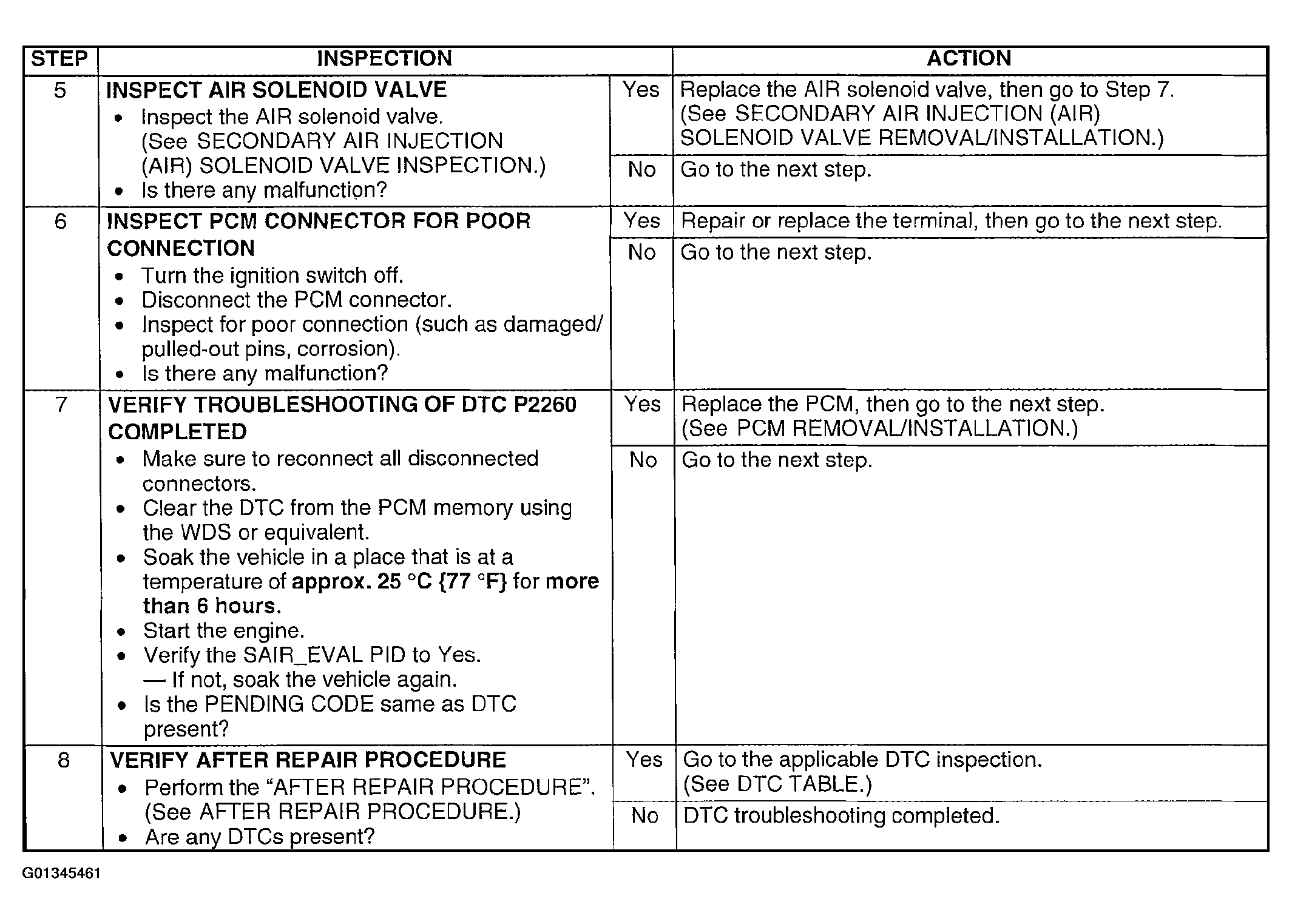

Fig 3: DTC P2260 Diagnostic Procedure Chart (Step 5-8)

Courtesy of MAZDA MOTORS CORP.
