No. 3 Will Not Crank

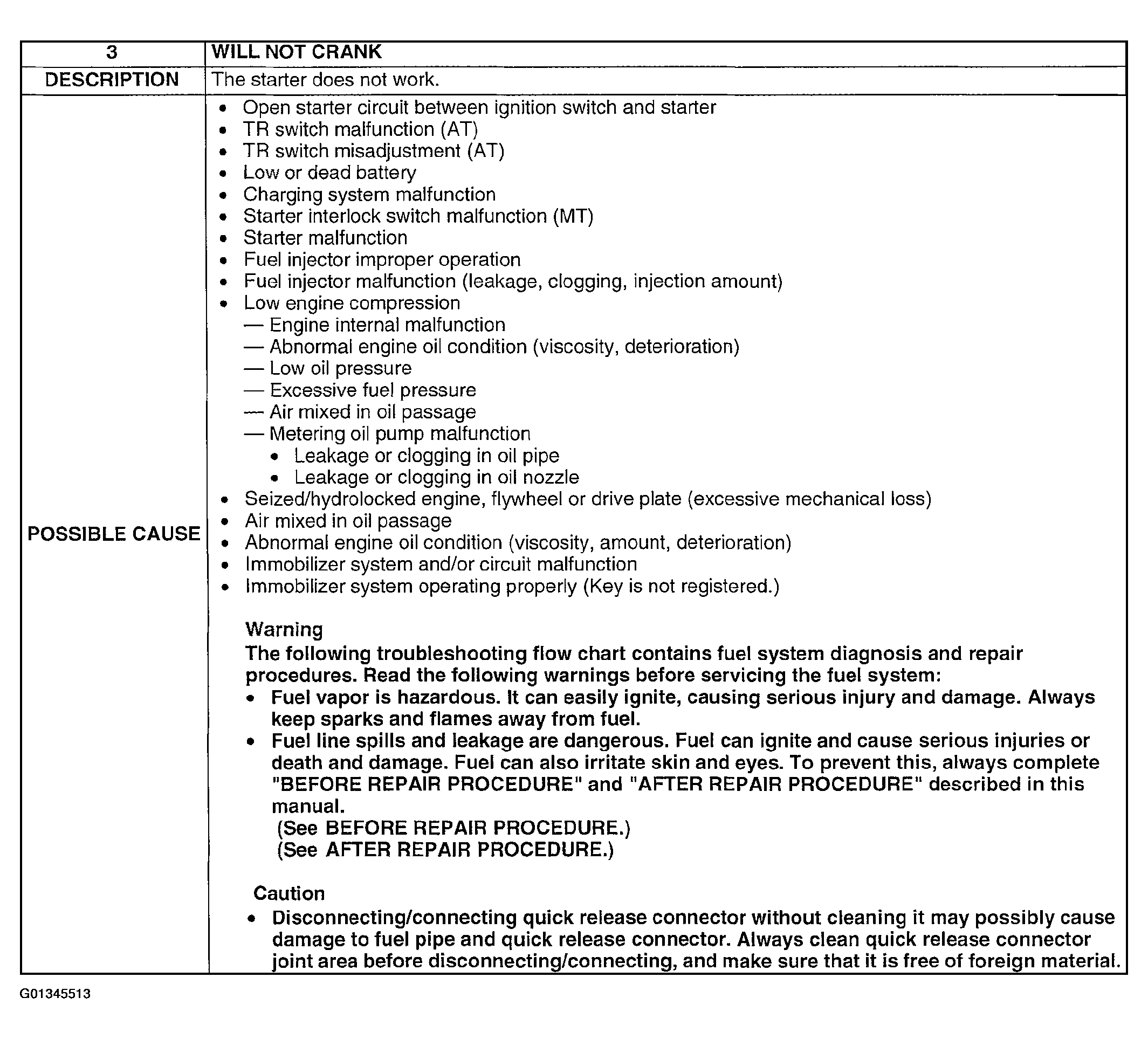

Fig 1: Possible Cause - No. 3 Will Not Crank

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

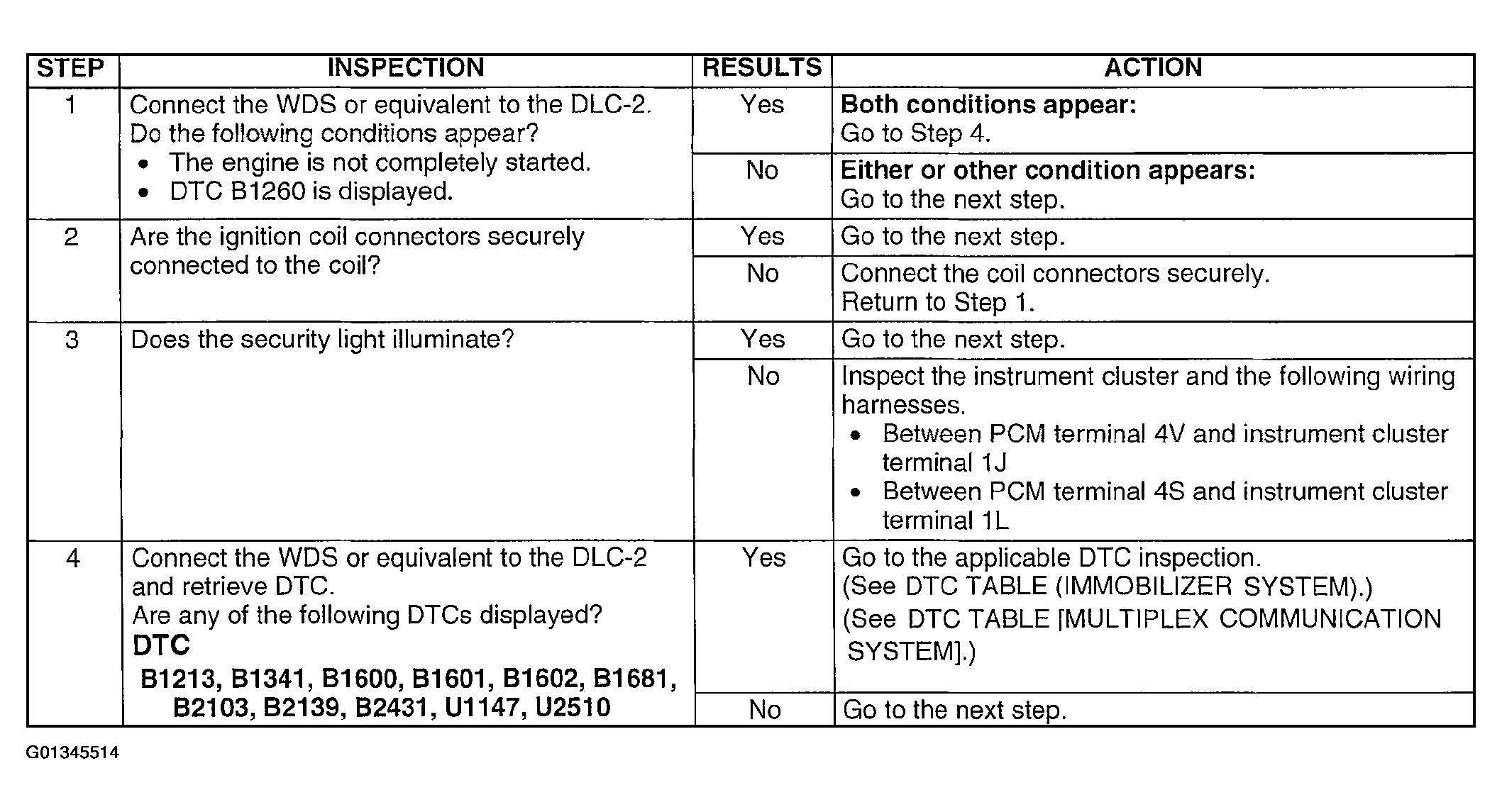

Fig 2: Diagnostic Procedure - No. 3 Will Not Crank (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

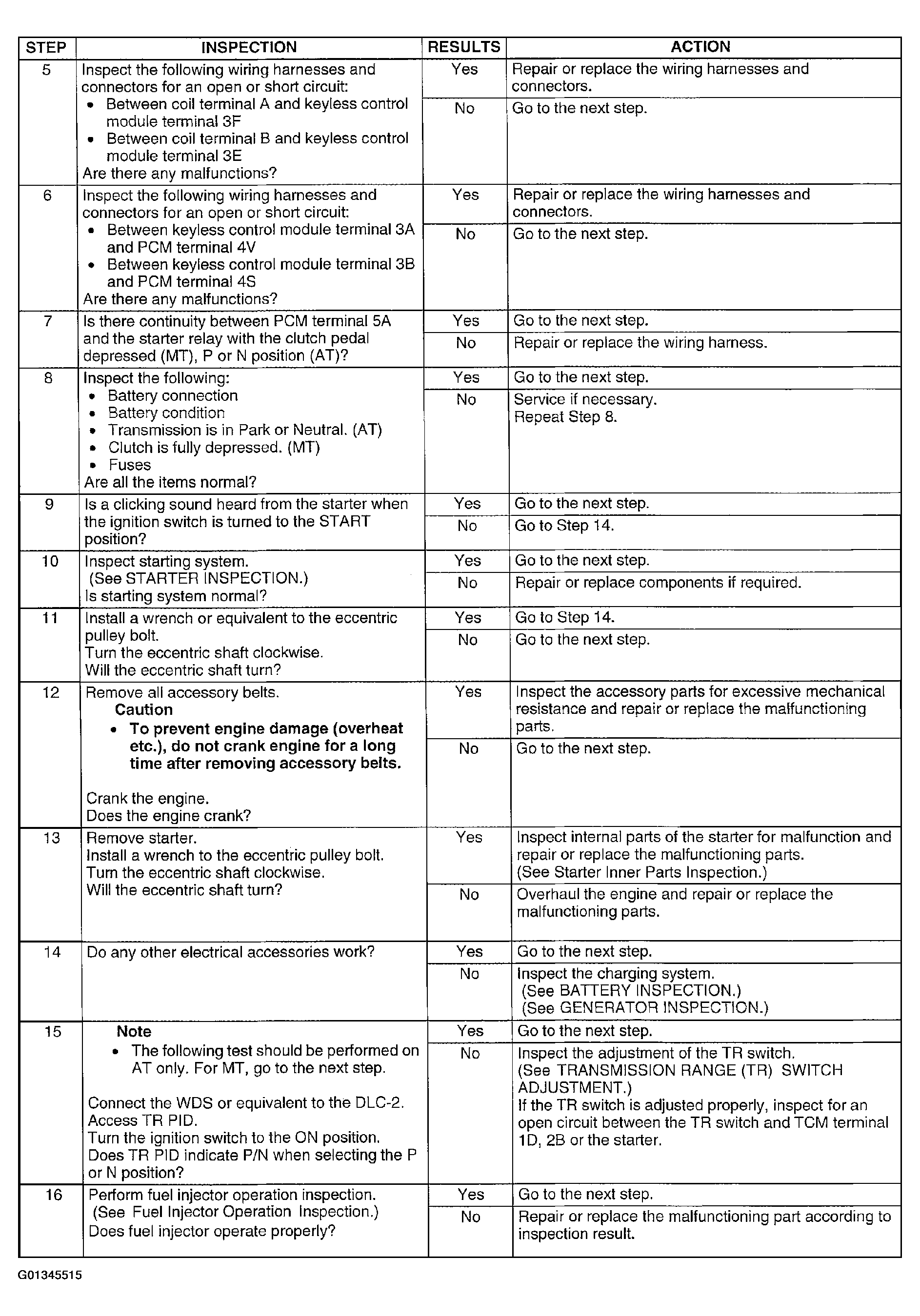

Fig 3: Diagnostic Procedure - No. 3 Will Not Crank (Steps 5-16)

Courtesy of MAZDA MOTORS CORP.

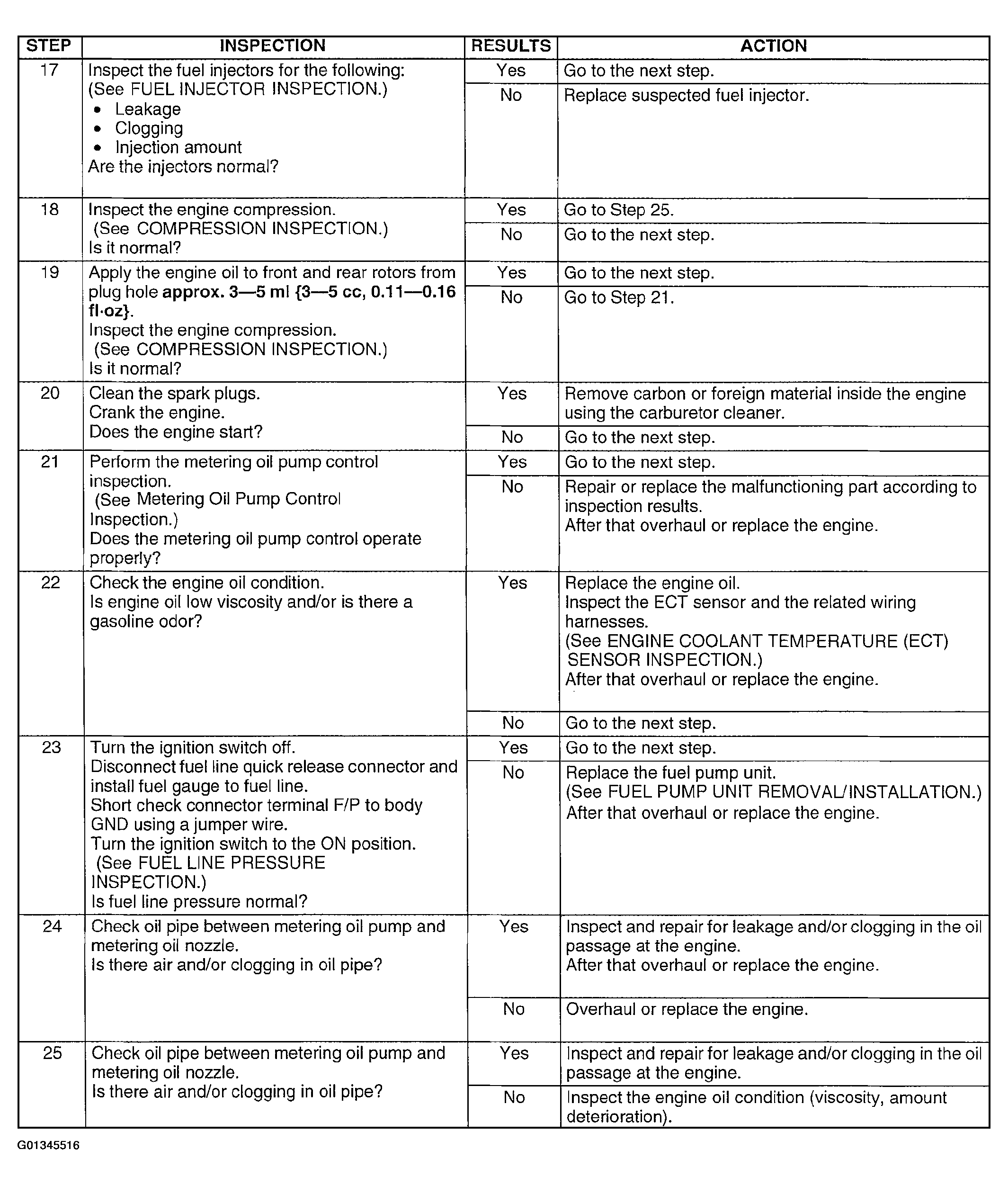

Fig 4: Diagnostic Procedure - No. 3 Will Not Crank (Steps 17-25)

Courtesy of MAZDA MOTORS CORP.

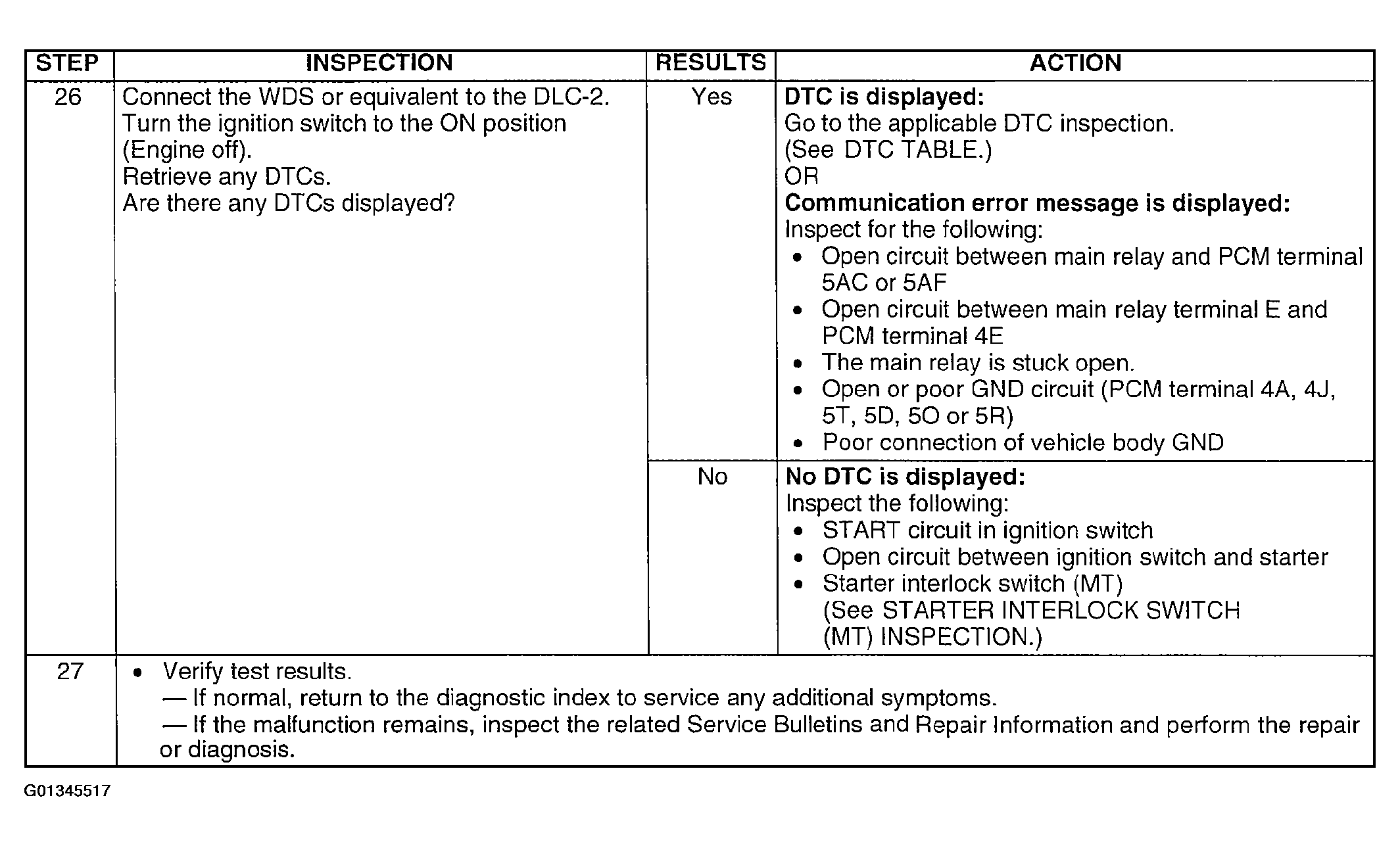

Fig 5: Diagnostic Procedure - No. 3 Will Not Crank (Steps 26-27)

Courtesy of MAZDA MOTORS CORP.
