No. 5 Engine Stalls-After Start/At Idle

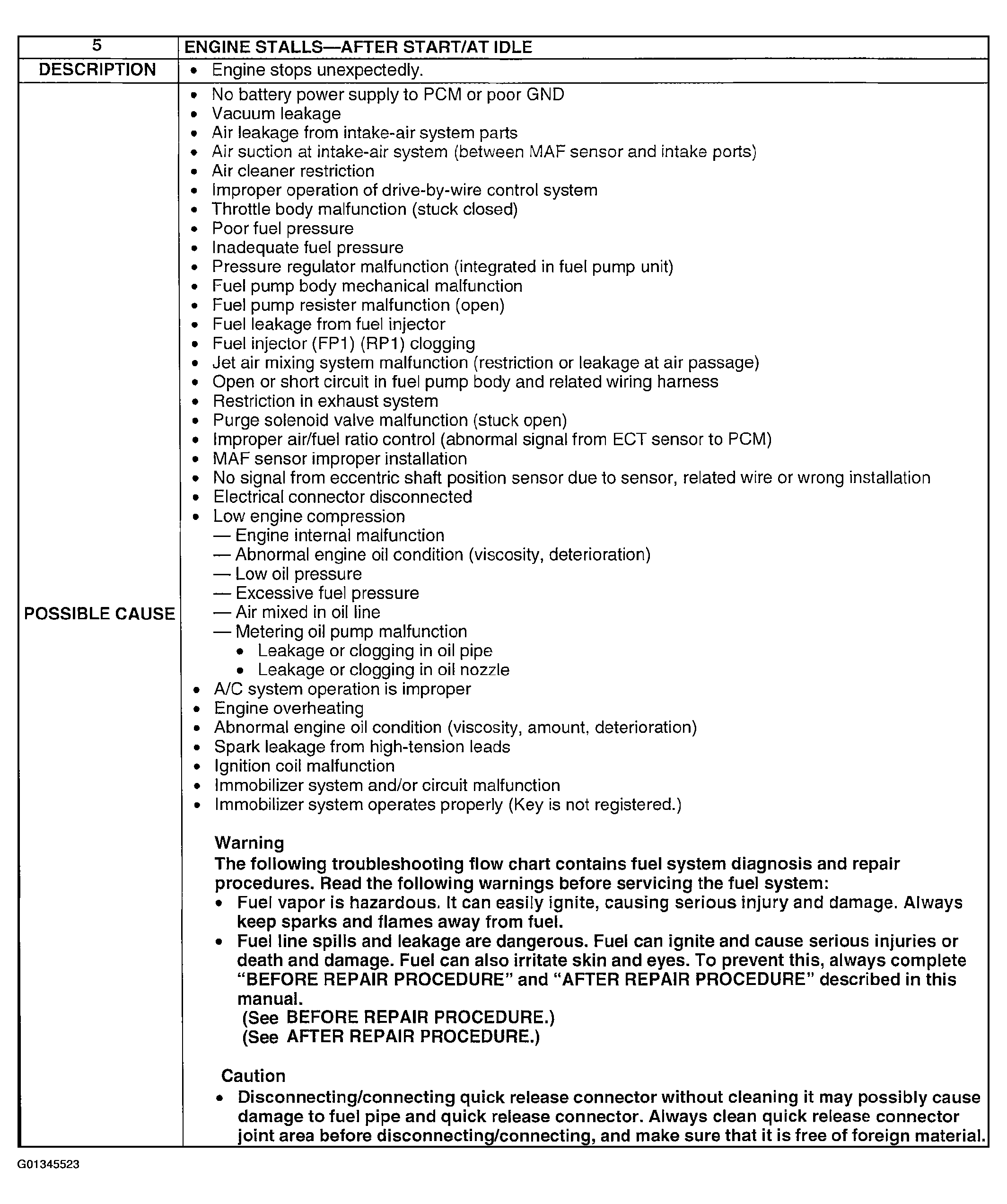

Fig 1: Possible Cause - No. 5 Engine Stalls-After Start/At Idle

Courtesy of MAZDA MOTORS CORP.

Diagnostic Procedure

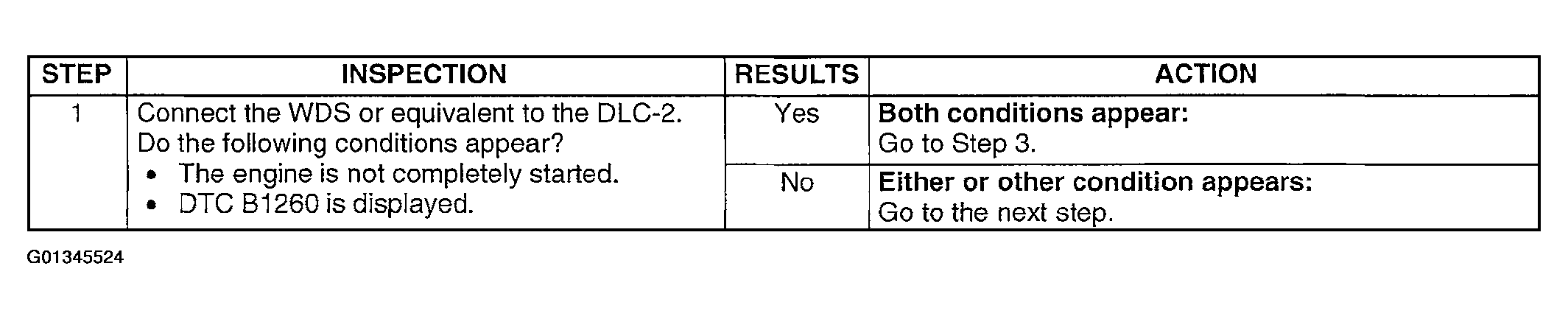

Fig 2: Diagnostic Procedure - No. 5 Engine Stalls-After Start/At Idle (Step 1)

Courtesy of MAZDA MOTORS CORP.

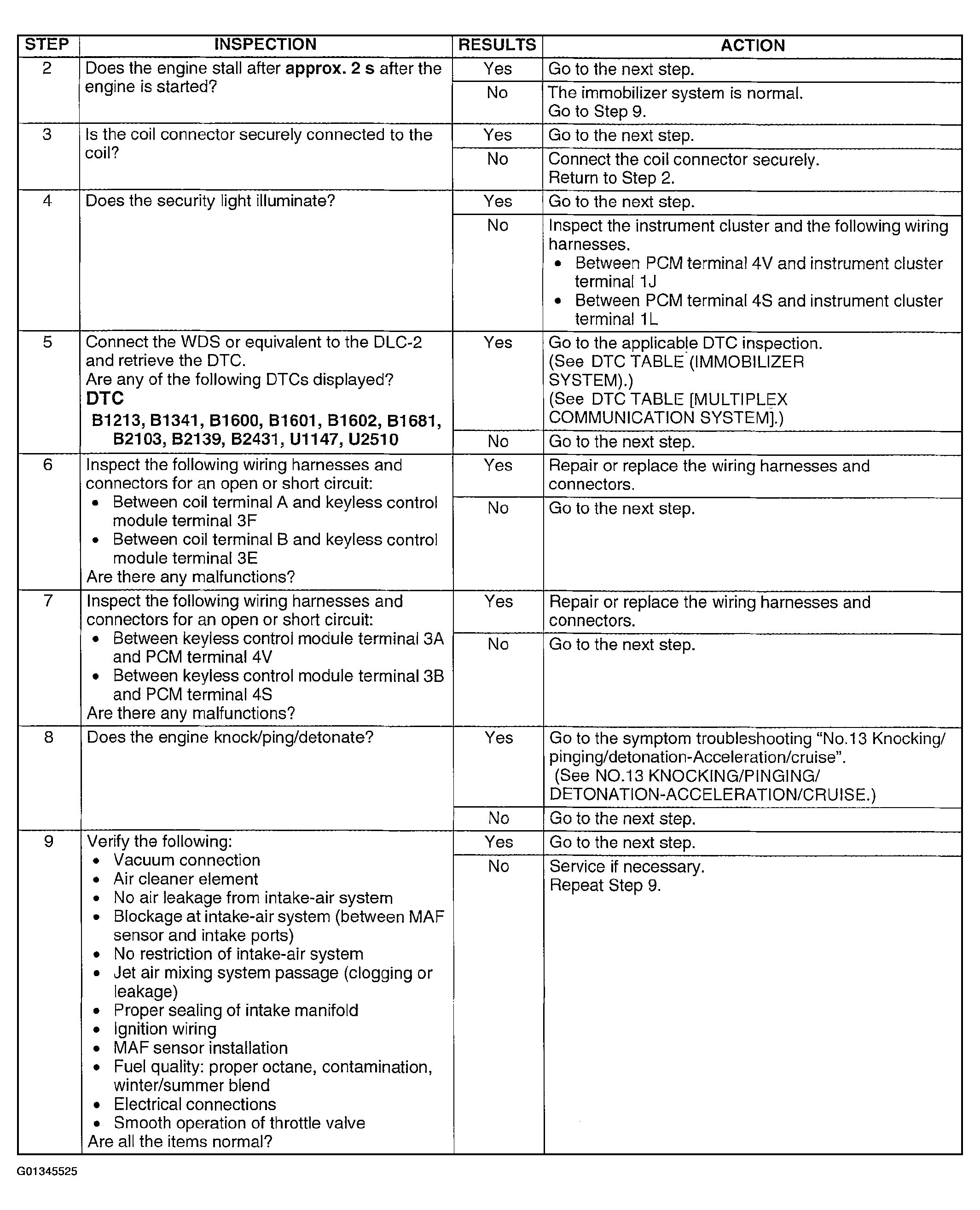

Fig 3: Diagnostic Procedure - No. 5 Engine Stalls-After Start/At Idle (Steps 2-9)

Courtesy of MAZDA MOTORS CORP.

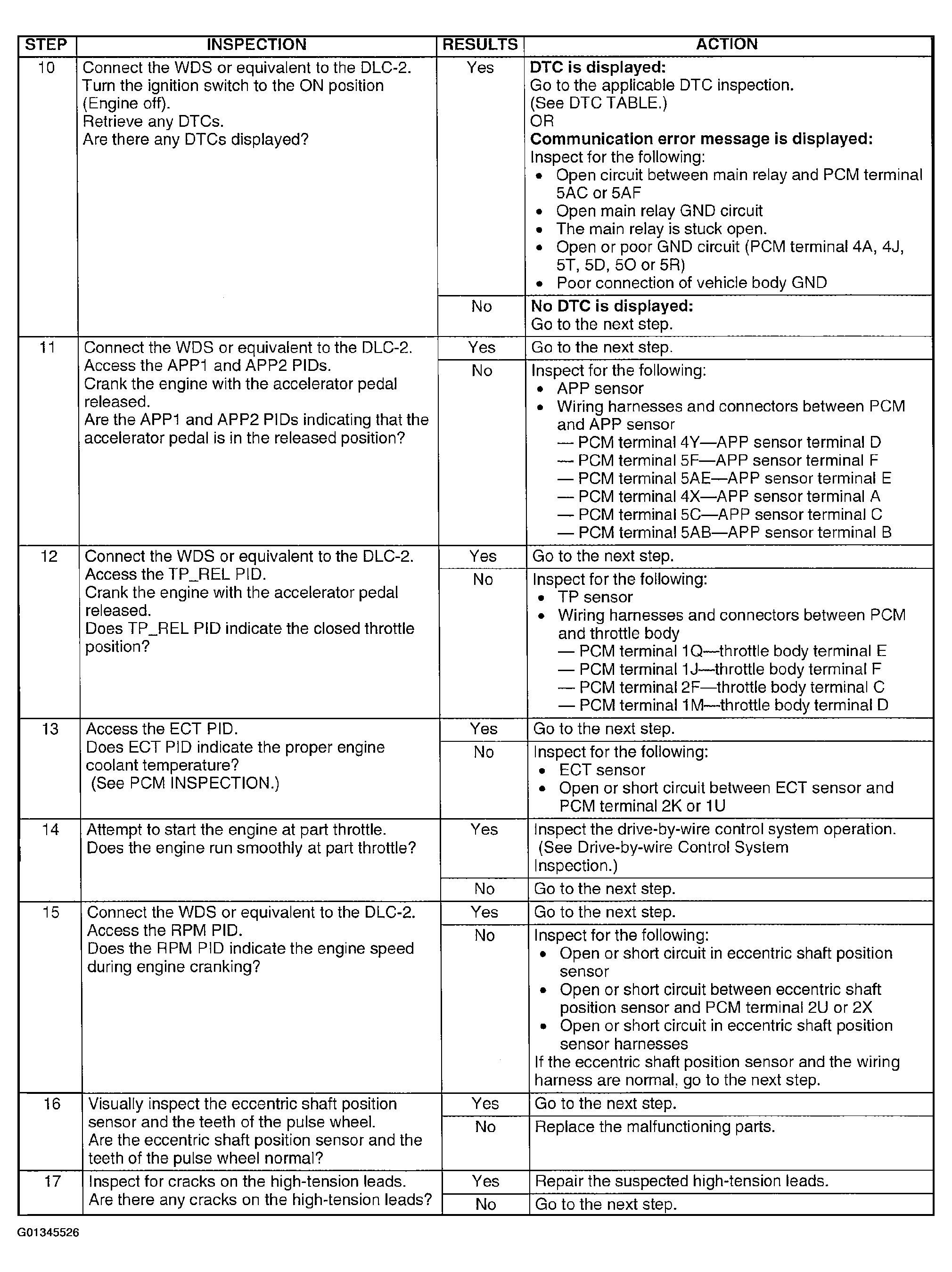

Fig 4: Diagnostic Procedure - No. 5 Engine Stalls-After Start/At Idle (Steps 10-17)

Courtesy of MAZDA MOTORS CORP.

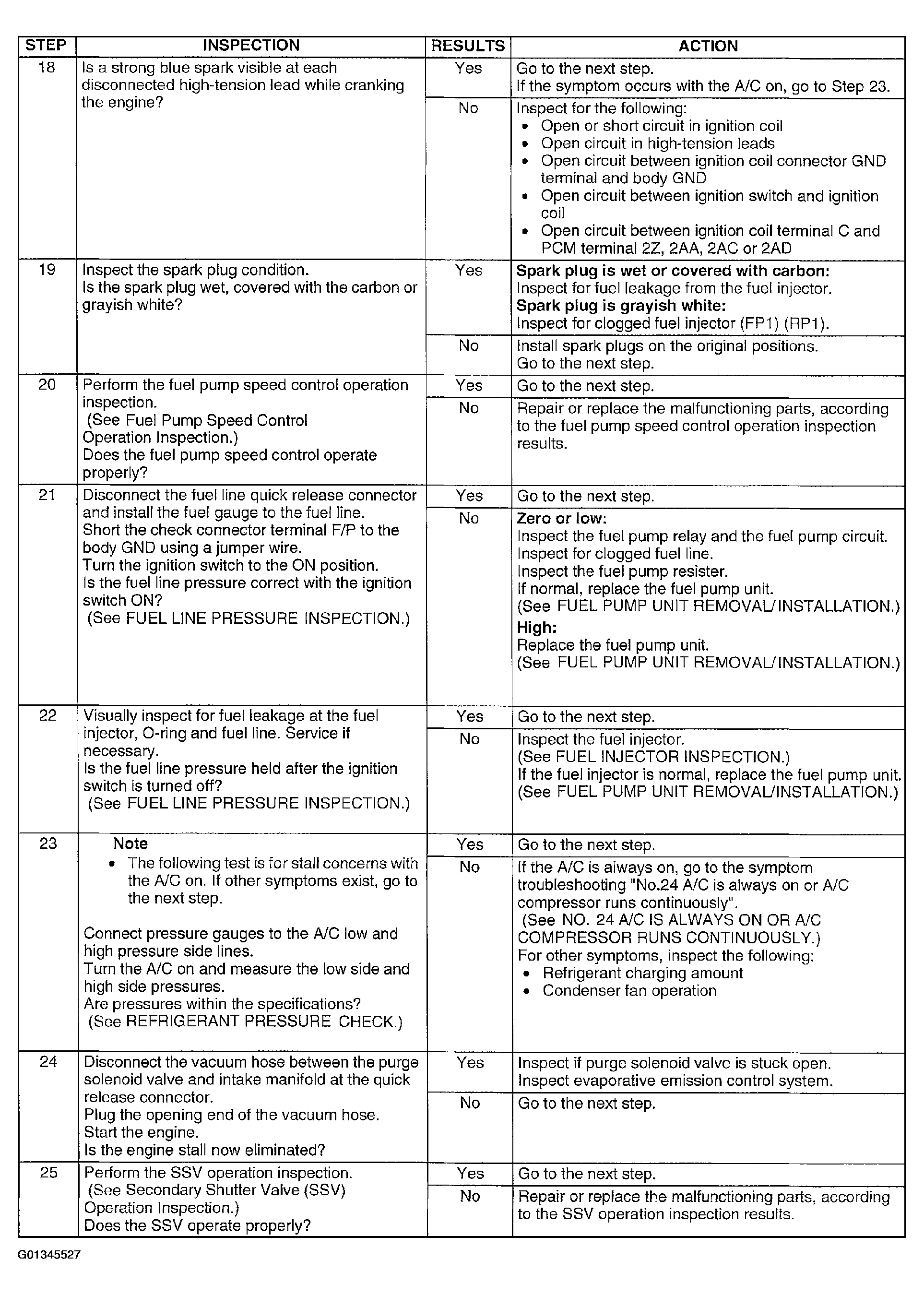

Fig 5: Diagnostic Procedure - No. 5 Engine Stalls-After Start/At Idle (Steps 18-25)

Courtesy of MAZDA MOTORS CORP.

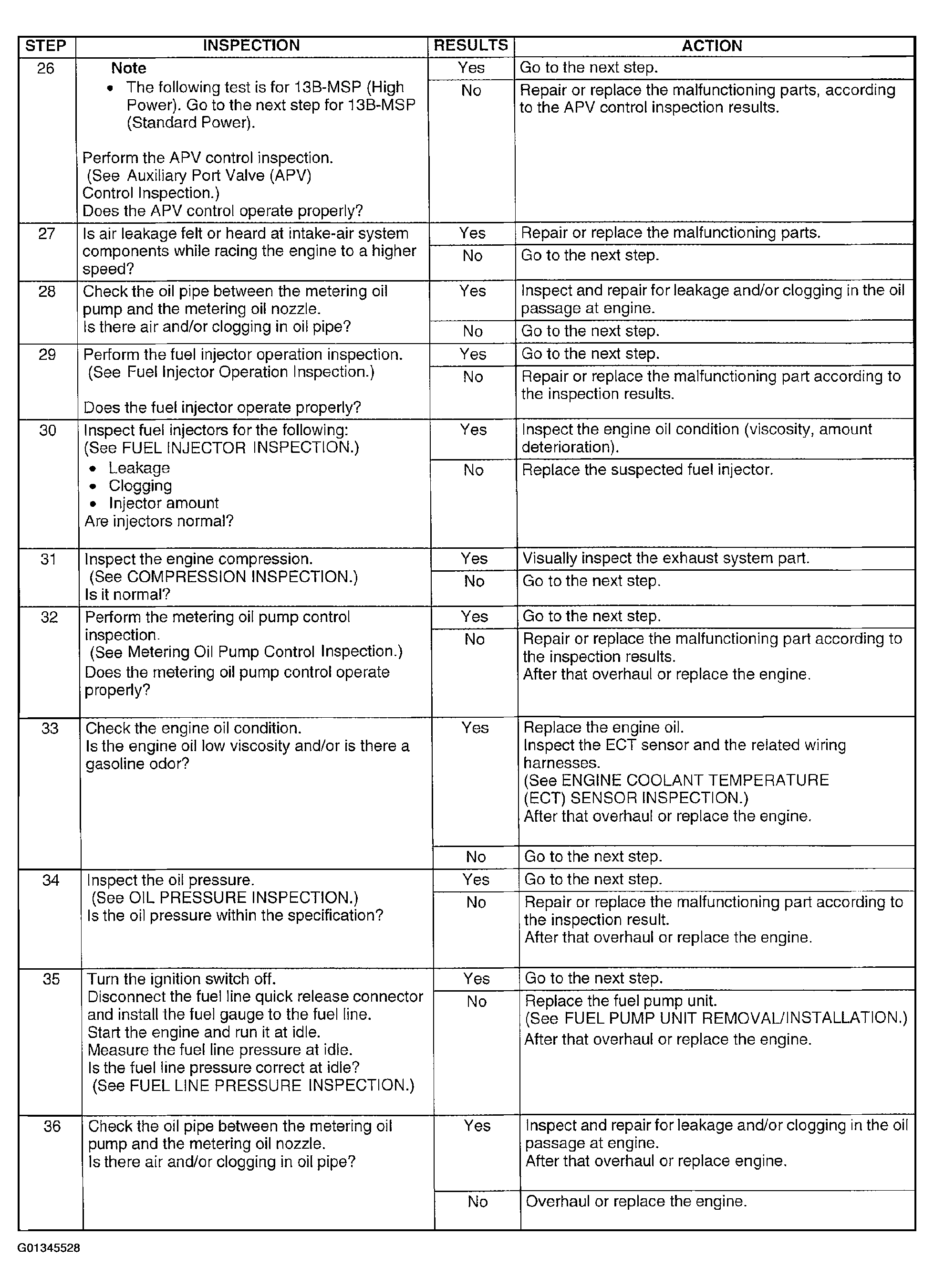

Fig 6: Diagnostic Procedure - No. 5 Engine Stalls-After Start/At Idle (Steps 26-36)

Courtesy of MAZDA MOTORS CORP.

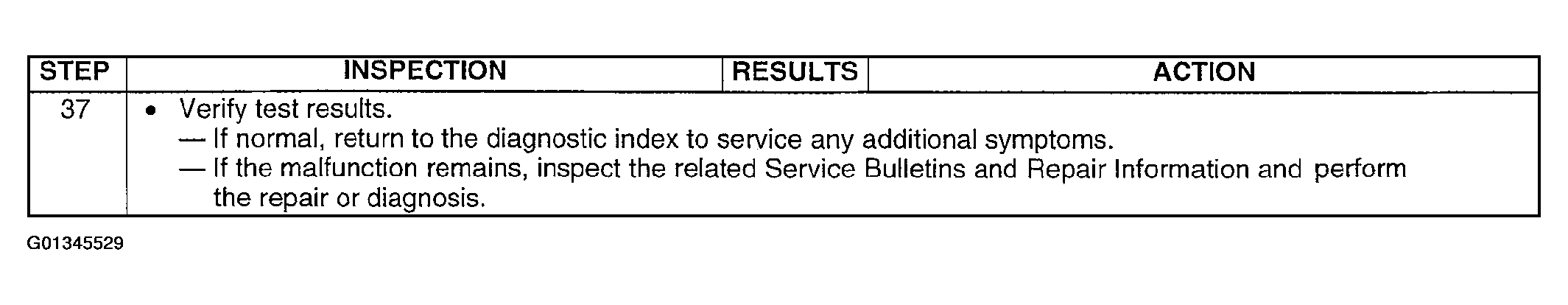

Fig 7: Diagnostic Procedure - No. 5 Engine Stalls-After Start/At Idle (Step 37)

Courtesy of MAZDA MOTORS CORP.
