Transmission/Transaxle SST
Transmission/Transaxle SST

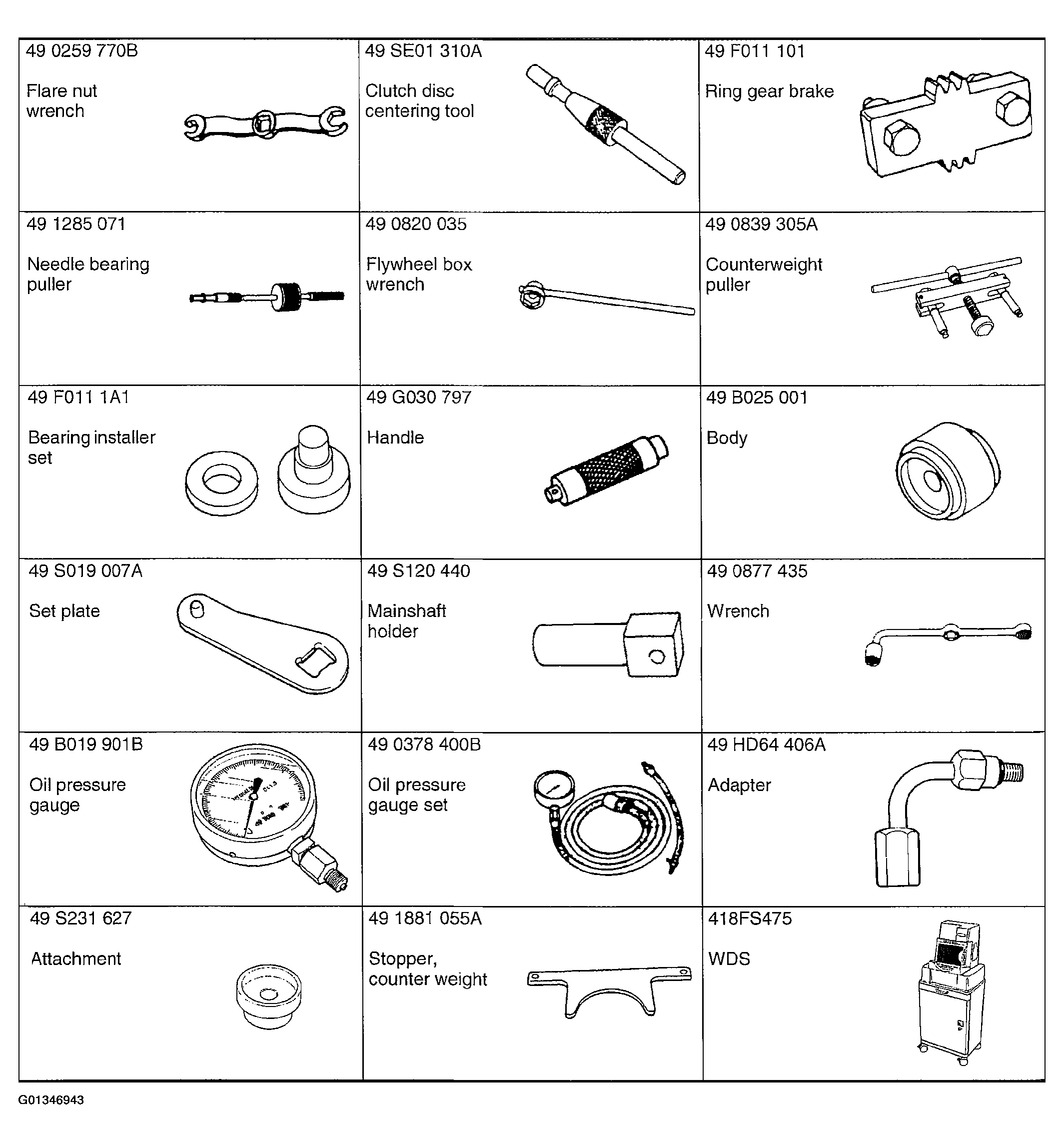

Fig 1: Transmission/Transaxle Special Service Tools
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
