Exhaust Sulfur Smell

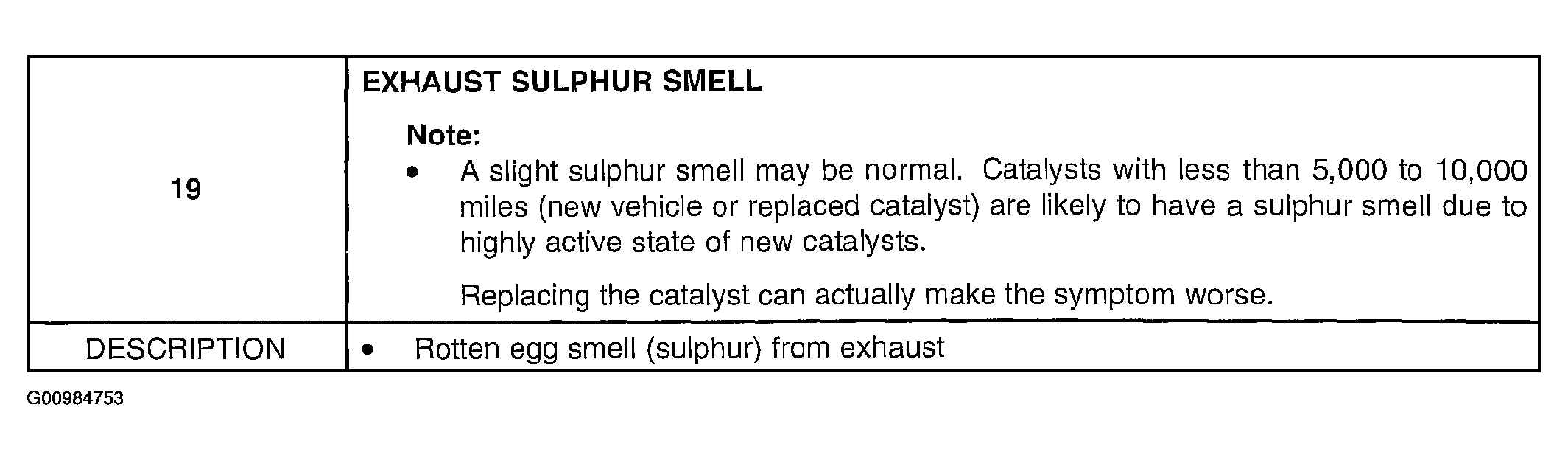

Fig 1: Chart 19 Exhaust Sulfur Smell: Description
Courtesy of MAZDA MOTORS CORP.

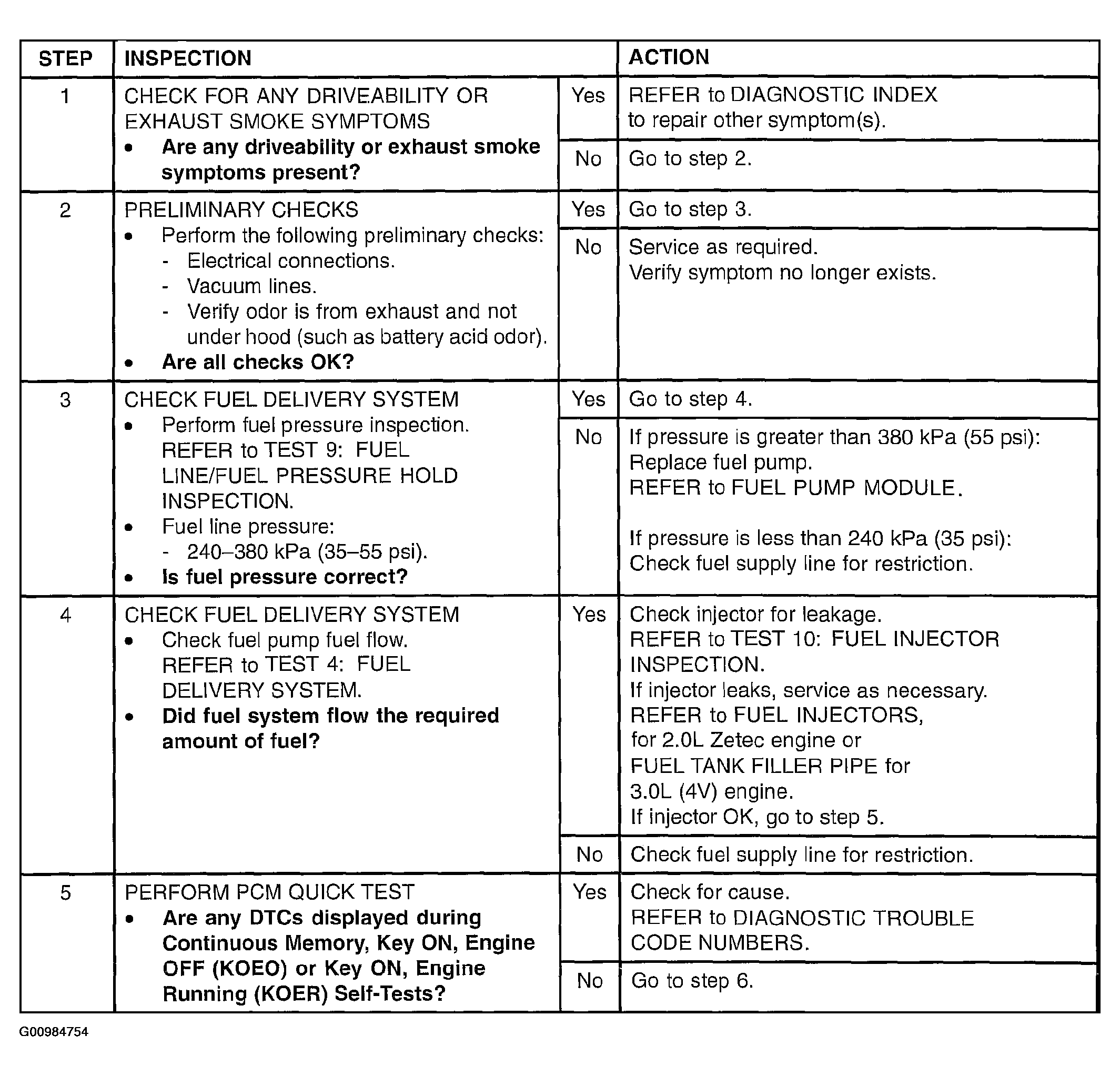

Fig 2: Chart 19 Exhaust Sulfur Smell: Inspection (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

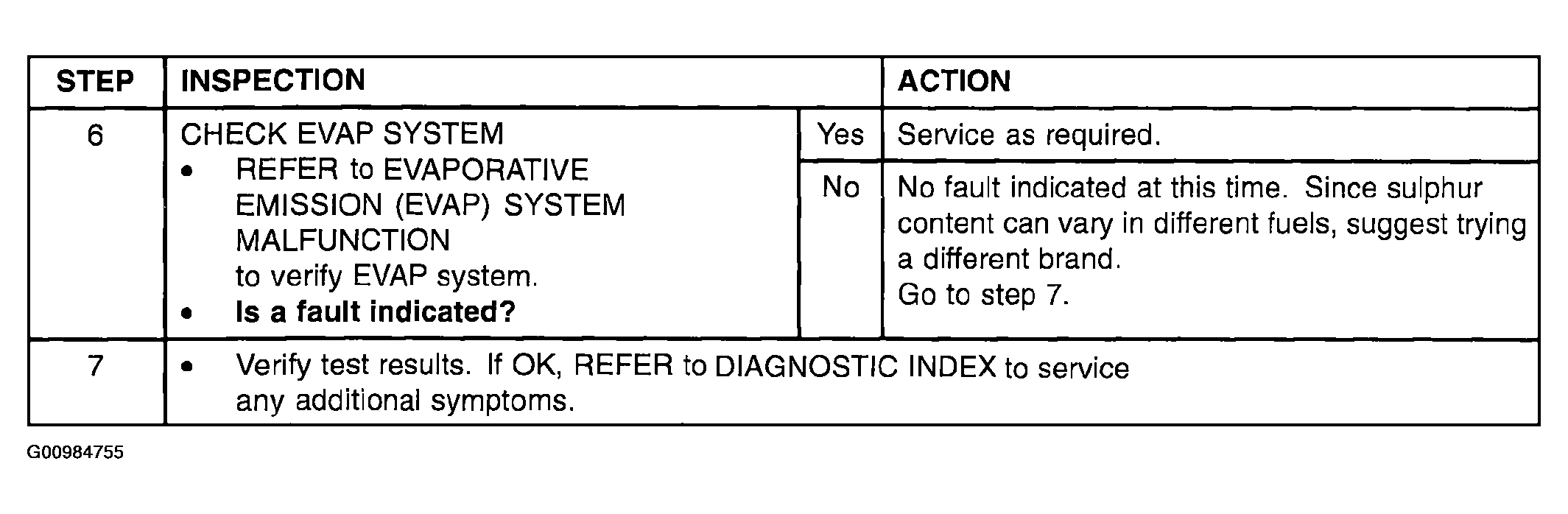

Fig 3: Chart 19 Exhaust Sulfur Smell: Inspection (Steps 6-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
