Manual Transaxle: Differential: Notes

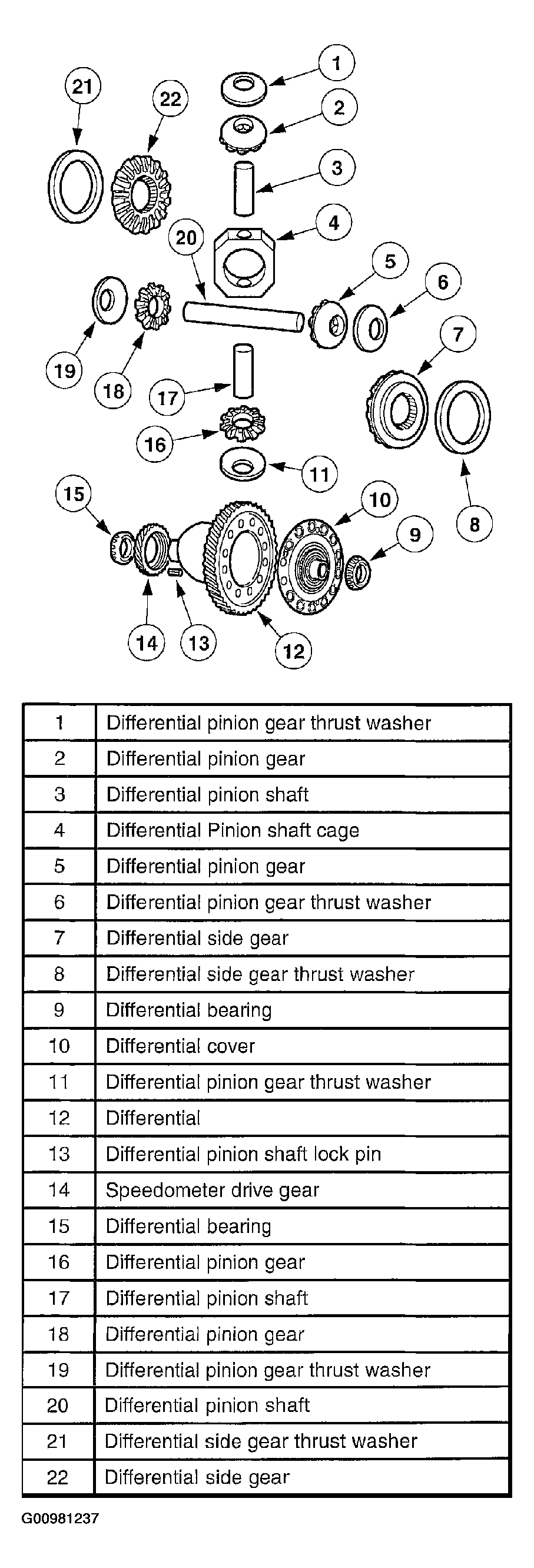

Fig 1: Disassembling Differential
G00981237Courtesy of MAZDA MOTORS CORP.
