PID/Data Monitor Item Table

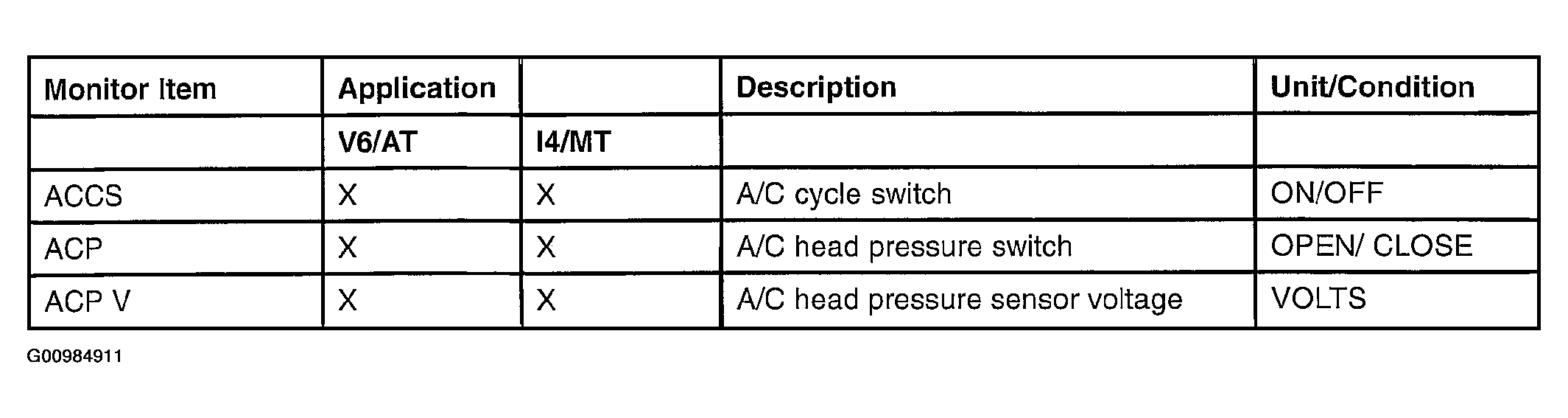

Fig 1: Identifying PID/Data Monitor Item (1 Of 6)

Courtesy of MAZDA MOTORS CORP.

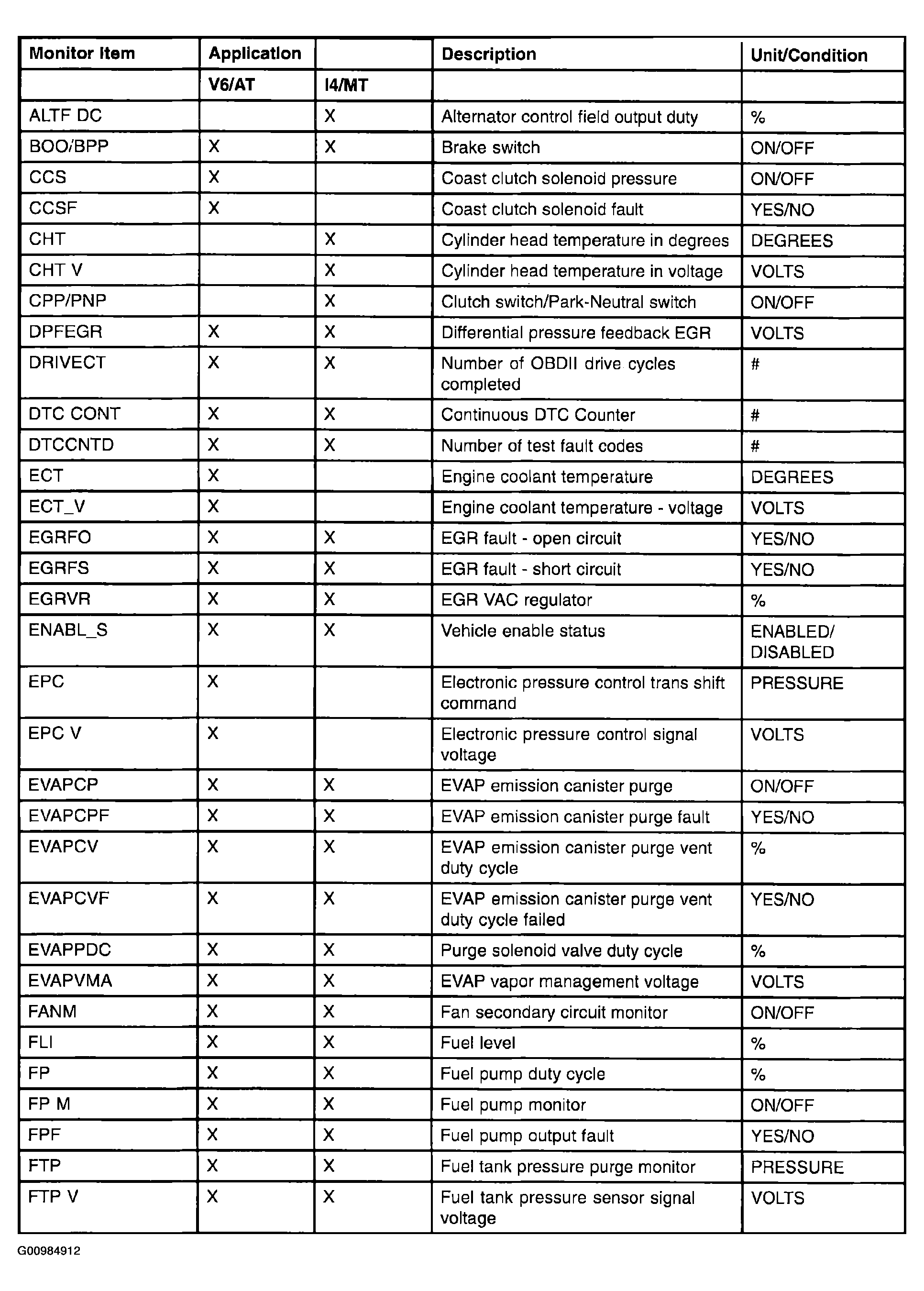

Fig 2: Identifying PID/Data Monitor Item (2 Of 6)

Courtesy of MAZDA MOTORS CORP.

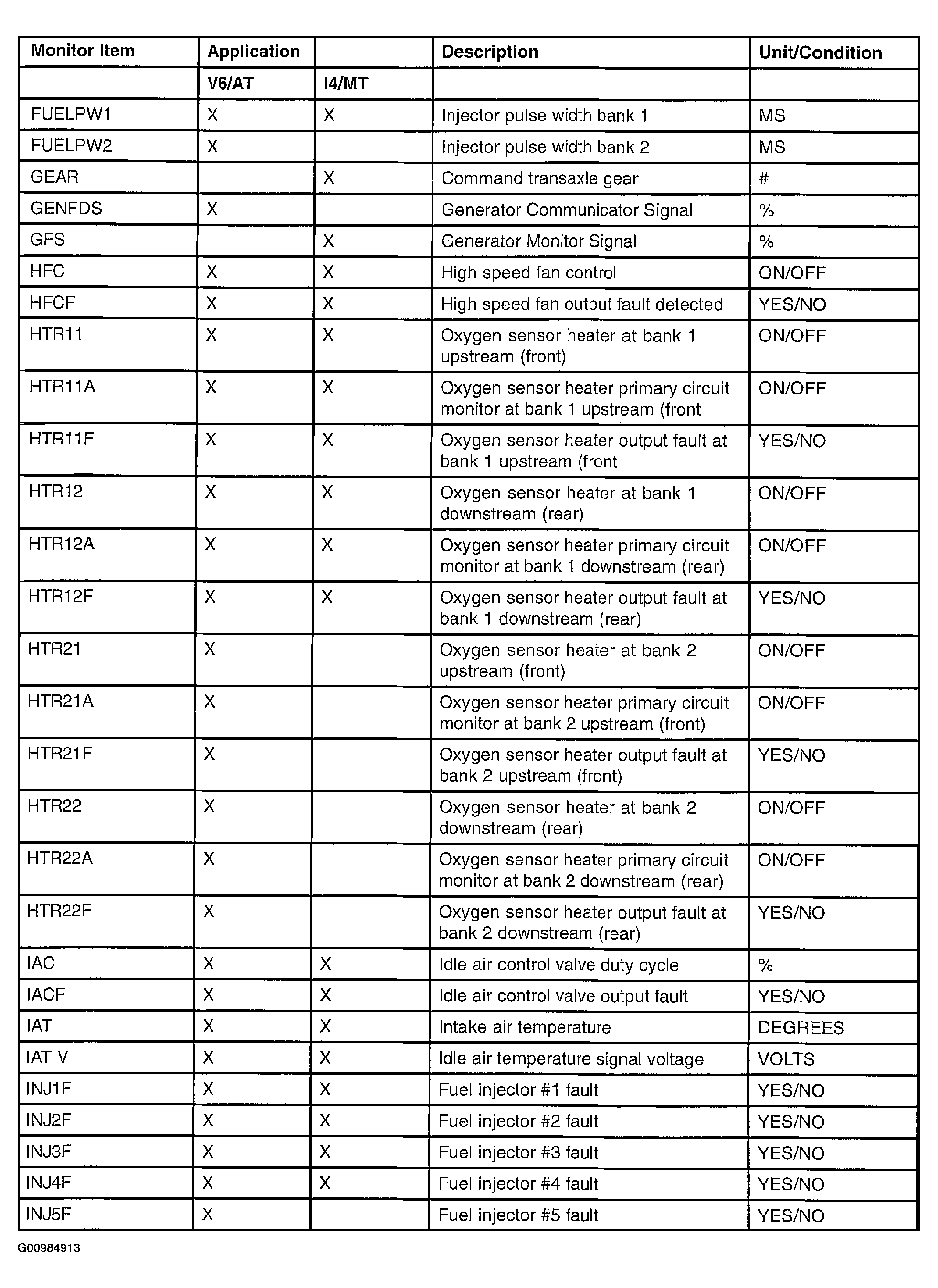

Fig 3: Identifying PID/Data Monitor Item (3 Of 6)

Courtesy of MAZDA MOTORS CORP.

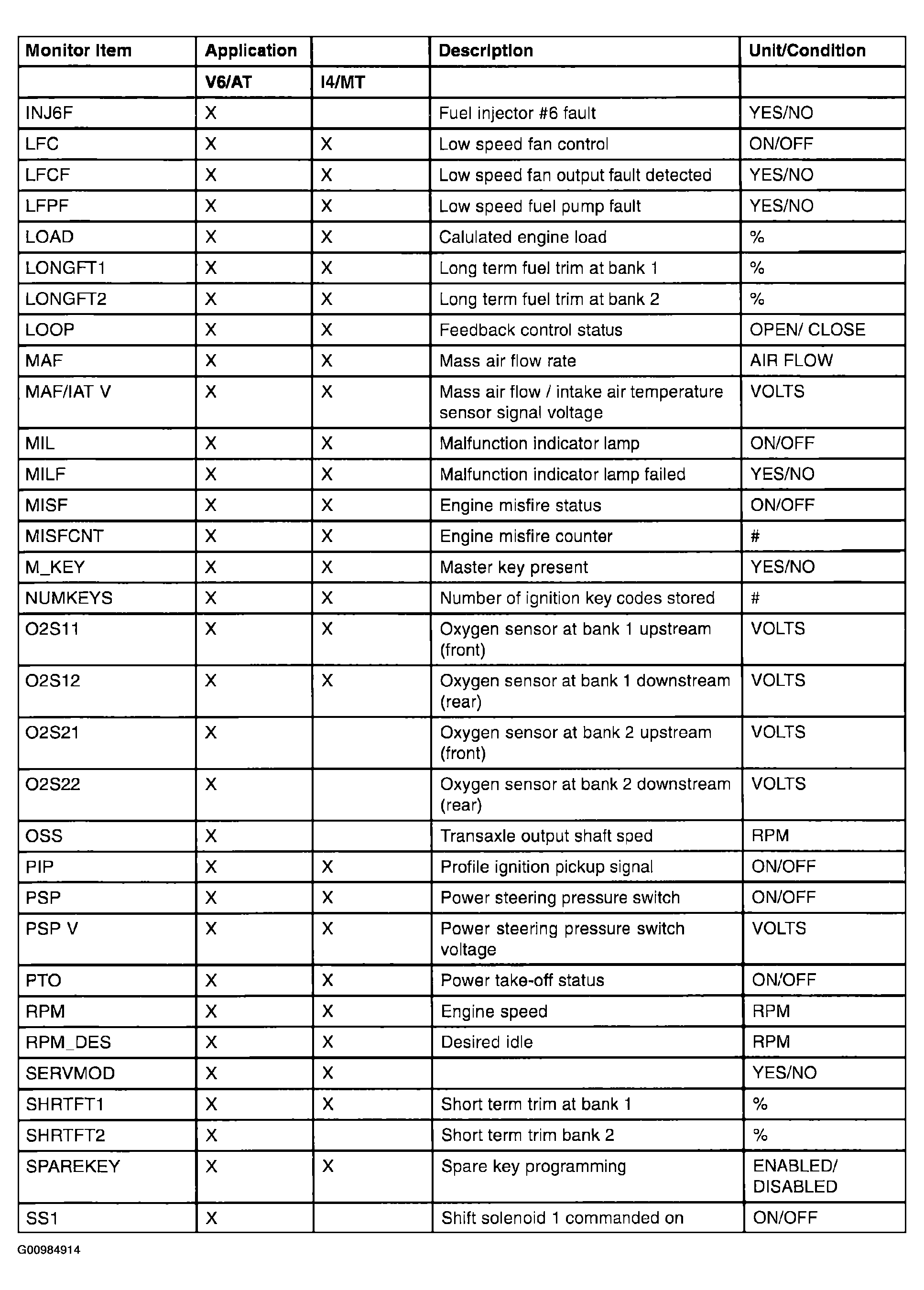

Fig 4: Identifying PID/Data Monitor Item (4 Of 6)

Courtesy of MAZDA MOTORS CORP.

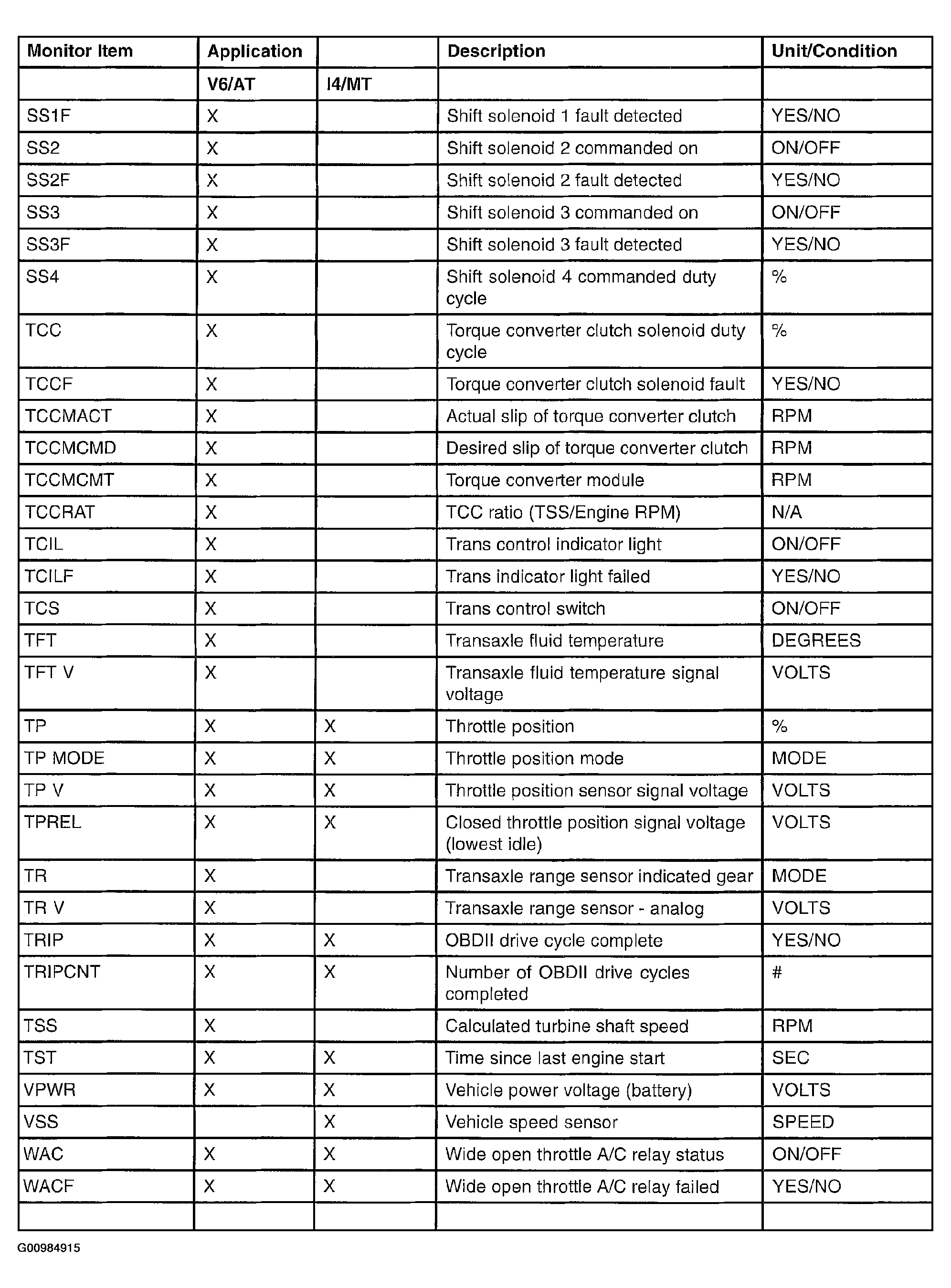

Fig 5: Identifying PID/Data Monitor Item (5 Of 6)

Courtesy of MAZDA MOTORS CORP.

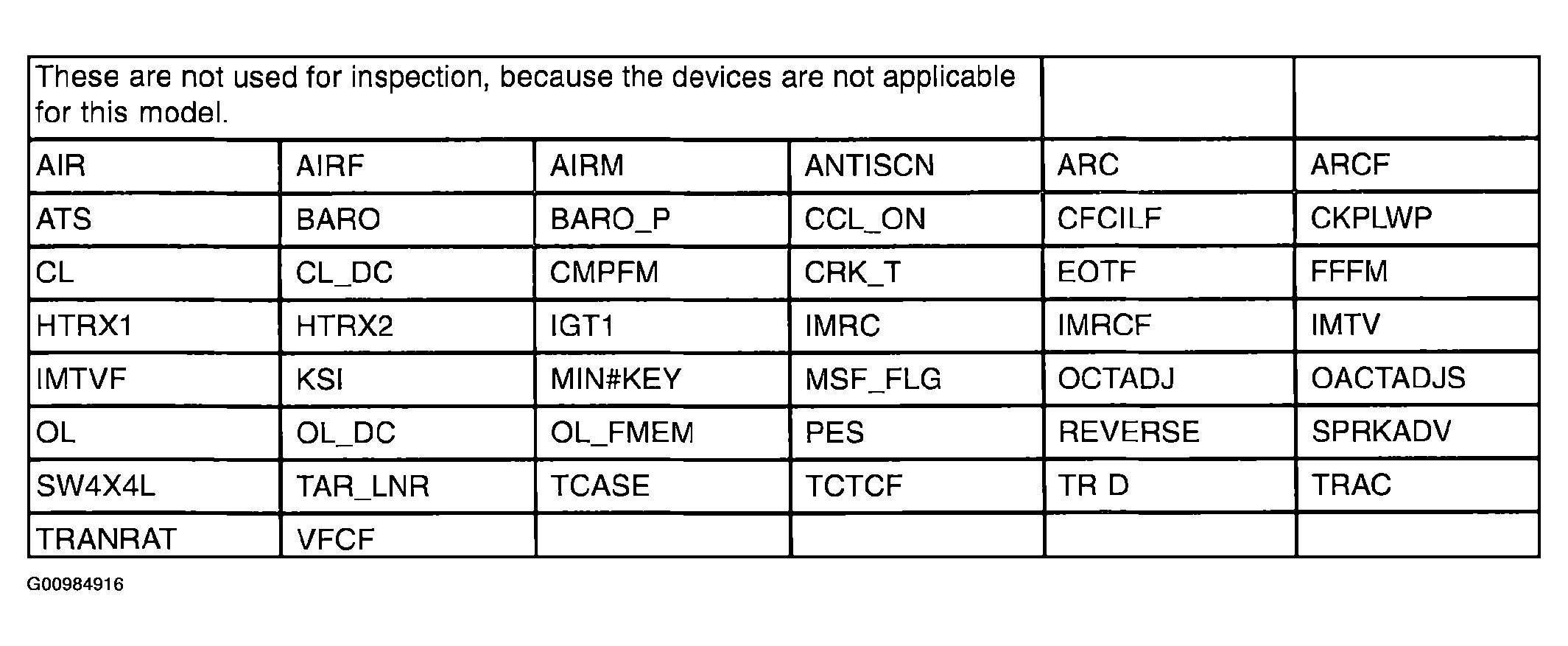

Fig 6: Identifying PID/Data Monitor Item (6 Of 6)

Courtesy of MAZDA MOTORS CORP.
