Removal & Installation

NOTE:

Air cleaner outlet tube is removed for clarity.

Remove the throttle position (TP) sensor.
1. Disconnect the electrical connector.
2. Remove the screws.
3. Remove the sensor.

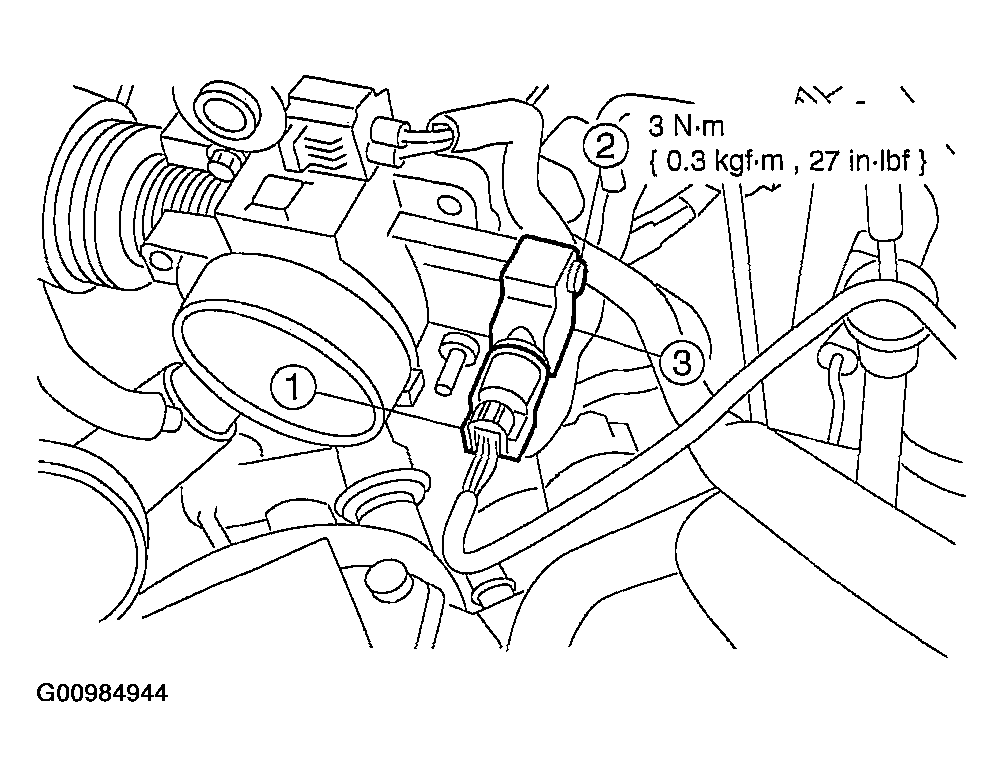

Fig 1: Identifying TP Sensor Electrical Connector, Screws & Sensor (3.0L)
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
