Cranks Normal But Will Not Start

Fig 1: Chart 3 Cranks Normal But Will Not Start: Description

Courtesy of MAZDA MOTORS CORP.

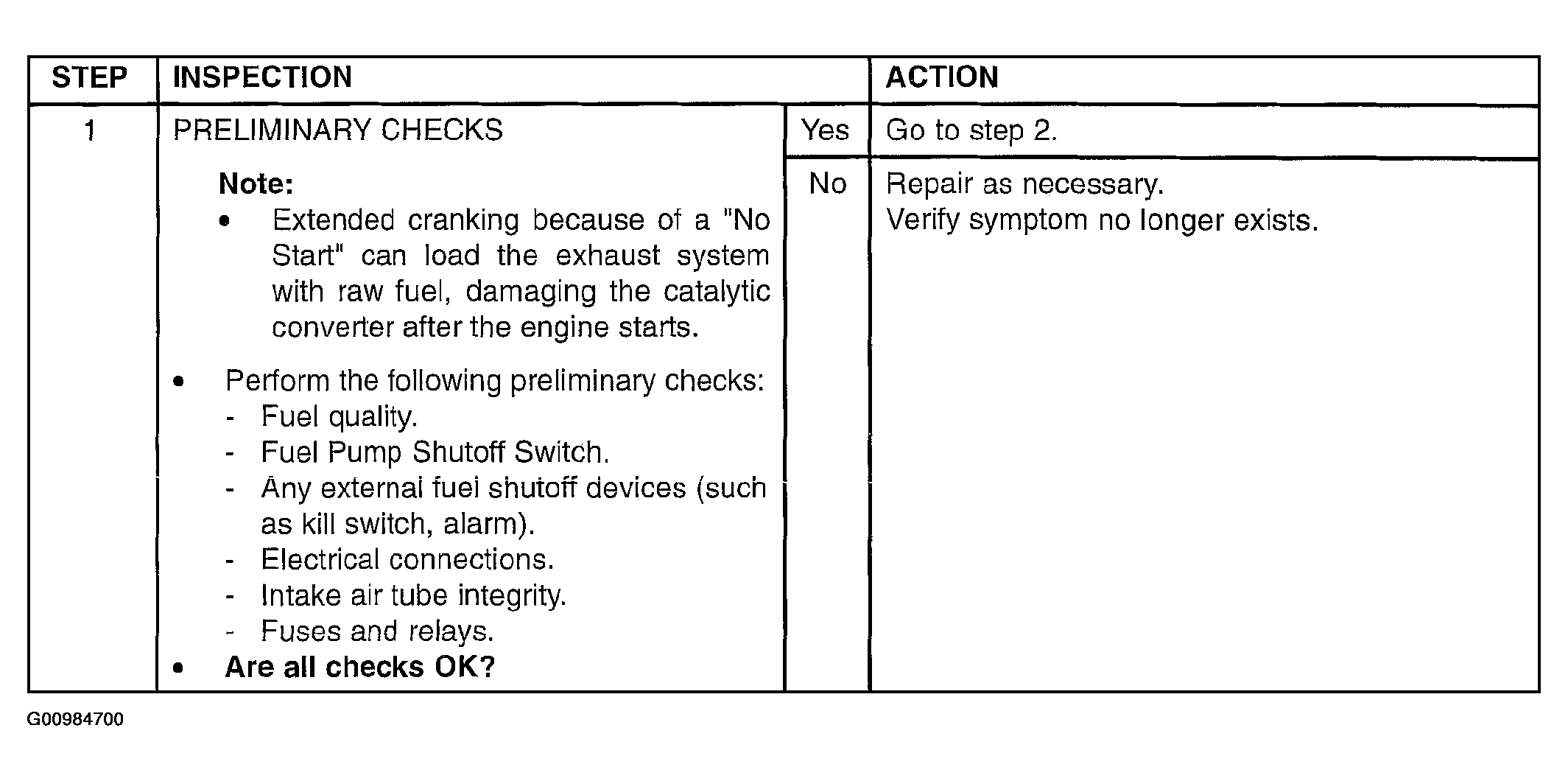

Fig 2: Chart 3 Cranks Normal But Will Not Start: Inspection (Step 1)

Courtesy of MAZDA MOTORS CORP.

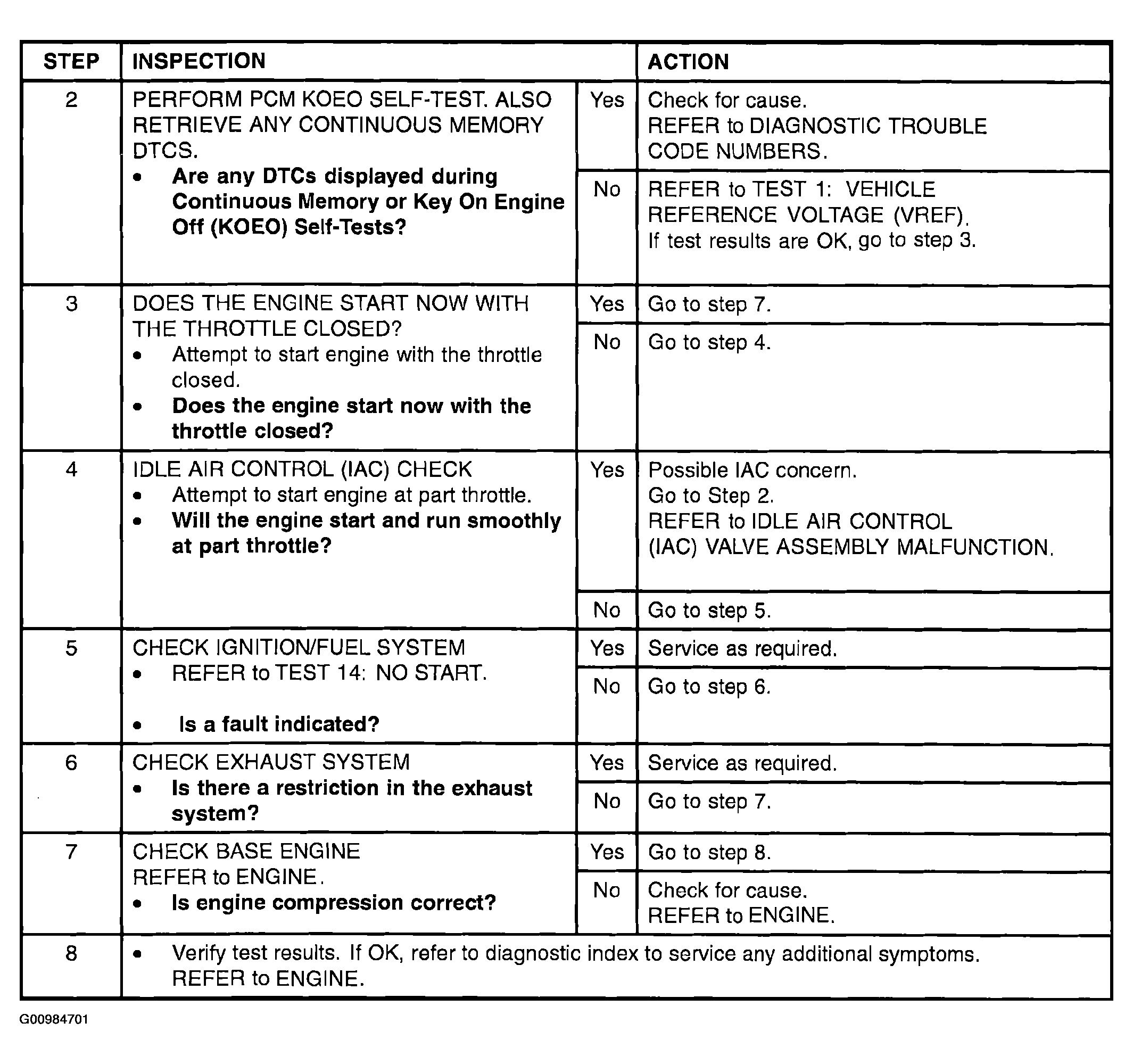

Fig 3: Chart 3 Cranks Normal But Will Not Start: Inspection (Steps 2-8)

Courtesy of MAZDA MOTORS CORP.
