Low Idle/Stalls During Deceleration

Fig 1: Chart 6 Low Idle/Stalls During Deceleration: Description

Courtesy of MAZDA MOTORS CORP.

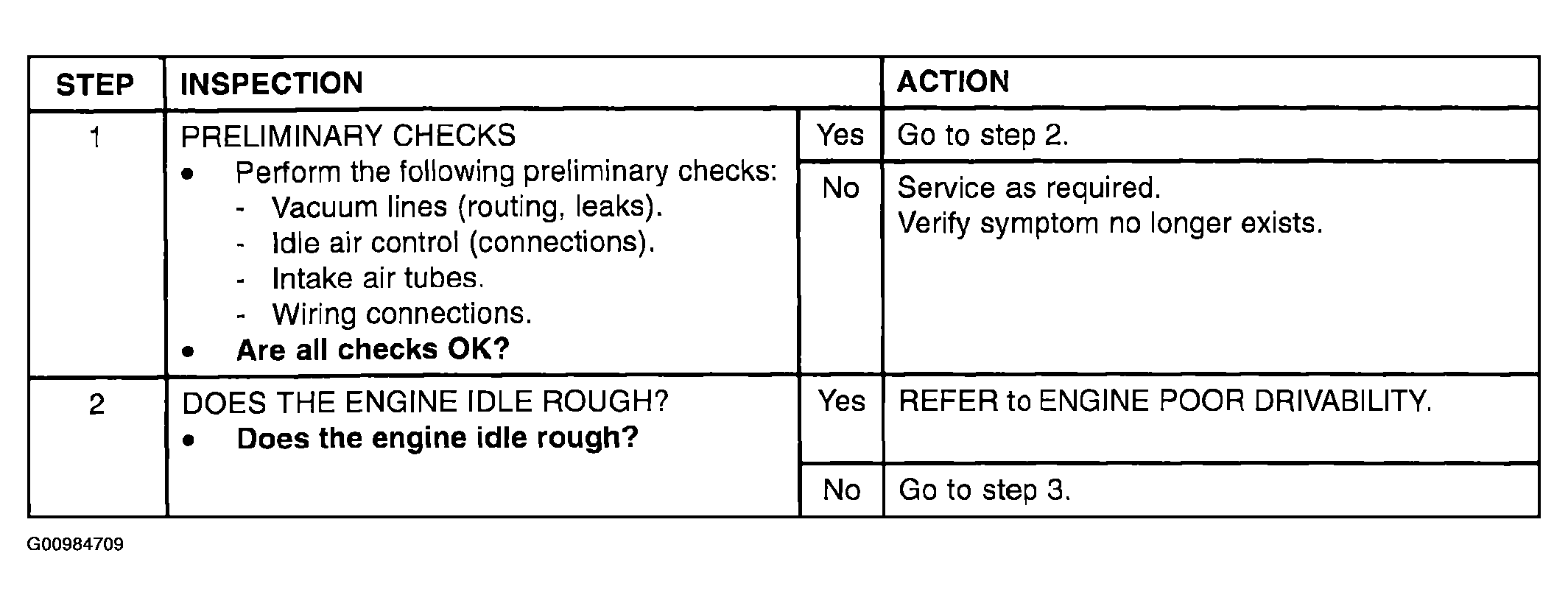

Fig 2: Chart 6 Low Idle/Stalls During Deceleration: Inspection (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

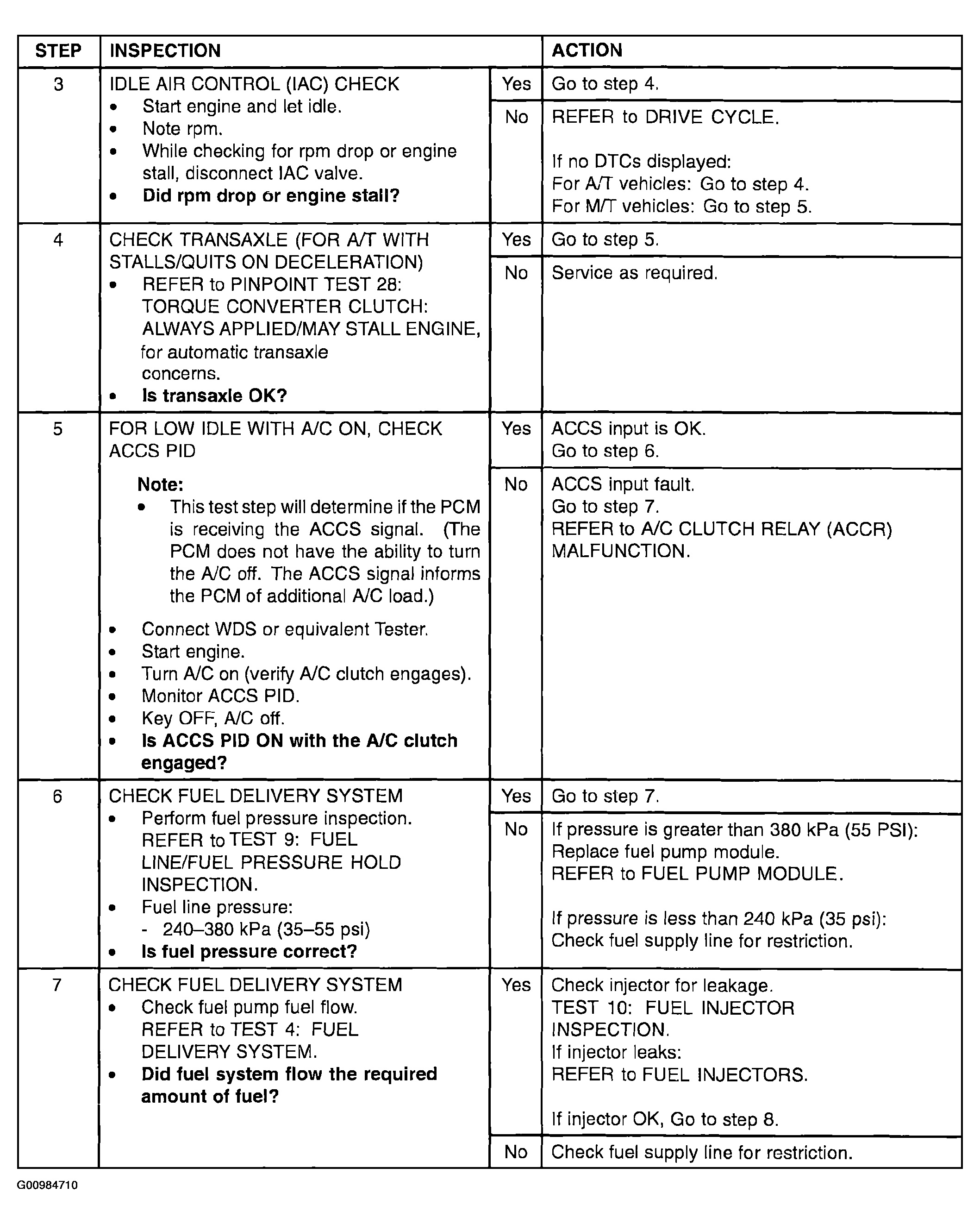

Fig 3: Chart 6 Low Idle/Stalls During Deceleration: Inspection (Step 3-7)

Courtesy of MAZDA MOTORS CORP.

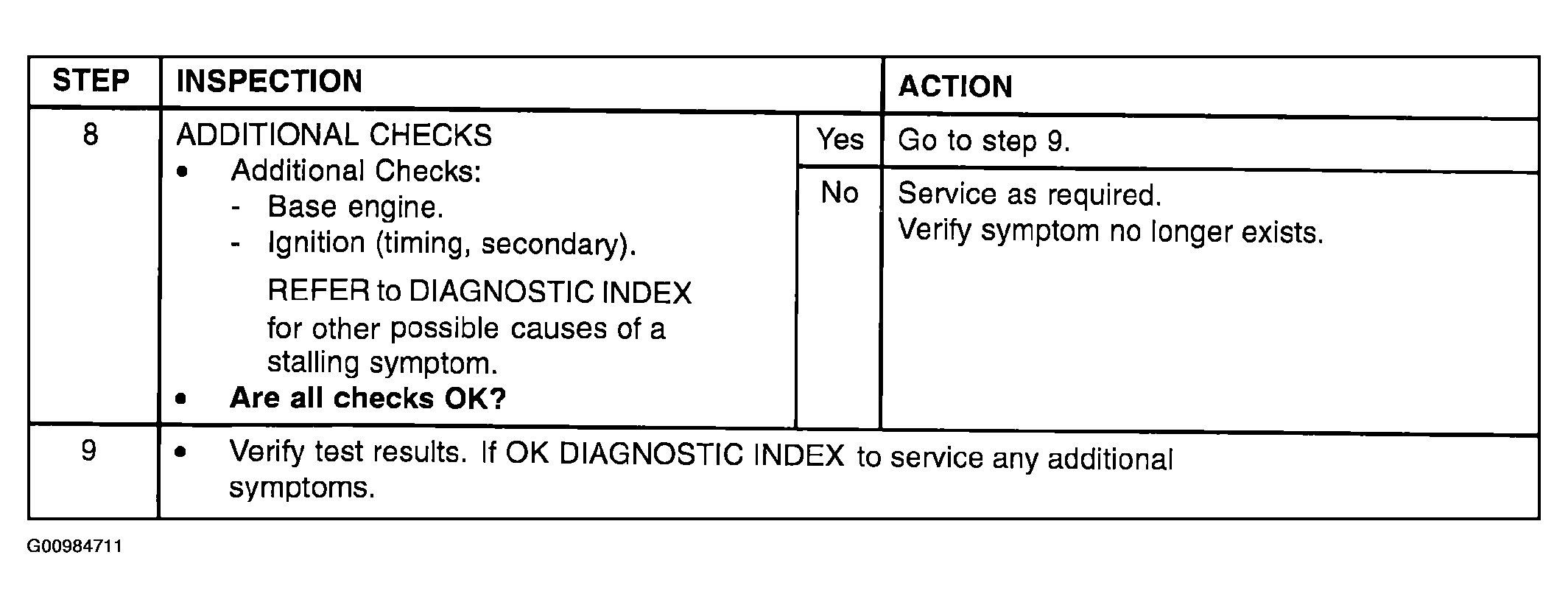

Fig 4: Chart 6 Low Idle/Stalls During Deceleration: Inspection (Step 8-9)

Courtesy of MAZDA MOTORS CORP.
