Symptom Troubleshooting Chart - Accelerator

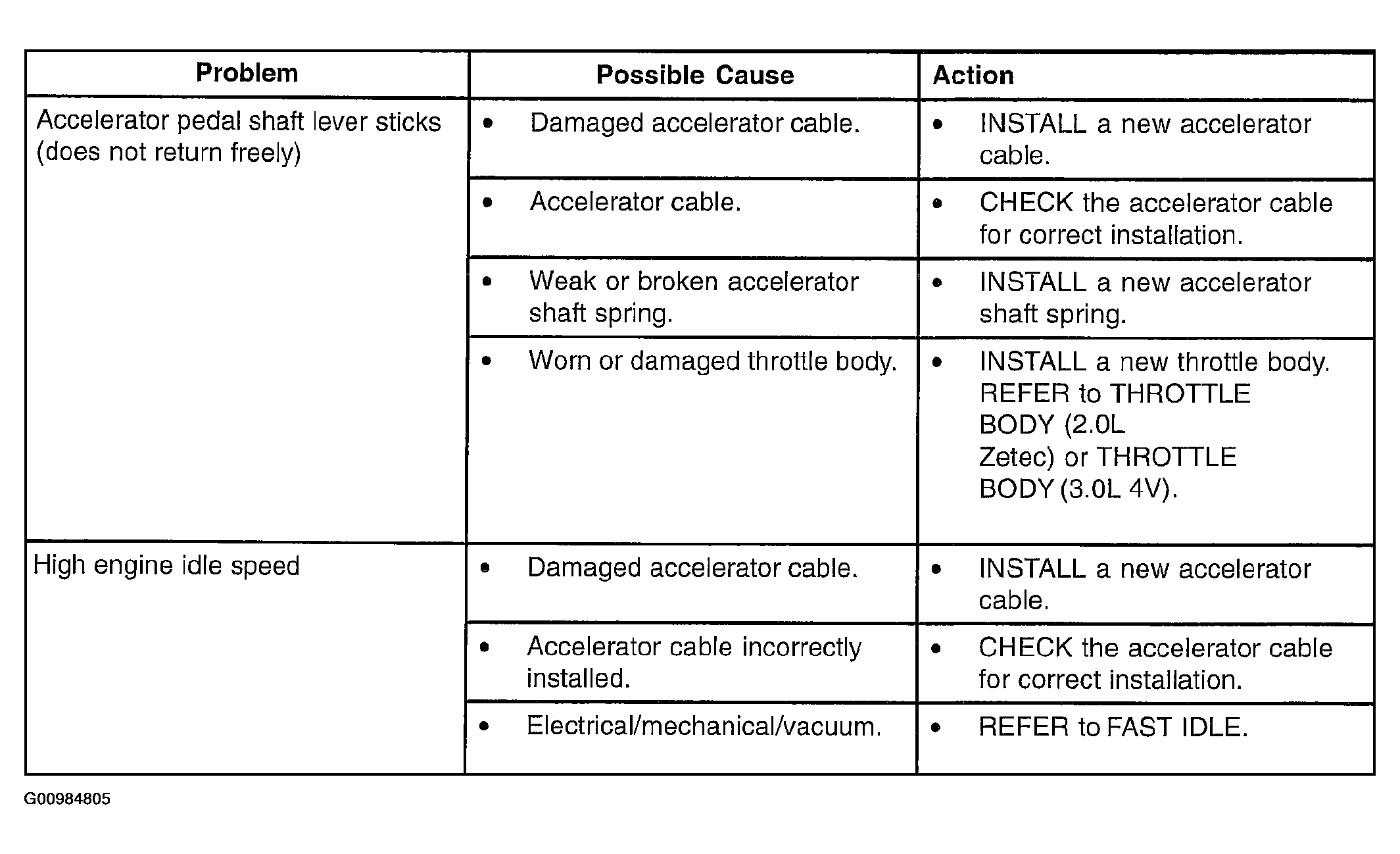

Fig 1: Symptom Troubleshooting Chart - Accelerator (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

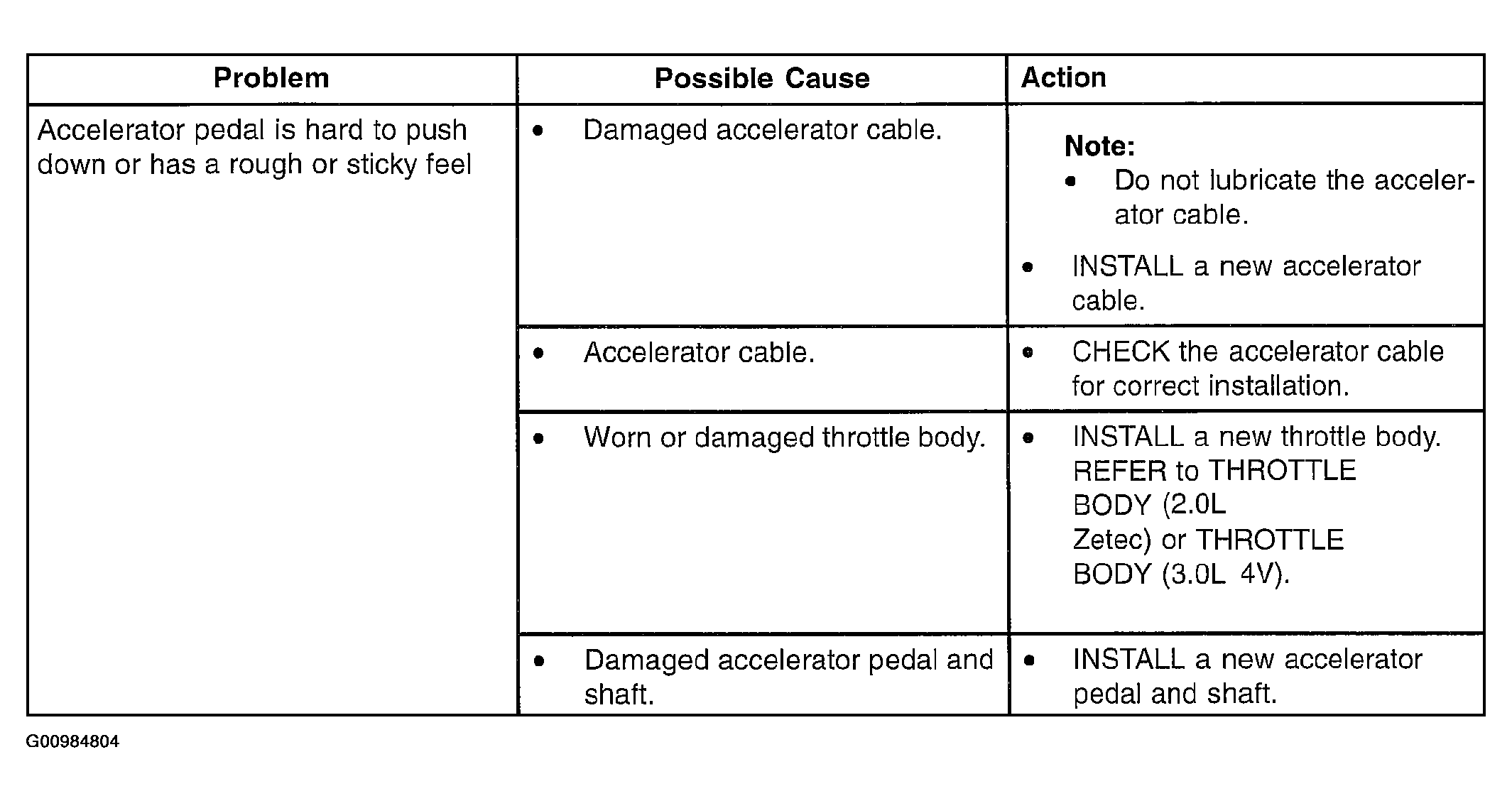

Fig 2: Symptom Troubleshooting Chart - Accelerator (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
