Pinpoint Test 2: The Engine Overheats

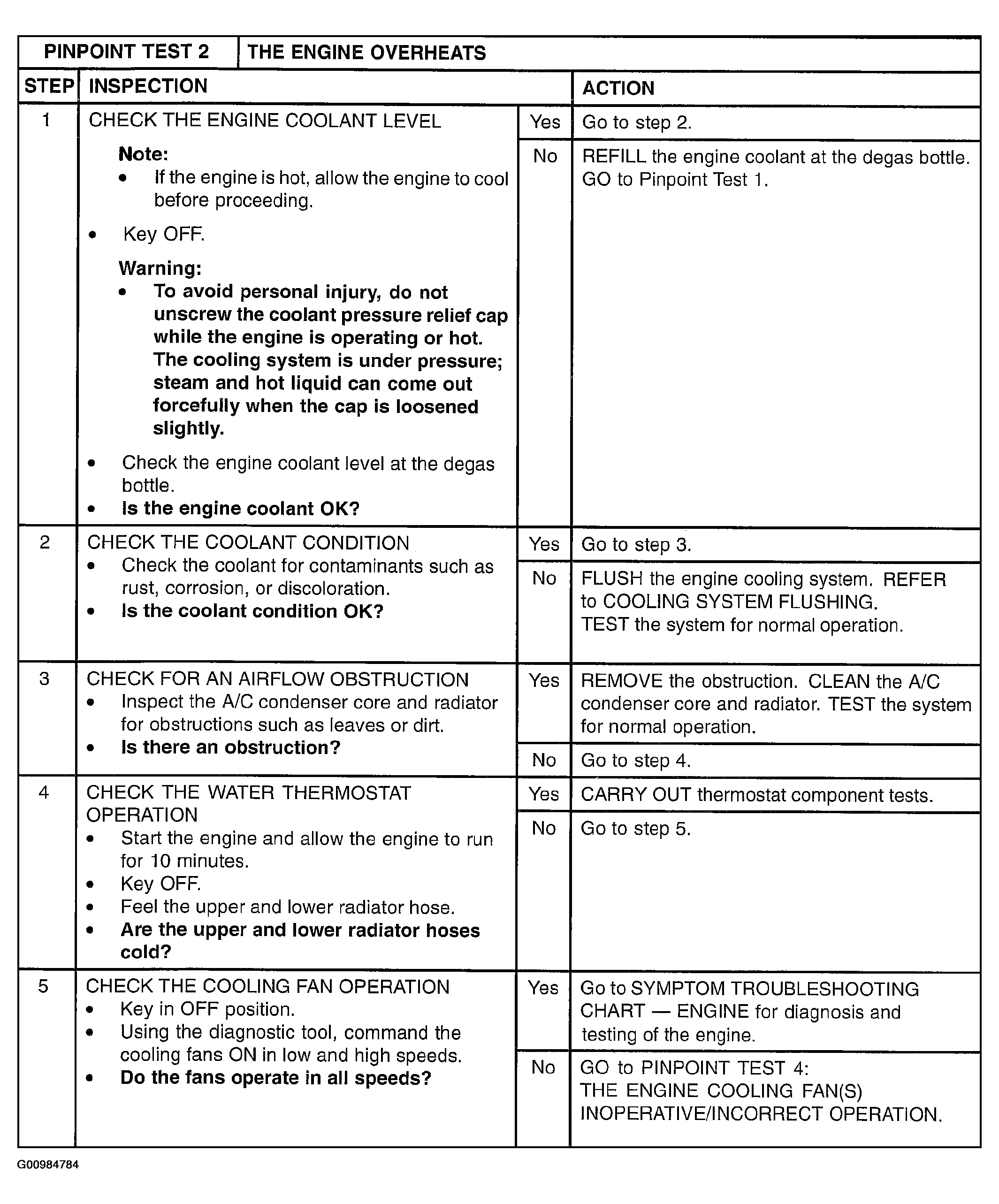

Fig 1: Pinpoint Test 2: The Engine Overheats
G00984784Courtesy of MAZDA MOTORS CORP.
