Symptom Troubleshooting (Engine/Fuel Control)
›
Symptom Troubleshooting Chart - Starting System
›
Notes
Symptom Troubleshooting Chart - Starting System: Notes

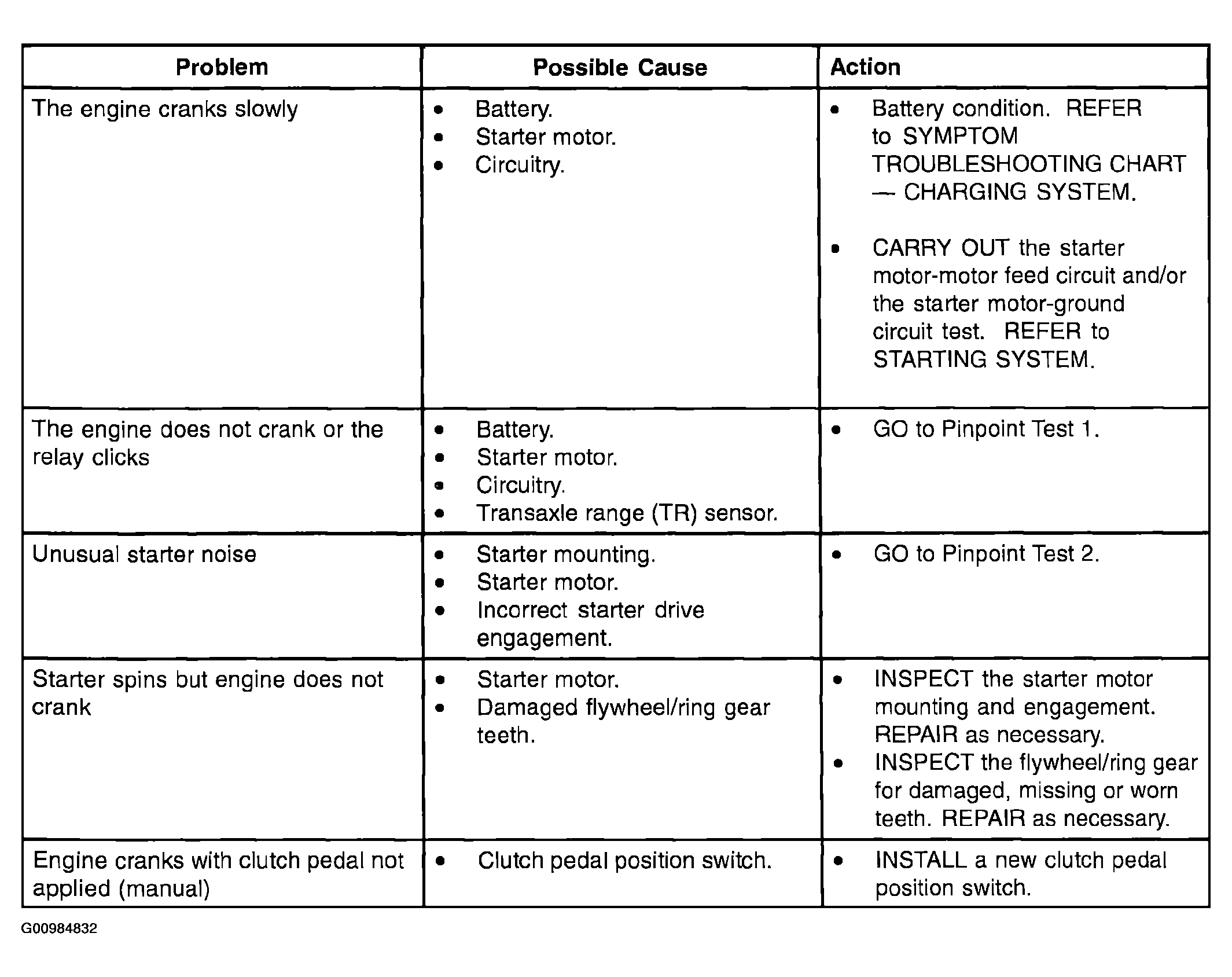

Fig 1: Symptom Troubleshooting Chart - Starting System
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
