Test 9: Fuel Line/Fuel Pressure Hold Inspection
Test 9: Fuel Line/Fuel Pressure Hold Inspection

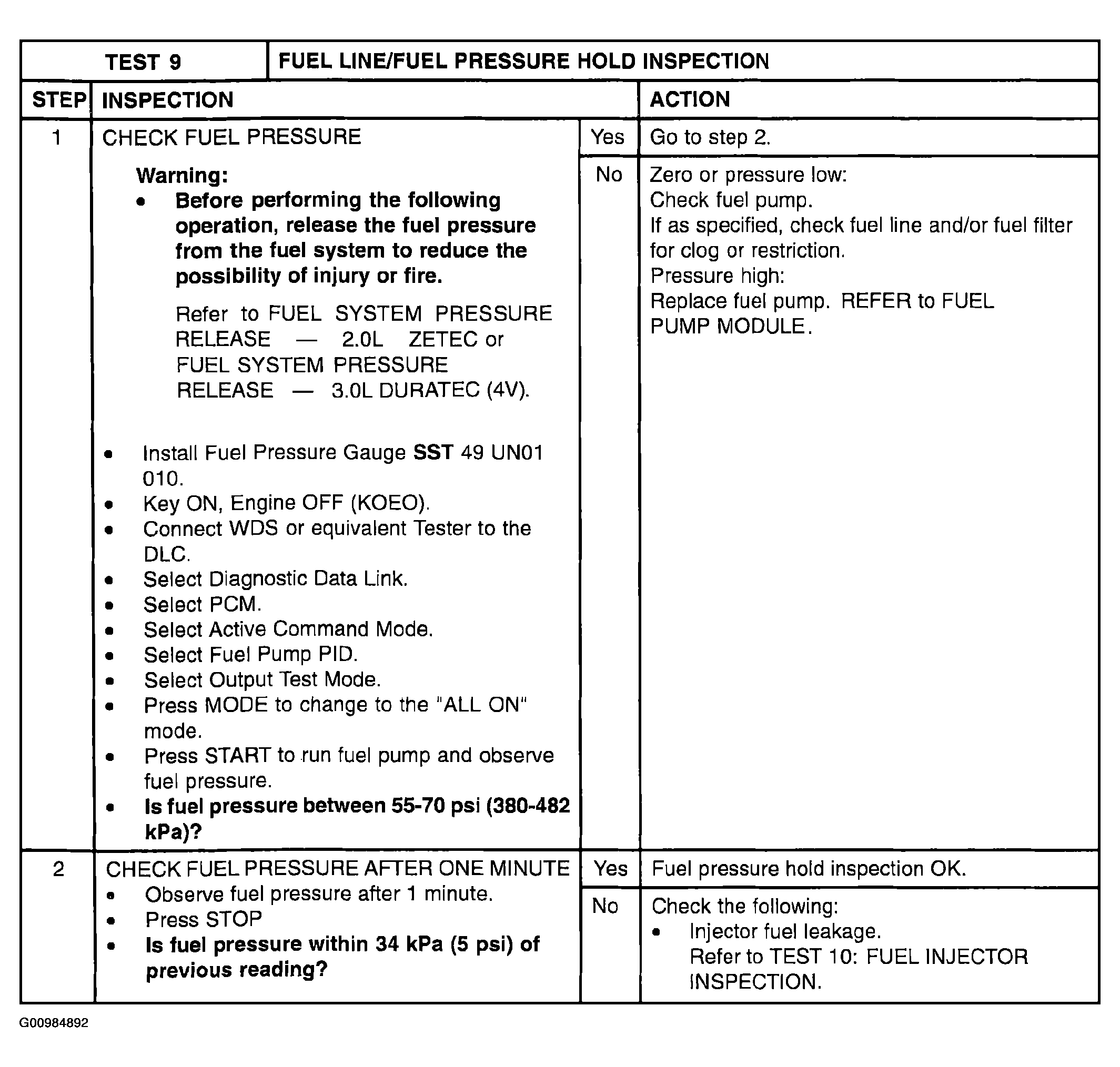

Fig 1: Test 9: Fuel Line/Fuel Pressure Hold Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
