DTC P0172, P0175: Adaptive Fuel Control

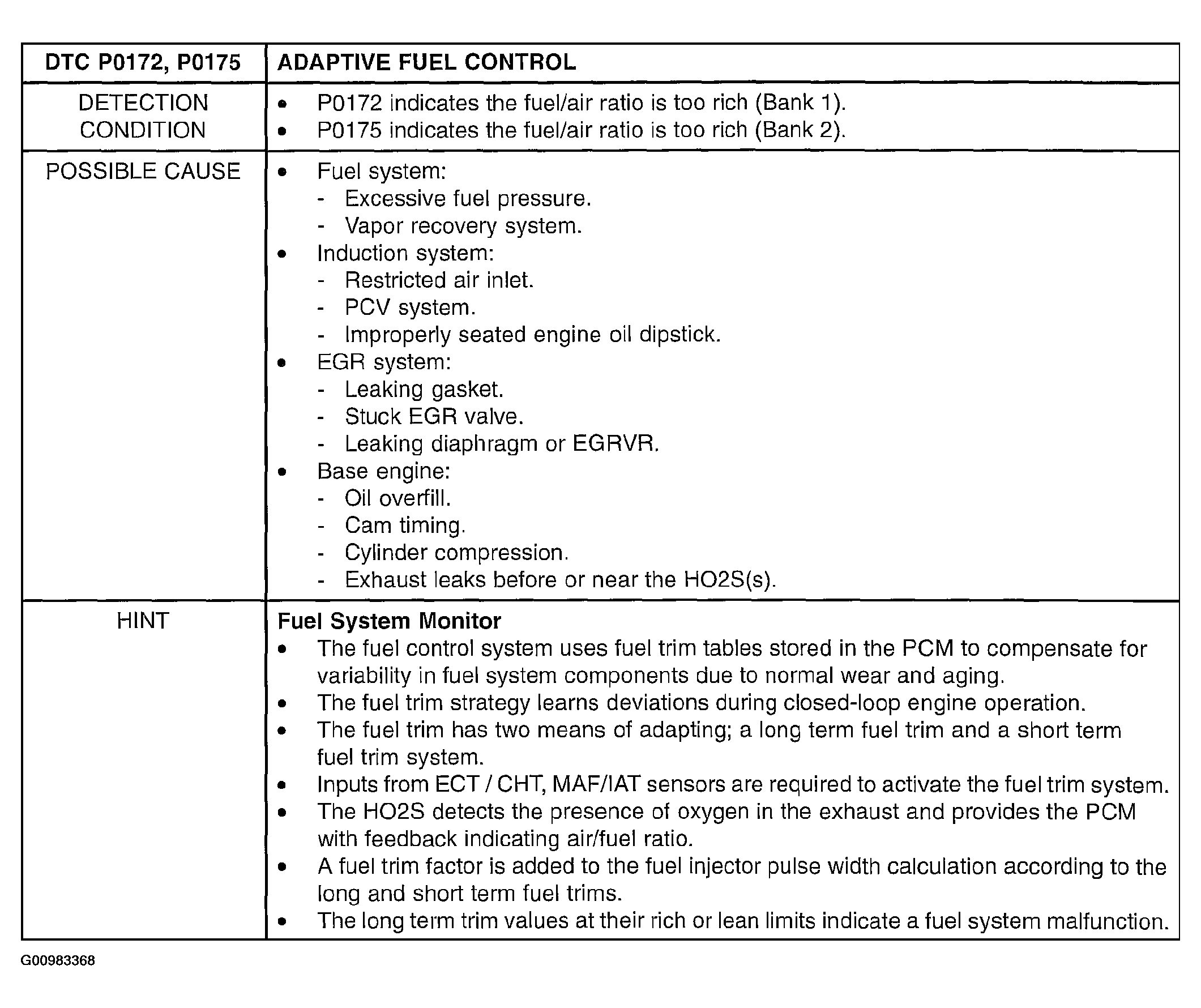

Fig 1: DTC P0172, P0175 Adaptive Fuel Control: Detection Condition, Possible Cause & Hint

Courtesy of MAZDA MOTORS CORP.

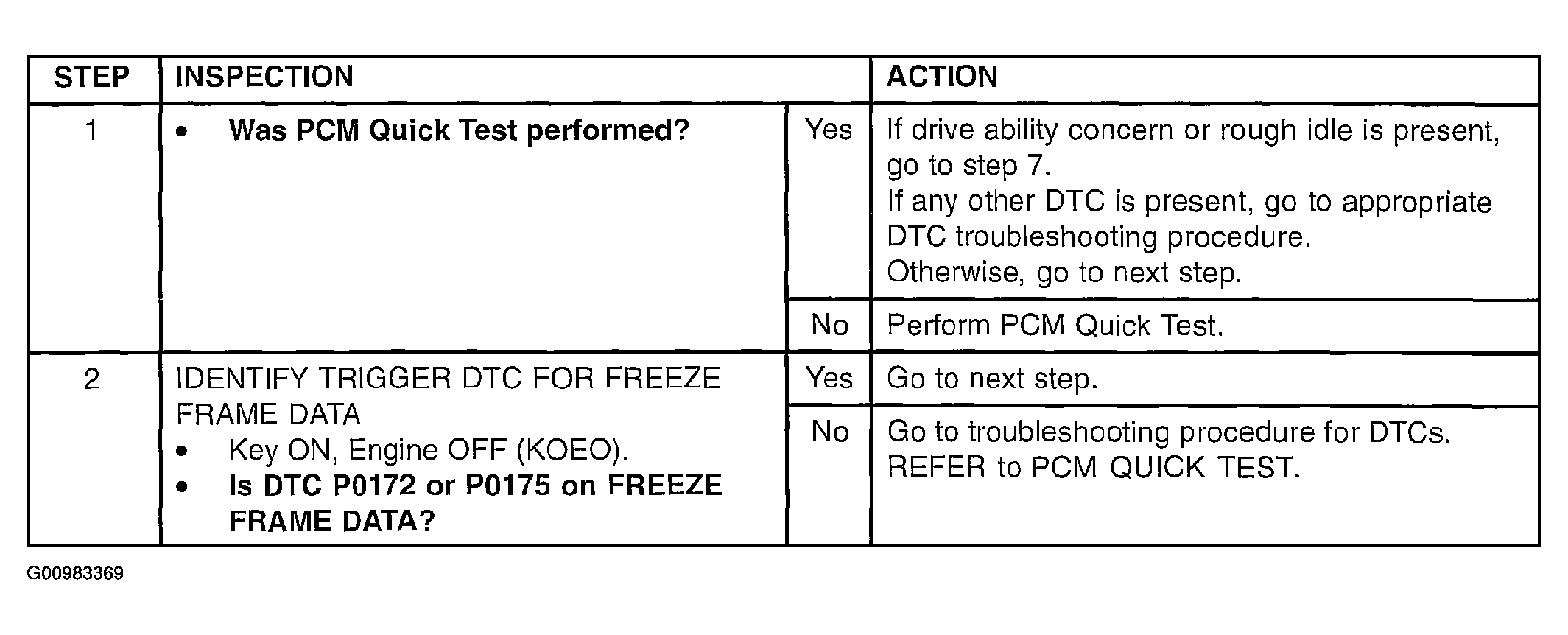

Fig 2: DTC P0172, P0175 Adaptive Fuel Control: Inspection (Step 1-2)

Courtesy of MAZDA MOTORS CORP.

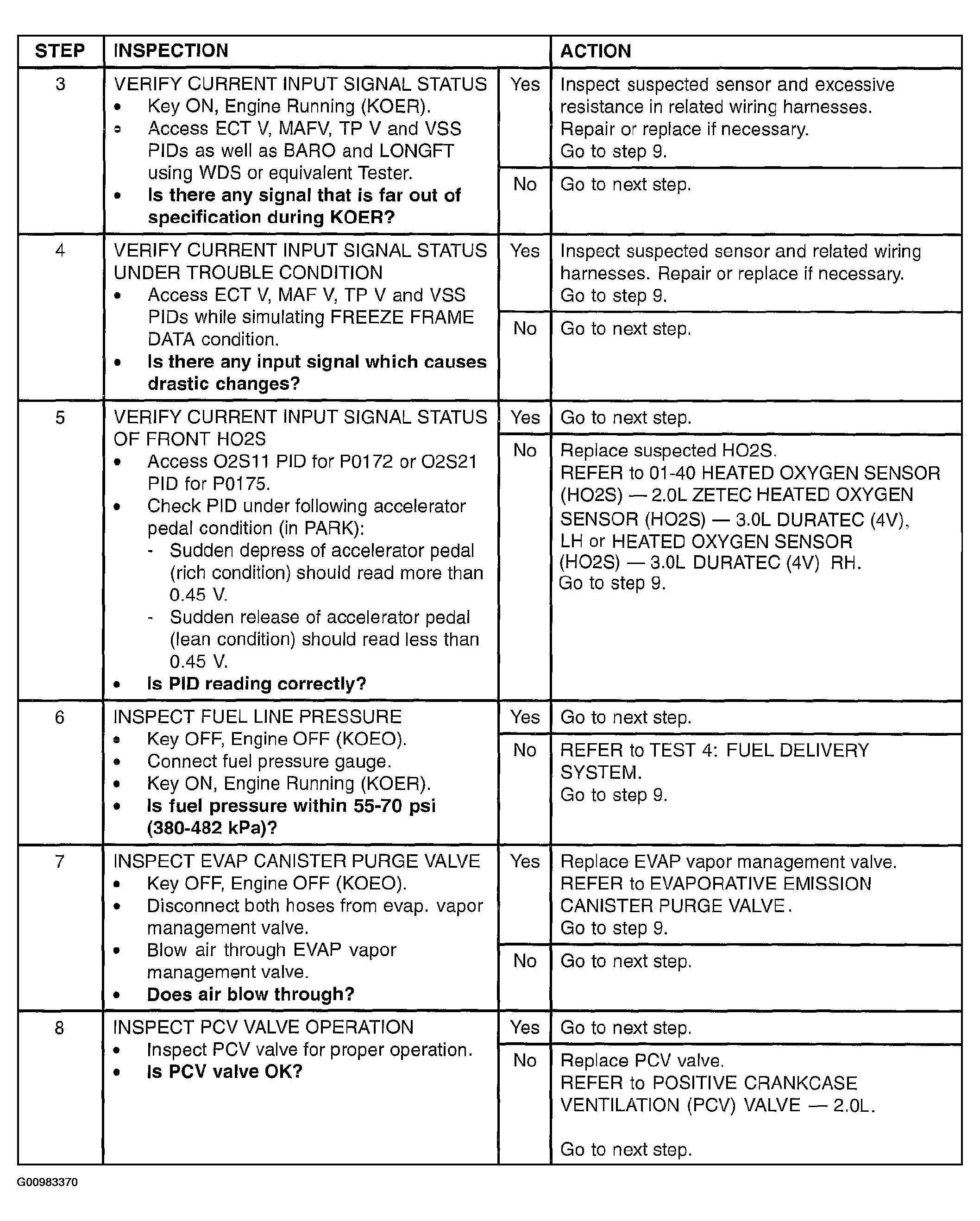

Fig 3: DTC P0172, P0175 Adaptive Fuel Control: Inspection (Step 3-8)

Courtesy of MAZDA MOTORS CORP.

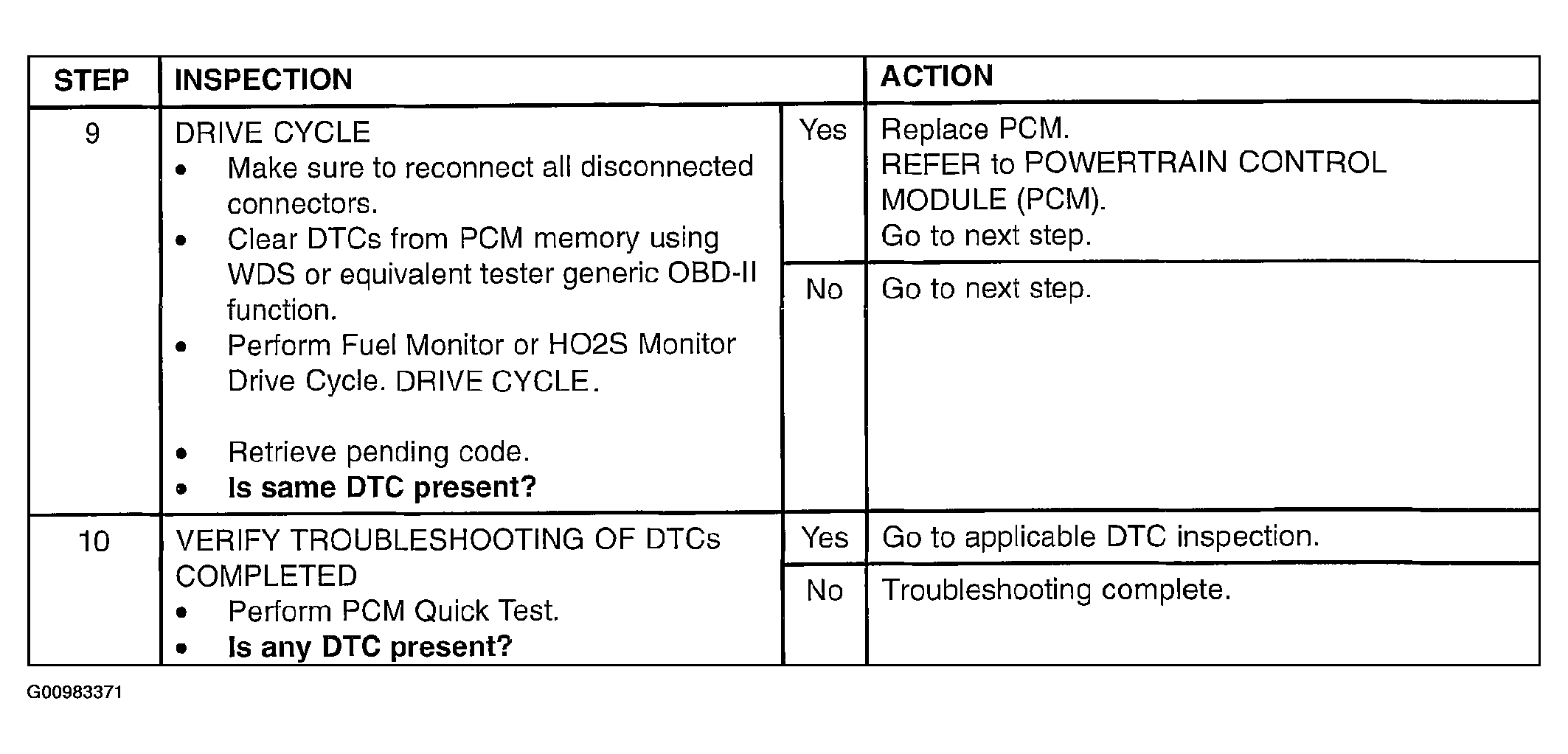

Fig 4: DTC P0172, P0175 Adaptive Fuel Control: Inspection (Step 9-10)

Courtesy of MAZDA MOTORS CORP.
