Fuel Odor In Engine Compartment

Fig 1: Chart 17 Fuel Odor In Engine Compartment: Description

Courtesy of MAZDA MOTORS CORP.

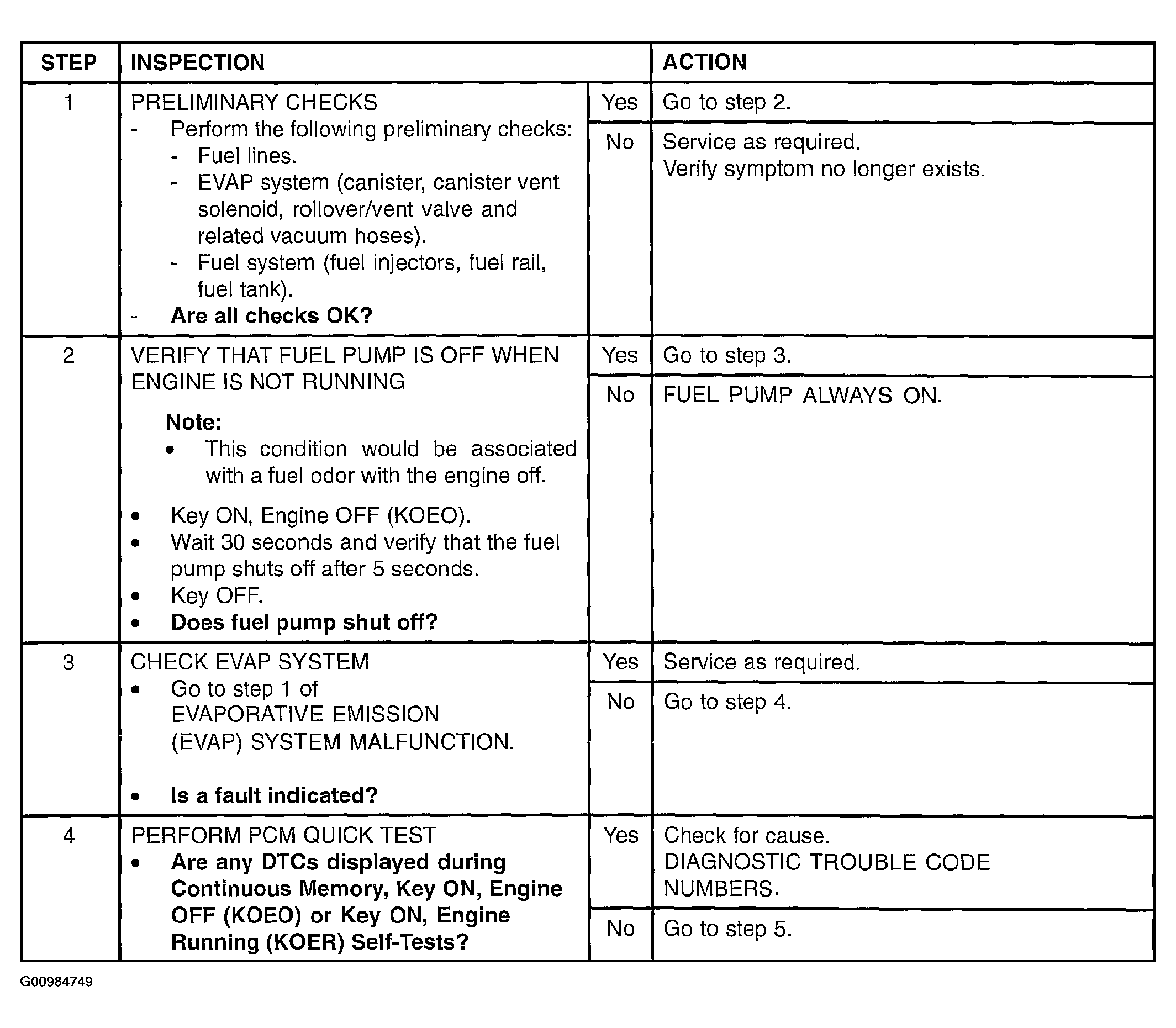

Fig 2: Chart 17 Fuel Odor In Engine Compartment: Inspection (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

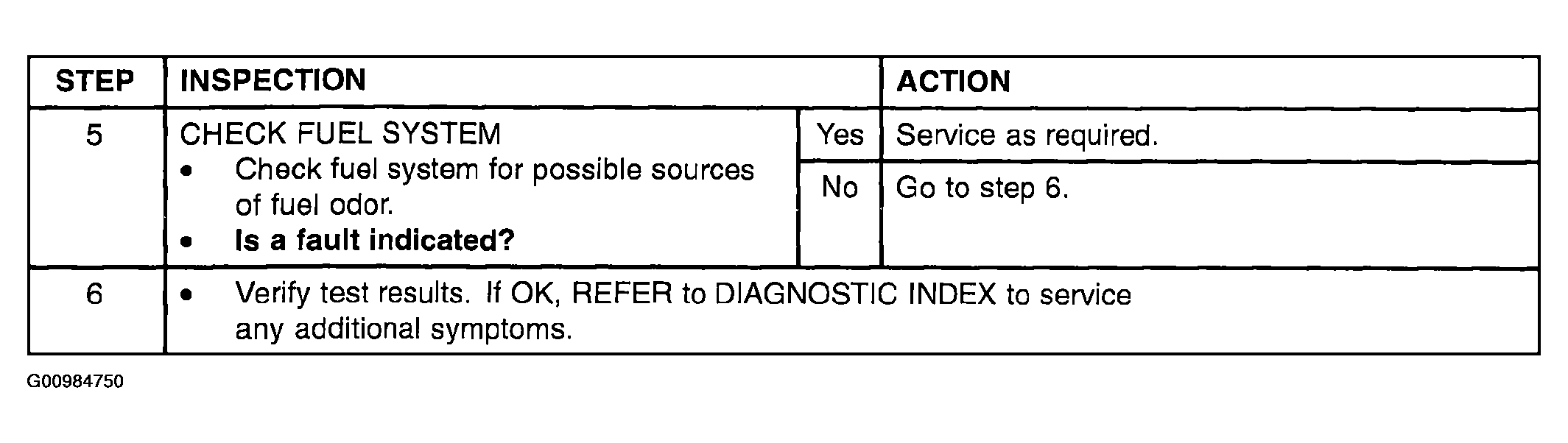

Fig 3: Chart 17 Fuel Odor In Engine Compartment: Inspection (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.
