Pinpoint Test 3: Unable To Refuel (ORVR)

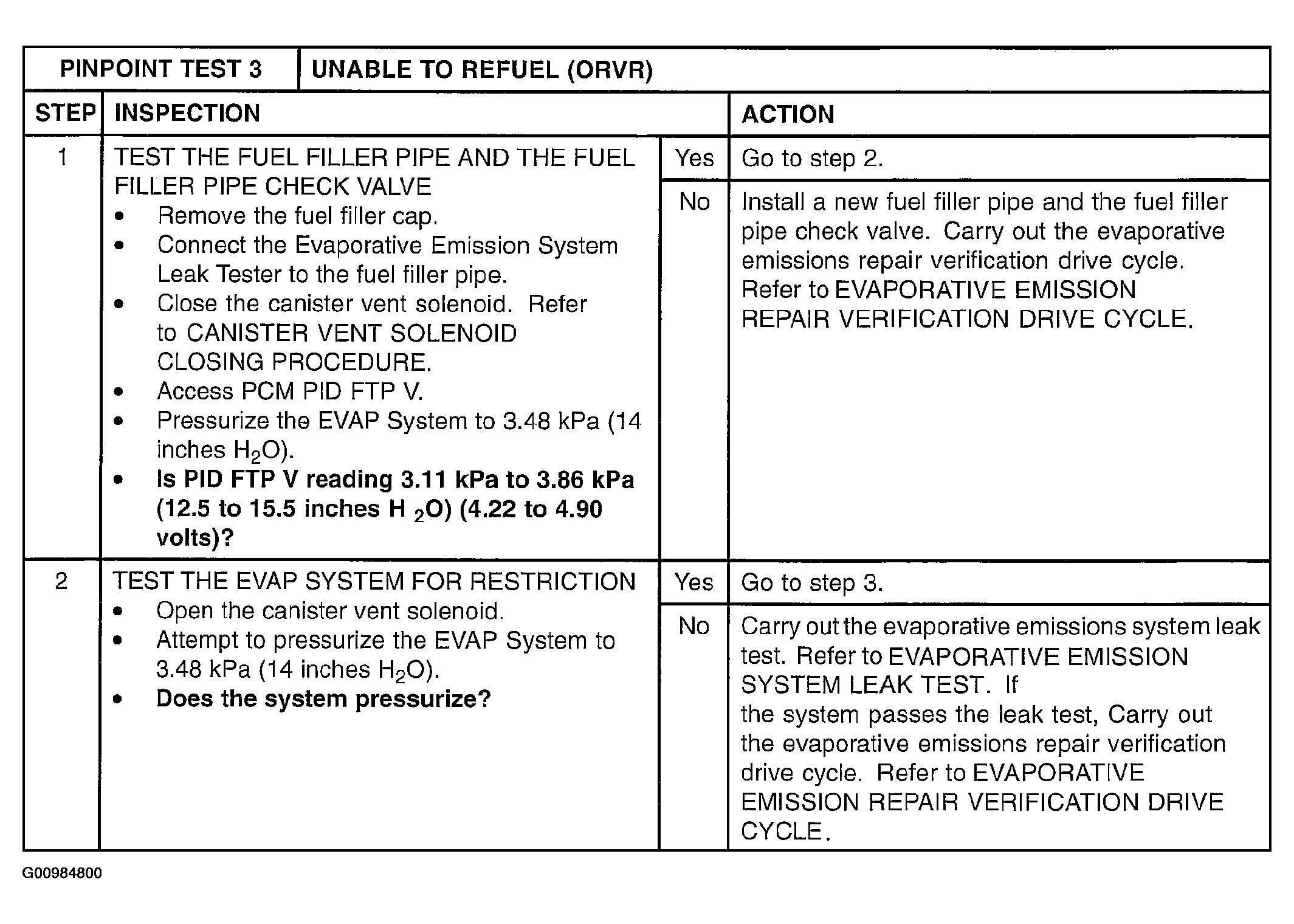

Fig 1: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

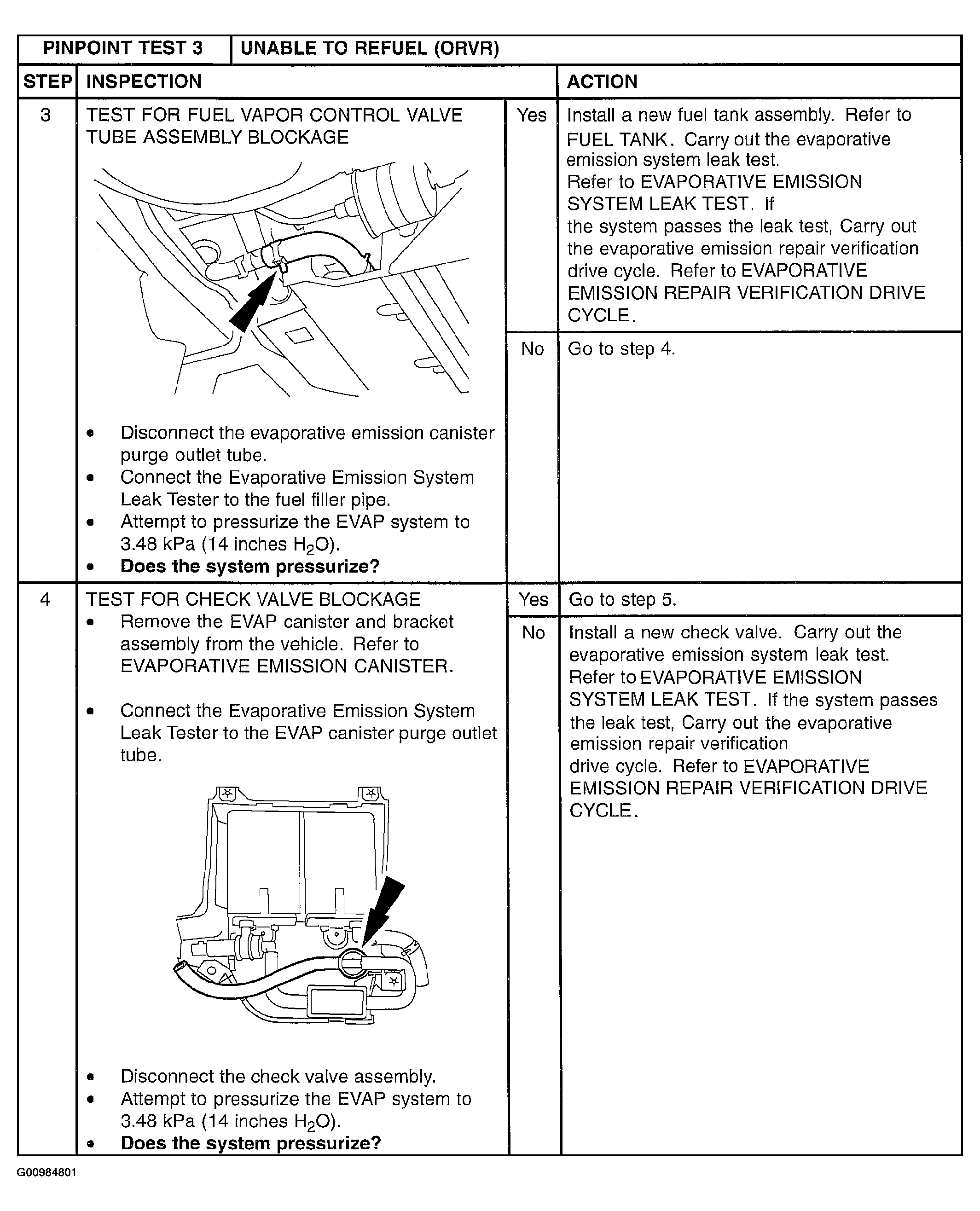

Fig 2: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

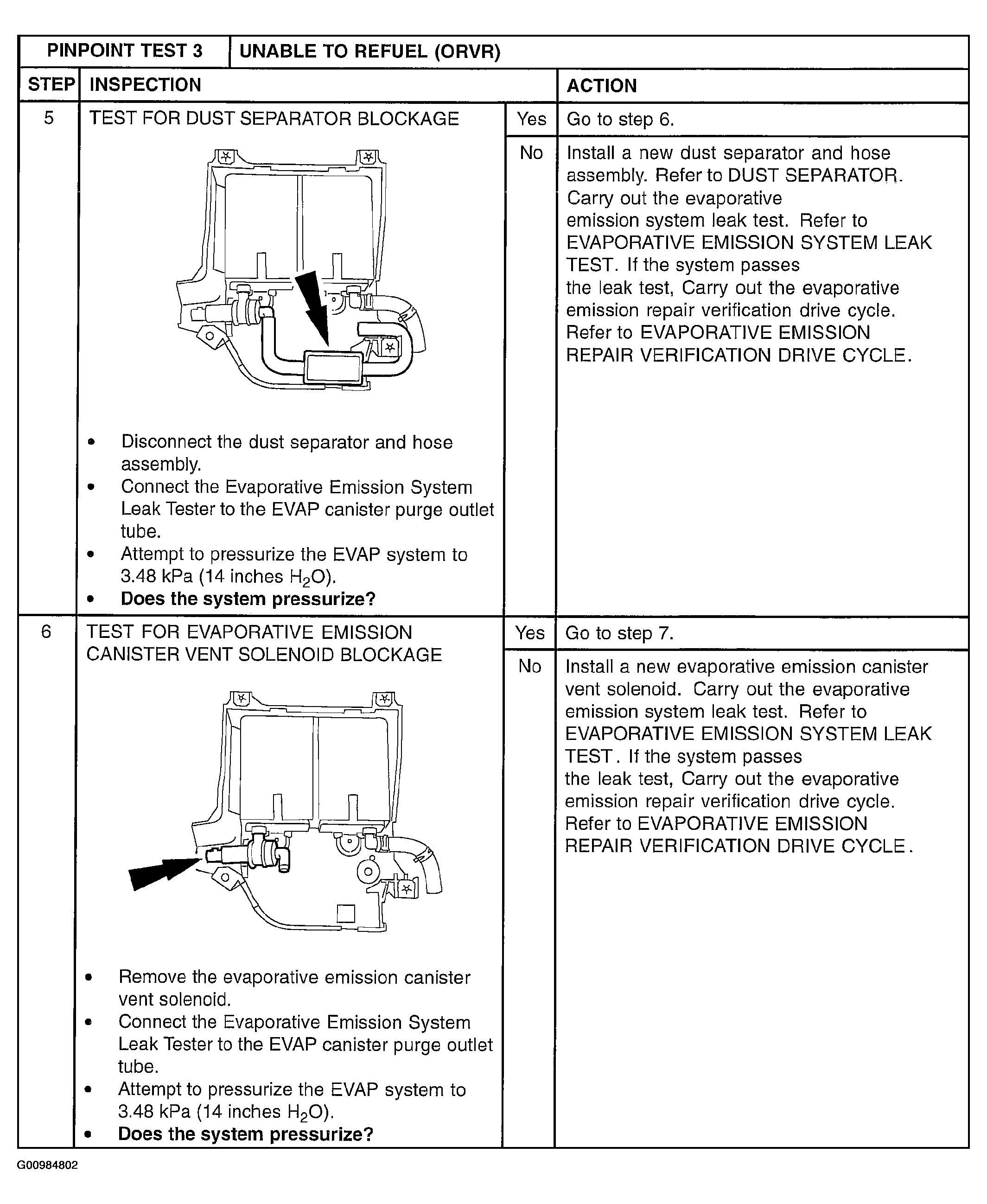

Fig 3: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

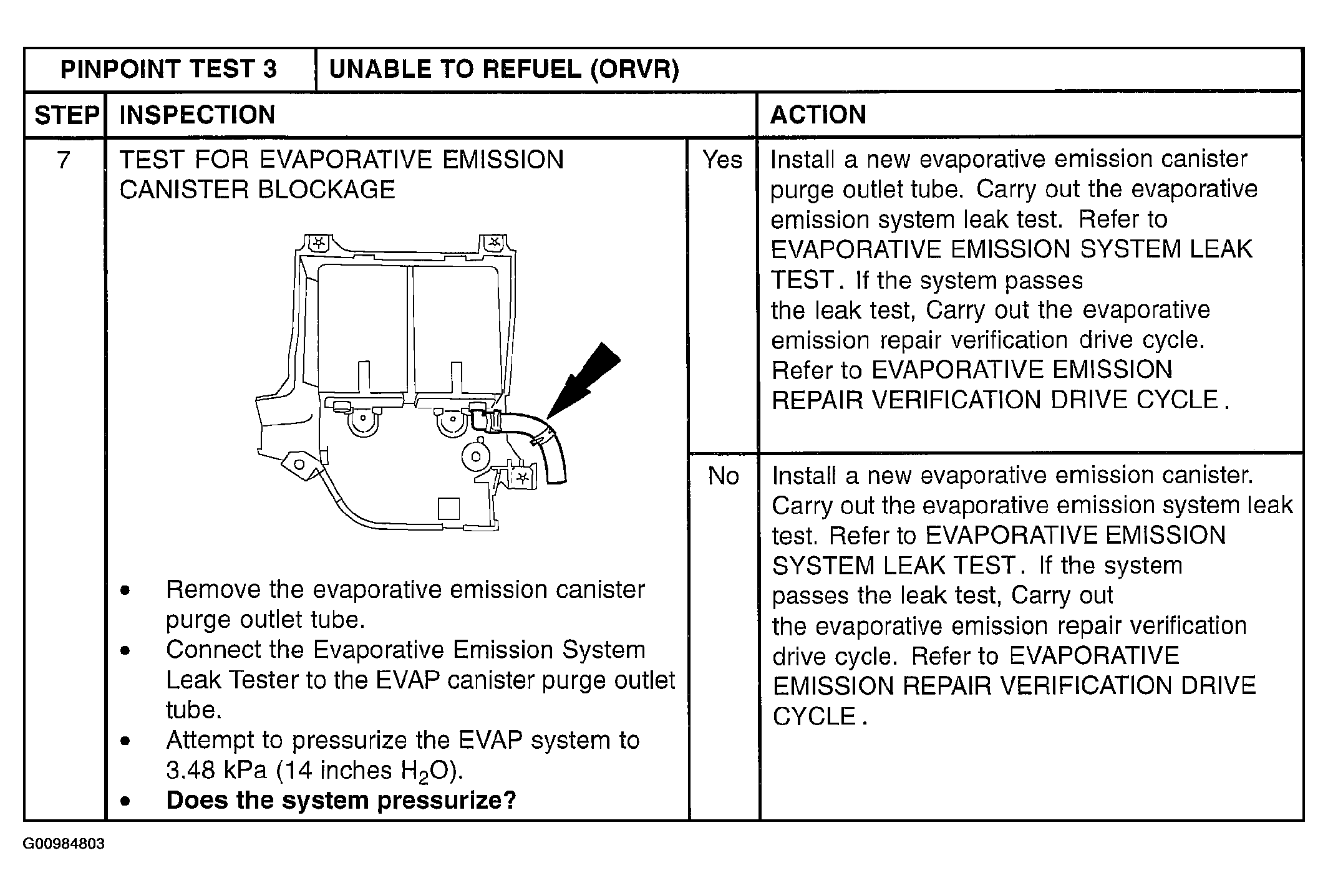

Fig 4: Pinpoint Test 3: Unable To Refuel (ORVR): Inspection (Step 7)

Courtesy of MAZDA MOTORS CORP.
