Test 11: EGR Valve
Test 11: EGR Valve

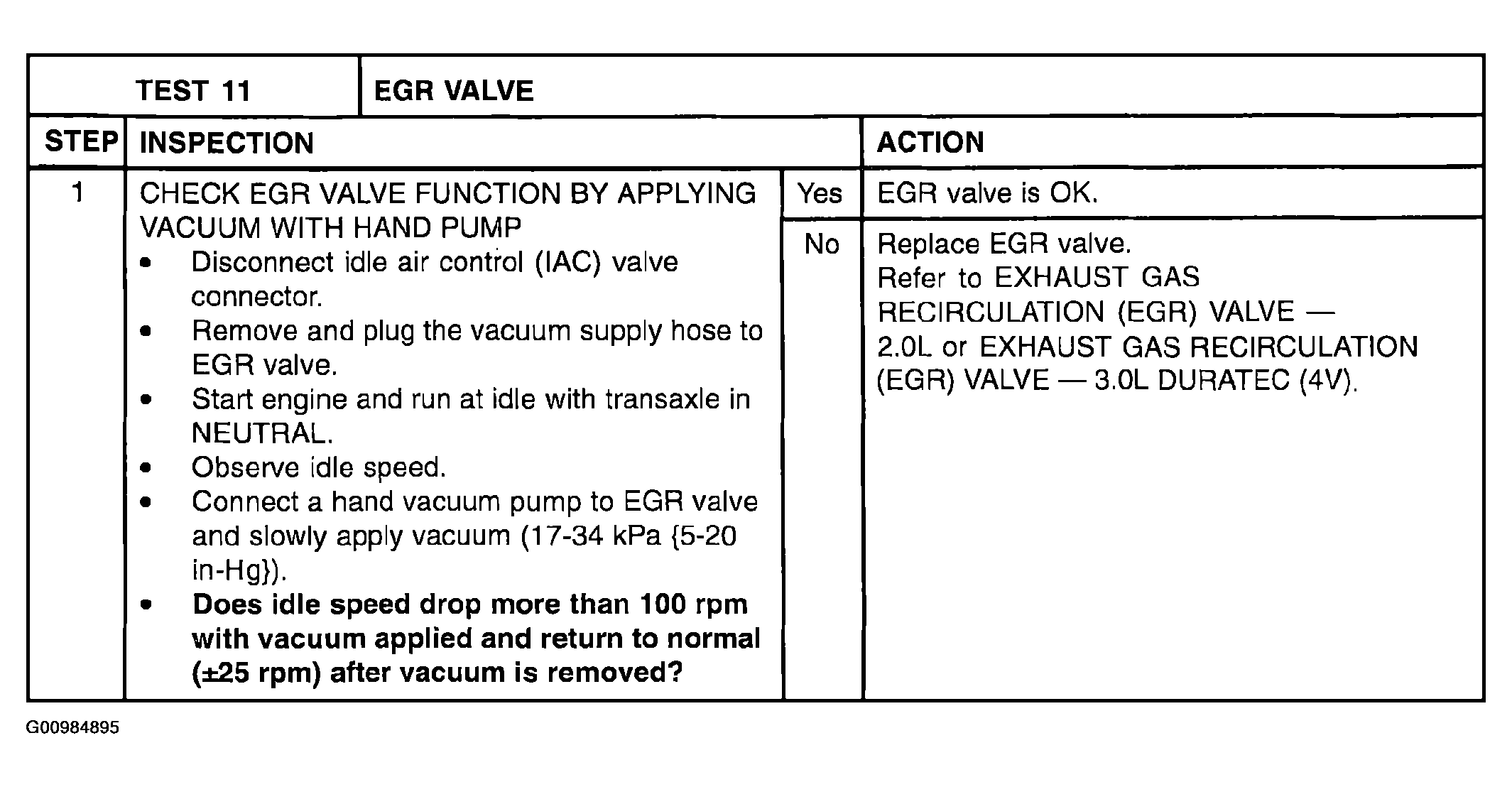

Fig 1: Test 11: EGR Valve: Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
