Test 6: Pcm Power Relay
Test 6: Pcm Power Relay

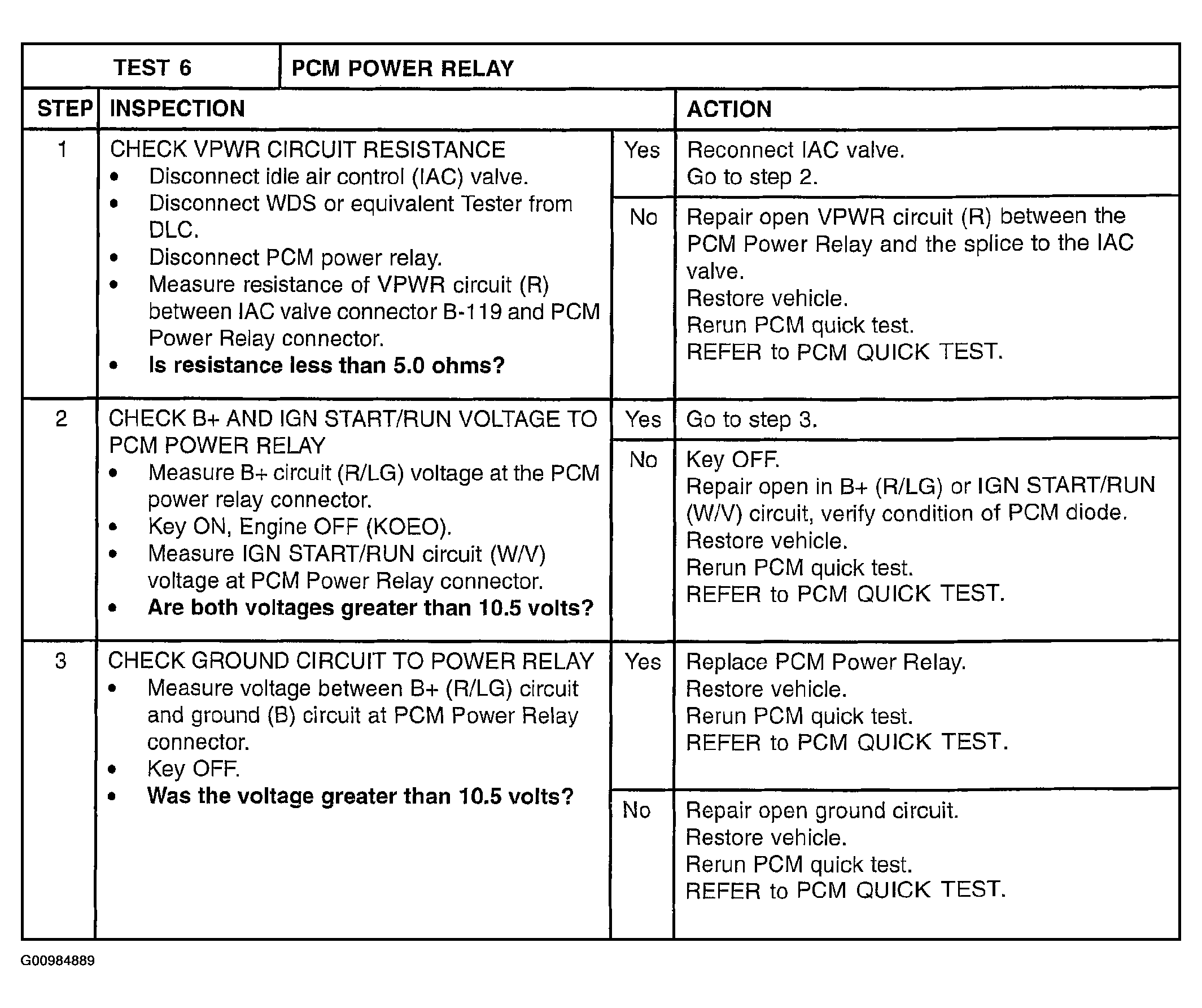

Fig 1: Test 6: PCM Power Relay: Inspection
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
