Fluid Pump Assembly Components

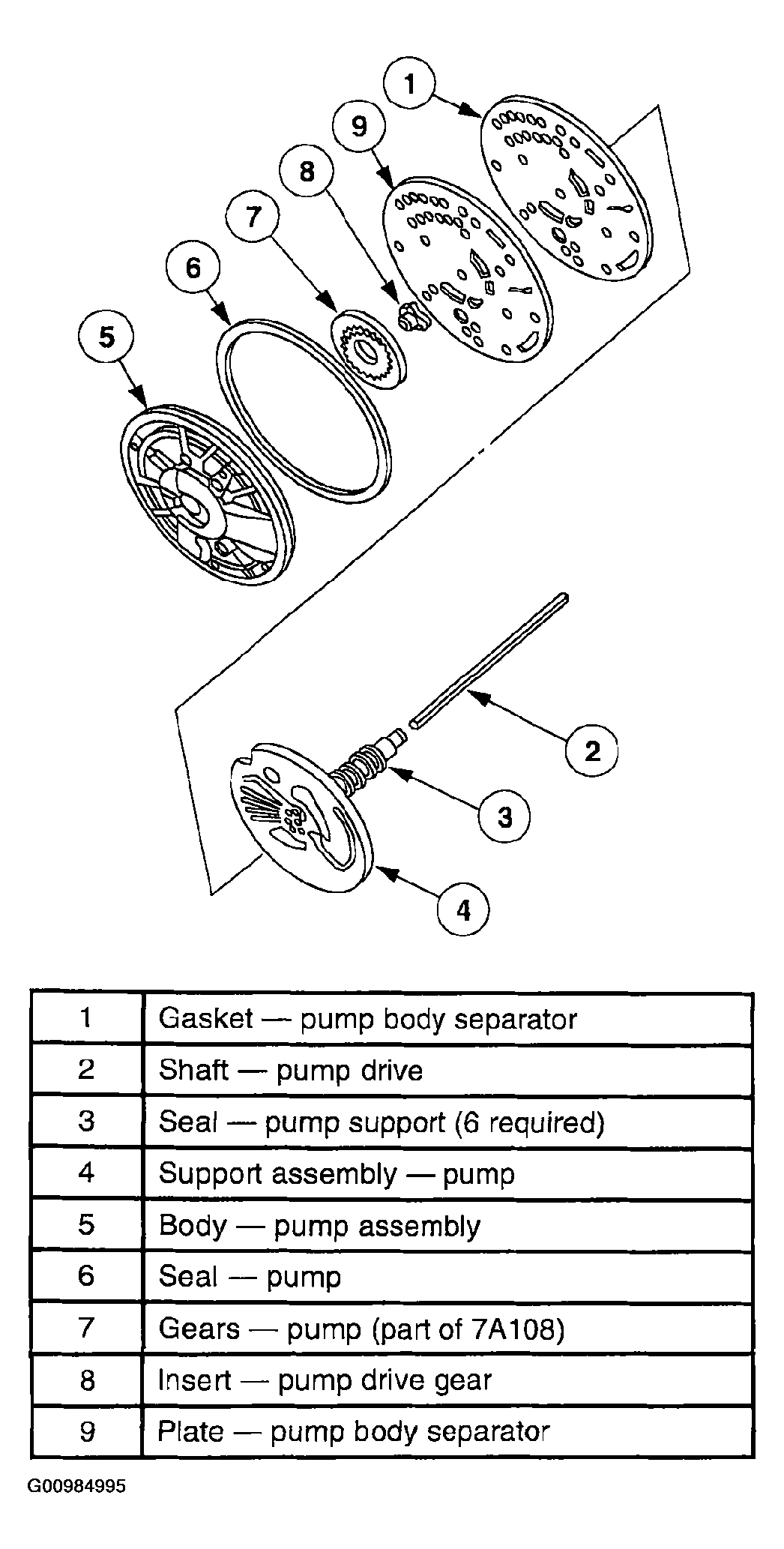

Fig 1: Identifying Fluid Pump Assembly Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
